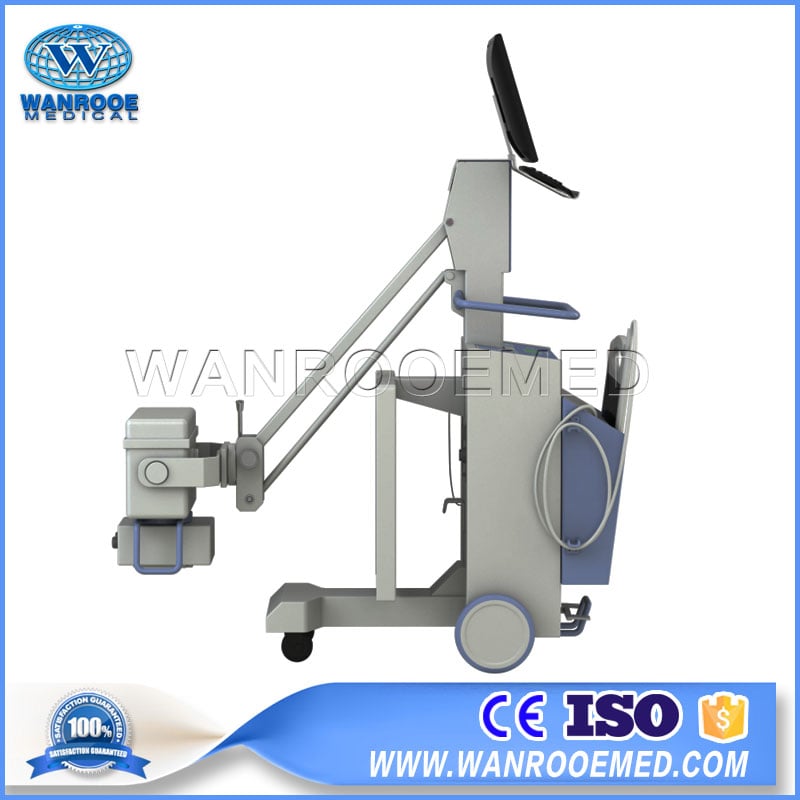

Vet1010 Medical Portable Digital Mobile DR System Animal X-ray Machine For Swine Sheep Cattle

  • Product Description
  • Technical Parameters
  • Video

Animal X-ray Machine, Vet X Ray Machine, PET X Ray Machine, Digital X Ray Machine, Portable X Ray Machine

Standard configurations:

1. Combined high-frequency high-voltage X-ray generator and high-frequency

inverter power supply (5kW, 120kV, 103mA, 50 kHz) ???????one set

2. New mobile X-ray photography mainframe ?????????????one set

3. Mobile X-ray photography control system ???????????????one set

4. Rotating beam limiting device ?????????????????????????one set

5. Remote control ??????????????????????????????????????one set

6. Wire Flat Panel Detector ??????????????????????????????one set

7. FPD transformed Box ?????????????????????????????????one set

8. Integrated workstation ????????????????????????????????one set

9. Spare parts (See spare parts list for detail information) ???several

1010 Mobile Vet Table

Usage:

The machine is combined high-frequency X-ray photography diagnostic?equipment. It is?specially designed for radiography dept in vet hospitals or clinics, make radiography on vet?bodies, such as head, limbs, chest, and spine.

Specifications:

Power Output: 5KW/3.5KW/2.5KW

Main Inverter frequency: 50 KHz

X-ray Tube: fixed anode focus: 1.5 (X-ray tube for high frequency)

Tube Voltage: 40kV~~120KV (interval 1KV)

Power Supply: 220V±10%?50Hz±10% Inner-resistance ?1.0?

Operation Method: Wire/wireless control

Digital Imaging System

Option1: Venu 1417P Wire FPD

High performance portable static flat panel detector, 14?x17?, have Sync-shot function

Specifications:

GOS+A-Si FPD

Vision Size: 14?x17?

Pixel Matrix: 2304×2800

Pixel Size: 150?m

Space Resolution: 3.3Lp/mm

Output grayscale: 14bit

Option2: Venu 1717M wire FPD

Pixel Size: 139?m

Vision Size: 17?x17?

Space Resolution: 3.6Lp/mm

A/D transfer: 14bit

Features:

1. With compact appearance, flexible movement

2. With high-frequency inverter to emit high-quality X-ray and low dose on skin,?and ensure excellent definition and contrast of pictures

3. With techniques of KV analog closed-loop control, mAs digital closed-loop?control and micro-processing real-time control to ensure precision and?repeatability of the dose.

4. With kV, mAs two button adjustment, LCD display, multifunction of safety?guard.

5. With 50 preset exposure programs, and can be modified and stored by the?user for convenient operation.

6. With a high-quality knockdown X-ray generator to reduce irradiation, it is?much safer to the environment and operator.

7. With fault automatic protection setting and fault alarming display

8. The system can keep parameters automatic, in case of losing data.

9. With a rotating beam limiting device to adjust the X-ray field and angle, so it?can ensure accurate radiography results.

10. With high kV function, it has a wide using range and good effect of?photography.

11. Manual control and remote control are used to expose. Wireless remote?exposure control can penetrate barriers, which makes operation more?convenient.

12. Support to read barcode, easy to register patients??data

13. Perfect Image Stitching function, different resolution can self-adapted

14. Imaging acquisition software for vet

15. Professional operation process, support Dicom 3.0 standard, accurate image processing, report come out.

Vet1010 Medical Portable Digital Mobile DR System Animal X-ray Machine For Swine Sheep Cattle

Tube Current: 25mA~~103mA

40~49kV 103mA 1~180mAs

50~59kV 77mA 1~140mAs

60~69kV 64mA 1~125mAs

70~79kV 55mA 1~110mAs

80~89kV 49mA 1~100mAs

90~99kV 44mA 1~80mAs

100~109kV 32mA 1~63mAs

110~120kV 25mA 1~50mAs

MAs: 1.0~180mAs (46steps)

Tube Current: 25mA~~63mA

40~49kV ?63mA ?1~125mAs

50~59kV??60mA??1~110mAs

60~69kV ?45mA ?1~90mAs

70~79kV ?40mA ?1~80mAs

80~89kV ?36mA ?1~71mAs

90~99kV ?32mA ?1~63mAs

100~110kV ?20mA??1~40mAs

MAs: 1.0~180mAs (46steps)

Tube Current: 25mA~~50mA

40~49kV ?50mA ?1~160mAs

50~59kV ?42mA ?1~160mAs

60~69kV ?36mA??1~140mAs

70~79kV ?31mA ?1~125mAs

80~89kV ?28mA ?1~100mAs

90~100kV ?25mA??1~80mAs

MAs: 1.0~160mAs (45steps)
