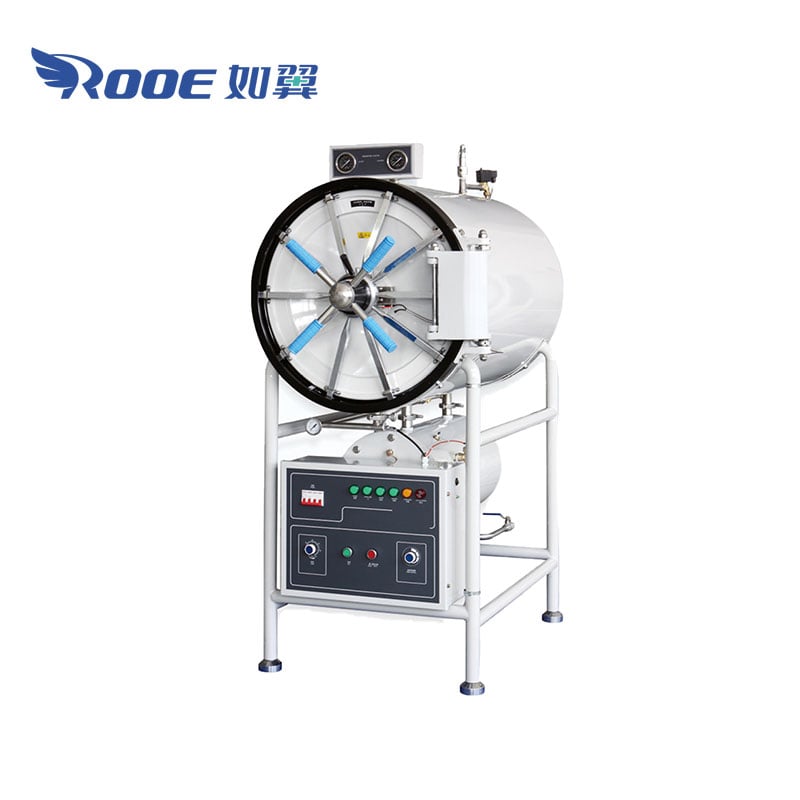

WS-YDA Stainless Steel Laboratory Horizontal Autoclave CSSD Autoclave

Horizontal autoclave, which adopted the way of gravity exchange to releaseing the cold air from the chamber more completely to ensure the reliable sterilization. The control system automatically adjust the steam inlet and outlet according to chamber temperature during sterilzation. This unit ideal equipment for clinics, scientific research institutes and other organizations to sterlize surgical instruments,fabric glasss,culture medica etc.

  • Product Description
  • Technical Parameters
  • Video

Stainless Steel Laboratory Horizontal Autoclave CSSD Autoclave Features:

1.Sterilizing course automatic sterilization controlled,easy to operate.
2.With drying function,suitable dressing drying.
3.With over-temperature,over-pressure auto-protect device.
4.The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can’t be start on if the door doesn’t close well.
5.The safety value will be open automatically when the inner pressure over 0.24MPa,and the steam be exhausting to the water tank.
6.The power will be cut-off automatically,cut-off the water and alarm when the machine lacking water.
7.The chamber of the sterilizer is made of stainless steel

cylindrical autoclave,electric heating autoclave,steam heating autoclave,electric autoclave sterilizer,autoclave steam sterilizercylindrical autoclave,electric heating autoclave,steam heating autoclave,electric autoclave sterilizer,autoclave steam sterilizercylindrical autoclave,electric heating autoclave,steam heating autoclave,electric autoclave sterilizer,autoclave steam sterilizer





Technical Data  Model WS-150YDA WS-200YDA WS-280YDA WS-400YDA WS-500YDA
Sterilizing chamber volume 150L
(φ480×1000mm)
200L
(φ515×1000mm)
280L
(φ600×1000mm)
400L
(Φ700×1100mm)
500L
(Φ700×1300mm)
working pressure 0.22MPa
working  temperature 134ºC
Adjustment of temperature 40ºC – 134ºC
Time of sterilization 0-60 min
Time of drying 0-60 min
Heat average ≤± 2ºC
Power 9KW/380V 50Hz 9KW/380V 50Hz 12KW/380V 50Hz 18KW/380V 50Hz 18KW/380V 50Hz
Dimension 1400×600×1300 1400×670×1650 1400×770×1780 1430×880×1830 1800×900×1820
Transport dimension 1550×750×1850 1560×820×1850 1680×920×2100 1800×1050×2100 1850×1050×2100
 G.W/N.W 320/240 KG 350/260 KG 465/365 KG 530/420 KG 580/470 KG
