PLX100-D05DR High Frequency Veterinary X Ray Radiograph For Dogs/Cats

Designed to provide veterinarians with portability and ease of imaging through its advanced features and user-friendly interface. Easy to carry, easy to handle and lightweight, easy to carry and use in a variety of clinical Settings.Meet the growing diagnostic needs for prevention and treatment with digital medical, dental and veterinary imaging solutions.

  • Product Description
  • Technical Parameters
  • Video

High Frequency Veterinary X Ray Radiograph For Dogs/Cats Features:

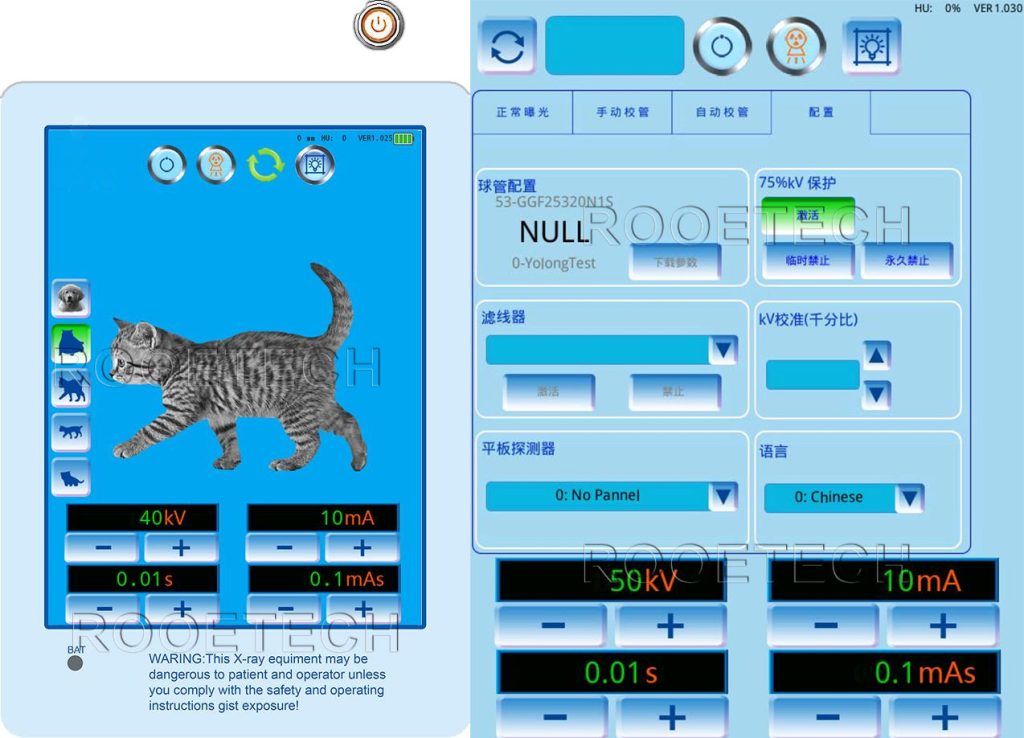

1. Touch screen interface with APR setting, easy to operate.

2. 8KW high power output, covering all kinds of animal X-ray phase formation

3. Three exposure control methods. remote control, hand brake and screen control.

4. Complex image processing facilitates more accurate diagnosis

5. Optional one-piece suitcase for easy transportation and carrying.

6. Designed to provide maximum mobility and flexibility for animal X-ray examination.

veterinary x ray,high frequency x ray,radiograph for dogs

veterinary x ray,high frequency x ray,radiograph for dogs

Model PLX100-D05DR
Voltage AC220V ± 22V
Generator Output Power 8kW (Support customization)
kV Range 40~110kV
mA Range 20~100mA
mAs Range 0.2-200mAs
Working Frequency ≥40kHz
Exposure time 0.01S~4S
X-ray tube Anode heat storage 56KHU
Focus 1.8mm
Inherent filtration 1mm Al/75Kv
Scintillator CSI
Wire Flat Panel Detector Pixel Matrix 3328*3328
Pixel Pitch 127um
A/D Conversion 14bit
Dimension 15.6inch
All-in-one PC Memory 8G
Disk Capacity 512G
Resolution 1920*1080
Net Weight 70KGS
Laptop CPU Intel Core i5
Optional Memory capacity 4GB
Mobile Machine Frame Max.Height 200cm
Width 66cm
SID 50~200cm
