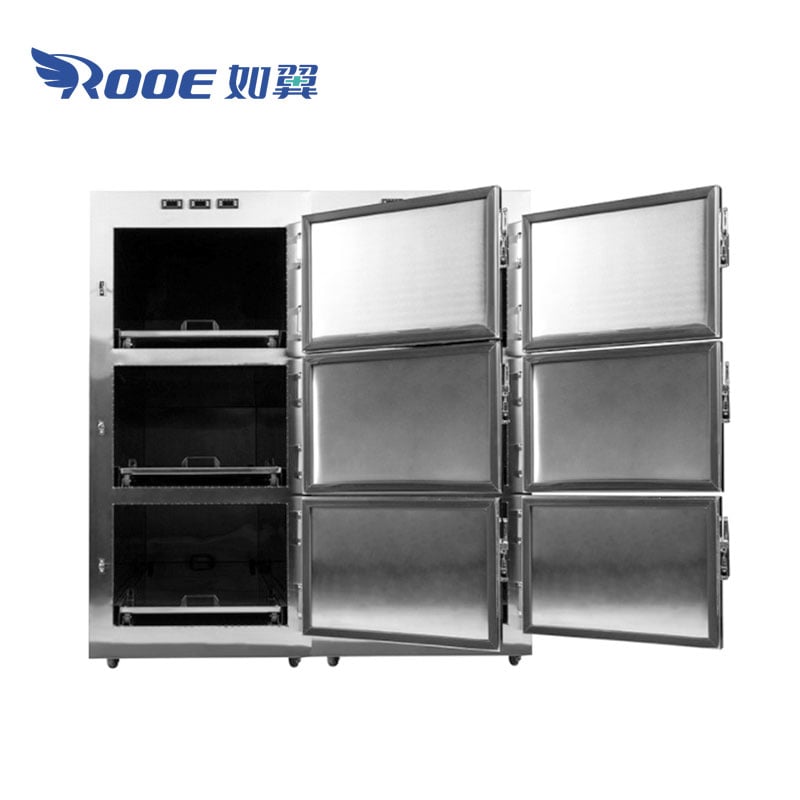

6 Mortuary Cabinet 6 Chamber Corpse Freezer Description:
Mortuary cabinets are low temperature refrigerated cabinets that are used to keep dead bodies for short or long time. These units are widely used at hospitals, railways, airports, disaster camps, and army, etc. Usually, the morgue cooler temperature of mortuary cabinet remains between -10℃ to 5℃ but in some cases freezing temperature can also be designed.
Our standard mortuary cabinets are available in six bodies; we also made customized units for larger sizes. These mortuary chambers are energy efficient and also provide excellent cooling performance anywhere they are used. Full body of corpse freezer inside and outside shell made of 201 stainless steel.
6 Mortuary Cabinet 6 Chamber Corpse Freezer Features:
1. Corpse freezer/corpse cabinet is a series of products used by hospitals, funeral homes and autopsy departments to store corpses. The GA306 mortuary cabinet holds up to six cadavers. Also available in 1/2/3/4/6/8/9 airframe sizes.
2. The inner shell of the refrigerator is made of high quality stainless steel, with strong corrosion resistance and beautiful and luxurious appearance.
3. The insulation layer is made of imported polyurethane foam material, which has high heat resistance to cold loss.
4. Safety door lock is designed to prevent arbitrary opening. Encryption door seam structure, door seal adopts high-quality rubber strip, strong anti-aging ability, can prolong the service life of door seal.
5. The refrigeration system of each room is controlled independently, and the temperature can be adjusted without interference. Double side cooling reduces cooling time and uniform temperature. The temperature range of each cooling system can be adjusted individually, and the temperature of each room is independent. Each chamber has a compressor, and the failure of one compressor does not affect the operation of other chambers.
6. Detachable stainless steel tray, used to store the corpse, convenient to push and pull the corpse, suitable for autopsy operation table. The bottom of the tray has a row of small rollers, easy to move the tray. Sliding system with telescopic outlet for full extension and mute. Each pallet can carry up to 150 kg.
7. Adopt high precision computer temperature control system to keep the internal temperature stable accurately; Three digit high brightness digital display, temperature set in the range of 5ºC to -10ºC, temperature display accuracy 0.1ºC, resolution 0.1ºC, adjust increment 0.1ºC; Unique high resolution temperature calibration function, set point adjustable calibration, calibration range of 2 to 8ºC, calibration increment of 0.1ºC.
8. Imported temperature record printing system, four precision temperature sensors in the box (two sensors in some systems), two temperature indicators outside the box, used to display the temperature of the upper and lower points, for users to monitor the temperature of each working state in the box. Each door is equipped with digital screen, easy to distinguish the temperature.
9. Intelligently control the fan forced cold air circulation system to ensure the uniform temperature in the box. Copper evaporator cooling pipe, to ensure long service life.
10. Adopt domestic famous brand Arnoldan high efficiency compressor, environmental protection fluorine free refrigeration system, manufacture green products, create a green world.
Refrigerant: Environmental protection R134A.
11. Built-in lithium battery can keep the temperature display in the box, light and sound alarm for 72 hours after power failure. Unique power off memory function, large amount of information, temperature data permanent storage.
12. Triple alarm mode (sound buzzer alarm, light flashing alarm, optional remote alarm)
13. Seven system obstacle alarm: high temperature alarm, low temperature alarm, sensor fault alarm, open the door alarm, power alarm, low spare battery alarm, low voltage alarm
14. Each freezer will be equipped with 4 high quality universal wheels to ensure ease of movement.
Power supply 220-240V/ 50HZ-60Hz, can provide backup power supply (UPS) according to customer requirements.
Optional:
1. Stainless steel 201/304 material
2. Cabinet LED lamp, cabinet drainage system
3. Imported compressor SECOP
4. Inlet ventilation system
NOTE：Our suggestion, if ulta low-temperature, we recommend Danfoss compressor, if ordinary, Chinese brand will be enough.
