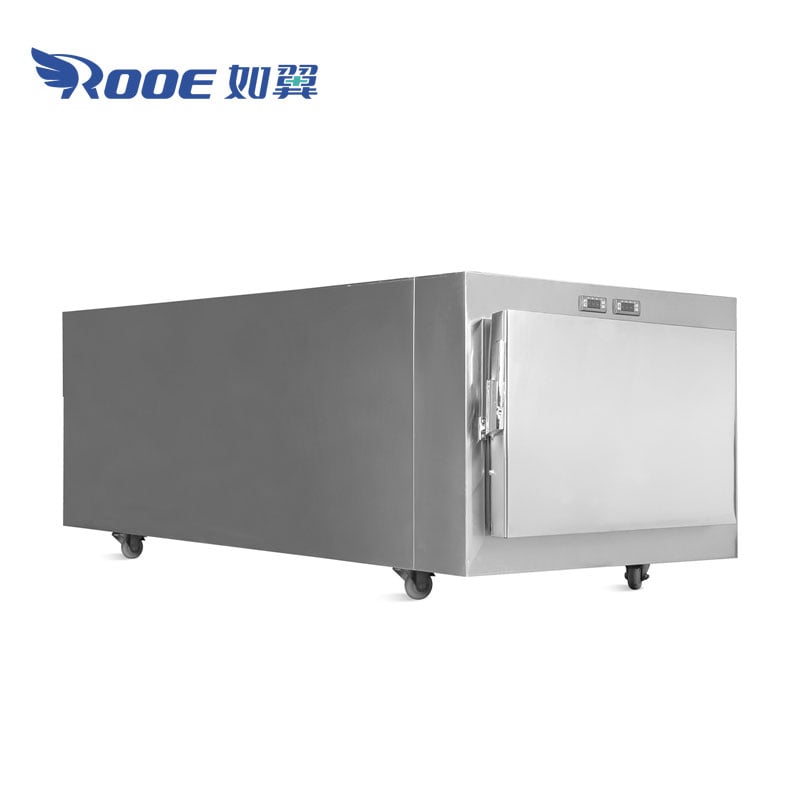

GA301 Single Body Cadaver Cold Storage Mortuary Body Fridges Manufacturers

Product Introduction:
Our mortuary refrigerators and freezers consist of walk-in, small door, forensic lab and cadaver lockers. Standard and custom fridge systems are designed to meet morgue and other facility needs.

  • Product Description
  • Technical Parameters
  • Video

Single Body Cadaver Cold Storage Mortuary Body Fridges Description:

Mortuary Body Fridges produced by our company are closed, with reasonable structure, beautiful shape, fast heat dissipation, low noise, less power consumption, long service life and other advantages. The temperature control of the refrigerator adopts microcomputer temperature controller, which has the advantages of high temperature measurement accuracy, wide temperature control range and intuitive digital display, and completely solves the problem of unknown temperature rise in the refrigerator. Morgue Refrigerator insulation layer with energy-saving and environmental protection of polyurethane a foaming, with good insulation performance; Cadaver Cold Storage has a double liner made of embossed aluminium and an outer layer of premium stainless steel. The evaporator of Mortuary Refrigerator Manufacturers is made of high-quality copper tube, and the refrigeration compressor is made of Arnoldan compressor. The external material of Refrigerator is stainless steel drawing plate, which is corrosion resistant and easy to clean. The GA301 cadaver freezer can hold one cadaver.Also available in 1/2/3/4/6/8/9 airframe sizes.

Single Body Cadaver Cold Storage Mortuary Body Fridges Features:

1. Corpse freezer/corpse cabinet is a series of products used by hospitals, funeral homes and autopsy departments to store corpses.
2. The inner shell of the refrigerator is made of high quality stainless steel, with strong corrosion resistance and beautiful and luxurious appearance.
3. The insulation layer is made of imported polyurethane foam material, which has high heat resistance to cold loss.
4. The door sealing strip adopts high-quality rubber strip, which has strong anti-aging ability and can prolong the service life of the door sealing strip.
5. The refrigeration system of each room is controlled independently, and the temperature can be adjusted without interference. The temperature range of each cooling system can be adjusted individually, and the temperature of each room is independent. Each chamber has a compressor, and the failure of one compressor does not affect the operation of other chambers.
6. Detachable cadaver tray, easy to push and pull cadaver. The bottom of the tray has a row of small rollers, easy to move the tray.
7. Safety door lock design prevents arbitrary opening.
8. Adopt high precision computer temperature control system to keep the internal temperature stable accurately; Three digit high brightness digital display, temperature set in the range of 5ºC to -10ºC, temperature display accuracy 0.1ºC, resolution 0.1ºC, adjust increment 0.1ºC; Unique high resolution temperature calibration function, set point adjustable calibration, calibration range of 2 to 8ºC, calibration increment of 0.1ºC.
9. Imported temperature record printing system, four precision temperature sensors in the box (two sensors in some systems), two temperature indicators outside the box, used to display the temperature of the upper and lower points, for users to monitor the temperature in the box of each working state. Each door is equipped with digital screen, easy to distinguish the temperature.
10. Intelligent control of fan forced cold air circulation system to ensure uniform temperature in the box. Copper evaporator cooling pipe, to ensure long service life.
11. Adopt the well-known domestic brand Arnoldan high efficiency compressor, environmental protection fluorine free refrigeration system, manufacture green products, create a green world.Refrigerant: Environmental protection R134A.
12. Built-in lithium battery can keep the temperature display in the box, light and sound alarm for 72 hours after power failure. Unique power off memory function, large amount of information, temperature data permanent storage.
13. Triple alarm mode (sound buzzer alarm, light flashing alarm, optional remote alarm)
14. Seven system obstacle alarm: high temperature alarm, low temperature alarm, sensor fault alarm, open the door alarm, power alarm, low spare battery alarm, low voltage alarm
15. Each freezer will be equipped with 4 high quality universal wheels to ensure ease of movement.
16. Power supply 220-240V/ 50HZ-60Hz, can provide backup power supply (UPS) according to customer requirements.
Optional:
1. Stainless steel 201/304 material
2. Cabinet LED lamp, cabinet drainage system
3. Imported compressor SECOP
4. Inlet ventilation system

Product mode GA301
Quantity 1Corpse
Voltage 220V/50HZ standard
Temperature inside box +5°C to -10°C
Exterior size 2280*800*620cm
Weight 100kg
Package size 2320*860*750cm
voltage 218W
