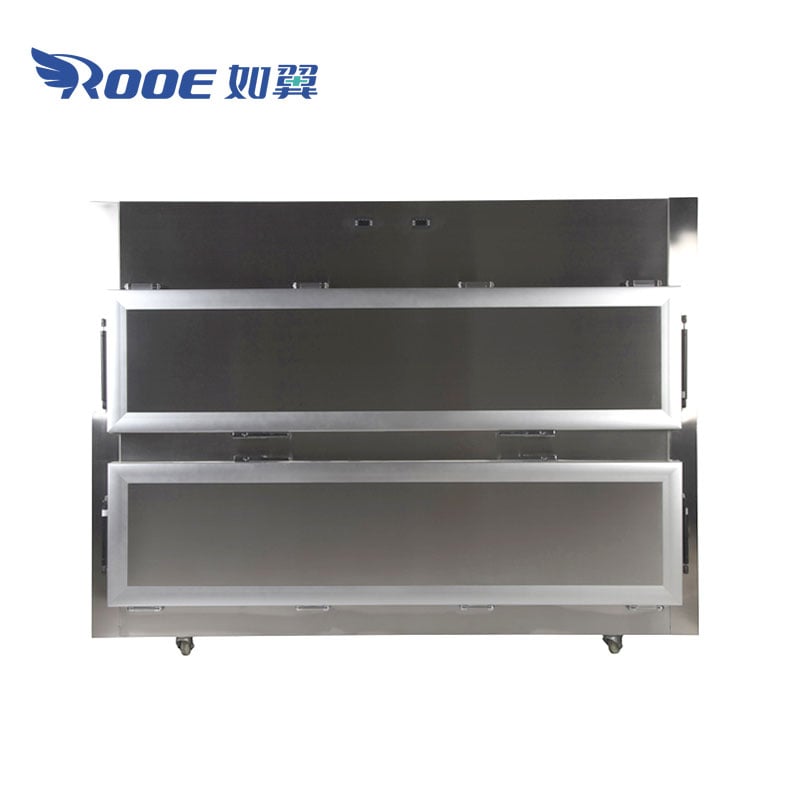

GA302 Mortuary Chamber Two Side Doors Dead Body Freezer Refrigerator

Product Introduction:
Our mortuary refrigerators and freezers consist of walk-in, small door, forensic lab and cadaver lockers. Standard and custom fridge systems are designed to meet morgue and other facility needs.

  • Product Description
  • Technical Parameters
  • Video

Mortuary Chamber Two Side Doors Dead Body Freezer Refrigerator Description:

Mortuary Chamber is ideal for small funeral homes, coroners’ and medical examiner’s offices that require mortuary cooling systems. The Dead body freezer unit consists of a stand-alone built-in cooling system with a digital thermometer and easily adjustable temperature control. Mortuary Body Refrigerator includes a powerful safety door system with an automatic lifting hydraulic bar for easy opening. Having separate doors at Mortuary freezer saves electricity and utility costs, making it of great economic value to your facility. With its durable steel handle, freezer, you will be able to easily pull out the body tray and slide it back.There are also 1/2/3/4/6/8/9 airframe sizes available. The GA302 cadaver freezer holds two cadavers. Different from the regular style, the corpse can be placed side into the corpse freezer.

Mortuary Chamber Two Side Doors Dead Body Freezer Refrigerator Features:

1. Corpse freezer/corpse cabinet is a series of products used by hospitals, funeral homes and autopsy departments to store corpses.
2. The inner shell of the refrigerator is made of high quality stainless steel, with strong corrosion resistance and beautiful and luxurious appearance.
3. The insulation layer is made of imported polyurethane foam material, with high heat resistance to cold loss, thickness of about 10cm, density of about 40kg/M3. It is a green/environmentally friendly foam material. It supports the machine with sufficient insulation.
4. The door sealing strip adopts high-quality rubber strip, which has strong anti-aging ability and can prolong the service life of the door sealing strip.
5. The refrigeration system of each room is controlled independently, and the temperature can be adjusted without interference. The temperature range of each cooling system can be adjusted individually, and the temperature of each room is independent. Each chamber has a compressor, and the failure of one compressor does not affect the operation of other chambers.
6. Detachable stainless steel tray is used to store the corpse, which is convenient for pushing and pulling the corpse. It is suitable for autopsy operation table. The bottom of the tray has a row of small rollers, easy to move the tray. Sliding system with telescopic outlet for full extension and mute. Each pallet can carry up to 150 kg.
7. Safety door lock design prevents arbitrary opening.
8.Powerful door opening system. Automatic lifting hydraulic lever.
9. Adopt high precision computer temperature control system to keep the internal temperature stable accurately; Three digit high brightness digital display, temperature set in the range of 5ºC to -10ºC, temperature display accuracy 0.1ºC, resolution 0.1ºC, adjust increment 0.1ºC; Unique high resolution temperature calibration function, set point adjustable calibration, calibration range of 2 to 8ºC, calibration increment of 0.1ºC.
10. Imported temperature record printing system, four precision temperature sensors in the box (two sensors in some systems), two temperature indicators outside the box, used to display the temperature of the upper and lower points, for users to monitor the temperature in the box of each working state. Each door is equipped with digital screen, easy to distinguish the temperature.
11. Intelligent control of fan forced cold air circulation system to ensure uniform temperature in the box. Copper evaporator cooling pipe, to ensure long service life.
12. Adopt the well-known domestic brand Arnoldan high efficiency compressor, environmental protection fluorine free refrigeration system, manufacture green products, create a green world. Refrigerant: Environmental protection R134A.
13. Built-in lithium battery can keep the temperature display in the box, light and sound alarm for 72 hours after power failure. Unique power off memory function, large amount of information, temperature data permanent storage.
14. Triple alarm mode (sound buzzer alarm, light flashing alarm, optional remote alarm)
15. Seven system obstacle alarm: high temperature alarm, low temperature alarm, sensor fault alarm, open the door alarm, power alarm, low spare battery alarm, low voltage alarm
16. Each freezer will be equipped with 4 high quality universal wheels to ensure ease of movement.
17. Power supply 220-240V/ 50HZ-60Hz, can provide backup power supply (UPS) according to customer requirements.
1. Stainless steel 201/304 material
2. Cabinet LED lamp, cabinet drainage system
3. Imported compressor SECOP
4. Inlet ventilation system

Product mode GA302
Quantity 2Corpse
Temperature inside box +5℃to-10℃
Exterior size 2150*800*1750mm
