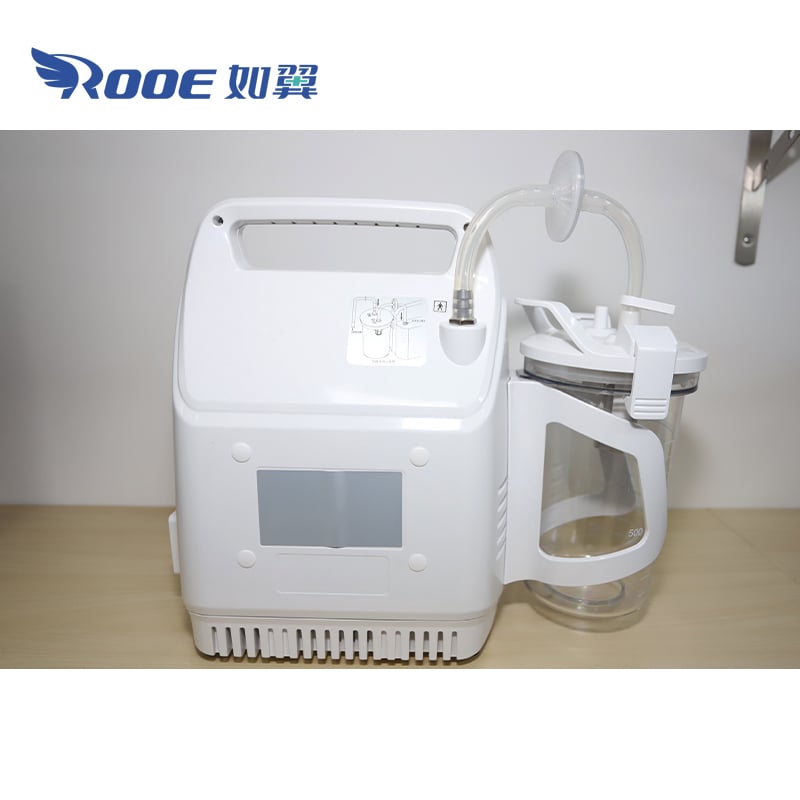

YX820D plus Portable Aspirator Suction Unit Medical Vacuum Machine

This Portable Aspirator Suction Unit is a reliable Medical Vacuum Machine designed for the efficient removal of secretions, blood, mucus, and vomitus in emergency and routine care. Featuring AC/DC dual power supply with internal battery support, this portable Suction Unit is ideal for hospitals, home healthcare, ambulances, and social medical services. Its maintenance-free piston pump ensures long service life and quiet operation, while the overflow protection system enhances safety and hygiene. Compact, lightweight, and easy to mount, this Portable Aspirator delivers dependable suction performance wherever medical vacuum support is needed.

  • Product Description
  • Technical Parameters
  • Video

Portable Aspirator Suction Unit Introduction:

This model is the latest portable AC/DC suction unit. It is specially used for secretion, blood, vomitus and mucus removal of the patient who have undergone tracheostomy or had the trachea blocked, and for emergency treatment to a respiratory tract patient in hospital, home healthcare environment, or social medical services.



Portable Aspirator Suction Unit Features:

1. Long life piston cylinder which requires no lubrication or daily maintenance produces no pollution to the environment.

2. Provided with three kinds of electrical sources, AC power, external DC power, and internal battery. They may be attached to the cigar lighter (DC12V) directly when used on the vehicles.

3. The internal battery is charged with constant voltage and limited current while the unit is working or being attached to AC100V~240V 50/60Hz or external DC 12V power supply. The capacity of the battery is respectively indicated by green and yellow indicator light.

4. Overflow protection device can safely and efficiently prevent the liquid from entering into pump. Bottles made of plastic material are transparent, durable and convenient for cleaning.

5. Body made of plastic material is handy and beautiful. The wallmounting frame makes it widely used in the room, on vehicle and conveniently hung on the side of the wheelchair.



Model YX820D plus
Max. Vacuum ≥ 0.08 MPa (600 mmHg)
Vacuum Range 0.01 MPa – Max. Vacuum
Flow Rate ≥ 25 L/min
Noise Level ≤ 60 dB (A)
Collection Jar Capacity 1000 mL (PC)
Operating Voltage DC 12V; AC 100–240V, 50/60Hz
Power Input DC 12V / 5A
Battery Type & Working Time Lead-acid battery: ≥ 30 min (full charge)

Lithium battery: ≥ 70 min (full charge)

Product Dimensions (L×W×H) 384 × 155 × 316 mm
Package Dimensions (L×W×H) 450 × 215 × 405 mm
