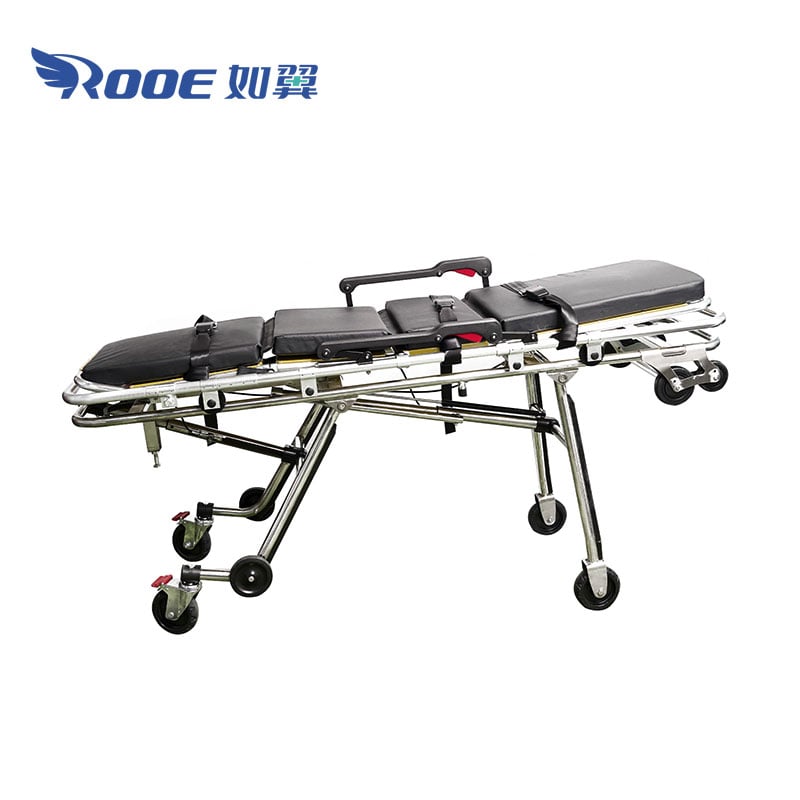

The low stretcher is suitable for ambulance of a relatively low chassis. It can have a shovel stretcher to deal with different situations. With four caster, it can be transferred in a flat ground to transport the patient and directly push or raise to ambulance, and can be fixed to the ambulance.This type of stretcher is characterized by its lightness.
Medical Stretcher uses foam cushions and adjustable back Angle to make the patient feel comfortable while lying down. Medical ambulance cot adopts low frame structure, which can move on the ground and lift up. The low position stretcher is provided with a pull ring at both ends to facilitate the transport of patients; Equipped with a welding ambulance stretcher, two safety belts and an IV lever. Made of high-strength aluminium, Ambulance Gurney is lightweight, safe and easy to use, easy to disinfect and clean
1.Low position stretcher, suitable for low height board ambulance.
2.The backrest can be adjusted from 0 – 65 deg by gas spring.
3.Swing-down side rails to protect patient when transfer.
4.The bottom space of the stretcher is designed for storage of scoop stretcher.
5.The stretcher can be locked by the fixing device when it is in the ambulance.
6.It is made of high-strength aluminum alloy.
7.φ12.5cm castors, diagonal brakes, swivel front castors and non-swivel rear castors.
8.Retractable handle for easy lifting of stretcher.
9.Folding pull rod, push and pull force saving.
10.Mainly used for ambulance, hospitals, emergency centers.
11.Suitable for the ambulance: the wheel hub height is less than 29cm.
1.Waterproof seamless welding PVC mattress(5cm thickness foam).
2.3pcs belts for chest, hip and knee.
3.Fixing device L02.
4.Optional: IV pole 101/102; Pillow.
Model | Unfolded size(L*W*H) | Max angle of the backrest | Distance between front and rear wheel | Load bearing | N.W | G.W | Packing Size(1pc/CTN) |
EA-2A/2C | 190*55*44cm | 65° | 120cm | 180kg | 25kg | 32kg | 195×58×34cm |
