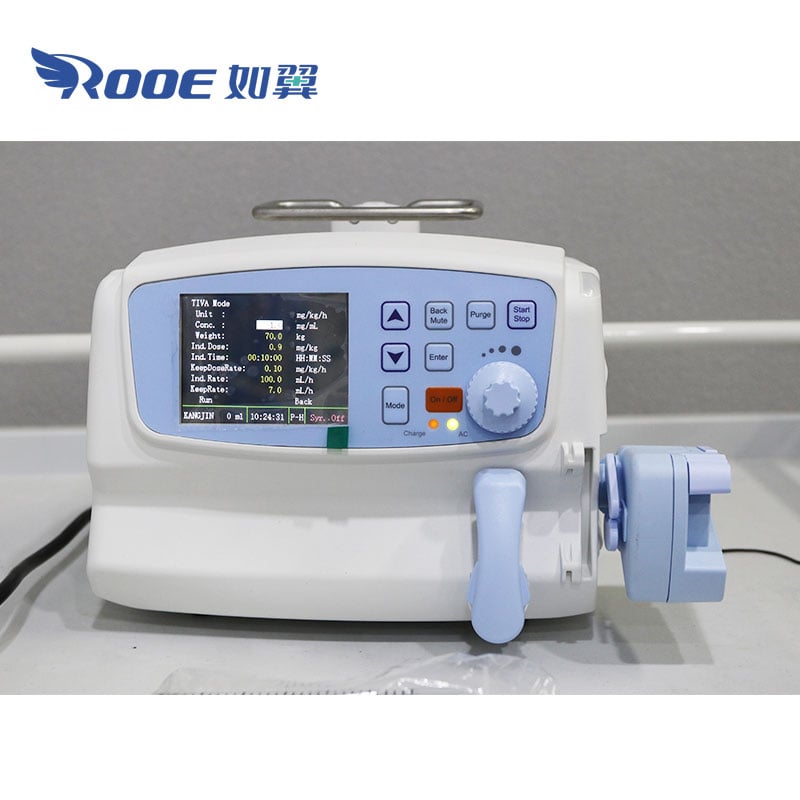

WRSP-605T TCI Pumps Anaesthesia 1000 ml Single Channel Syringe Pump

A syringe pump is a pump used to deliver precise and accurate amounts of fluid in high-impact research environments ranging in fields from chemistry to neuroscience. An infusion pump infuses fluids,medication or nutrients into a patient’s circulatory system.It is generally used intravenously,although subcutaneous,arterial and epidural infusions are occasionally used.

  • Product Description
  • Technical Parameters
  • Video

TCI Pumps Anaesthesia 1000 ml Single Channel Syringe Pump Features:

1. Selection of the induction method and setting of the target concentration according to the basic parameters of the patient;

2. Selection of the site of target control, plasma target control or effect chamber target control;

3. Adjusting the target concentration according to the anaesthetic effect

4. Adjusting the dose according to the duration of the operation.

tci pumps anaesthesia,single channel syringe pump,1000 ml syringe pump

5. Six modes of administration: simple mode, speed mode, time-dose mode, weight mode, plasma target control, effect chamber target control;

6. Three induction modes: rapid induction, step induction and smooth induction, in line with clinical dosing habits;

7. High-resolution colour screen with adjustable backlight;

8. Multi-position adjustable blocking pressure;

9. Keyboard can be locked during operation, real-time display of parameters during operation;

10. Target-controlled syringe pump can be combined with DPS function.

tci pumps anaesthesia,single channel syringe pump,1000 ml syringe pump tci pumps anaesthesia,single channel syringe pump,1000 ml syringe pump

Model WRSP-605T
Syringe Size 10, 20, 30, 50/60 ml
Applicable Syringe Compatible with syringe of any standard
VTBI 1-1000ml( in 0.1, 1, 10 ml increments)
Flow Rate Syringe 5 ml: 0.1-100 ml/h ( in 0.1, 1, 10 ml/h increments)
Syringe 10 ml: 0.1-300 ml/h
Syringe 20 ml: 0.1-600 ml/h
Syringe 30 ml: 0.1-800 ml/h
Syringe 50/60 ml: 0.1-1200 ml/h
Bolus Rate Syringe 5 ml: 0.1-100 ml/h ( in 0.1, 1, 10 ml/h increments)
Syringe 10 ml: 0.1-300 ml/h
Syringe 20 ml: 0.1-600 ml/h
Syringe 30 ml: 0.1-800 ml/h
Syringe 50/60 ml: 0.1-1200 ml/h
Anti-Bolus Automatic
Accuracy ±2%(mechanical accuracy 1%)
Infusion Mode Flow rate: ml/min, ml/h
Time-based
Body weight
KVO Rate 0.1-1 ml/h (in 0.01 ml/h increments)
Alarms Occlusion, near empty, end program, low battery, end battery, AC power off, motor malfunction, system malfunction, reminder alarm, pressure sensor error, syringe installation error, syringe drop off
Additional Features Real-time infused volume, automatic power switching, automatic syringe identification, mute key, purge, bolus, anti-bolus, system memory, history log
Drug Library Available
Occlusion Sensitivity High, medium, low
History log 50000 events
Power Supply, AC 110/230V (optional), 50-60 Hz, 20VA
Battery 14.8V, rechargeable
Battery Life 8 hours at 5 ml/h
Working Temperature 5-40℃
Relative Humidity 20-90%
Atmospheric Pressure 700-1060hpa
Size 245*120*115 mm
Weight 2.5kg
Safety Classification Class Ⅱ, type BF
