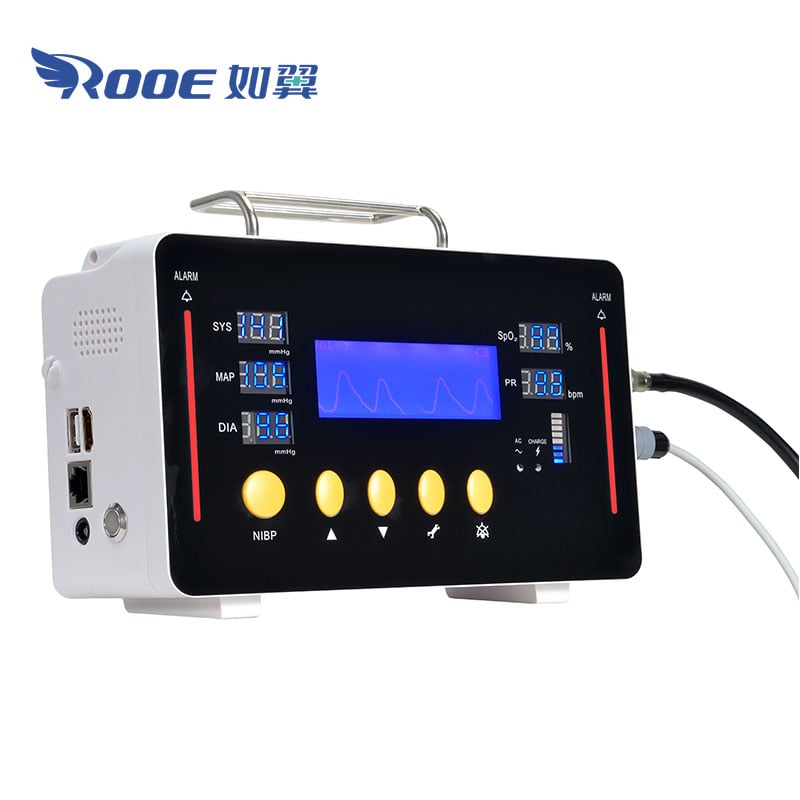

F2 V1.4 SPo2 NIBP Monitor Portable Patient Monitor Hospital Vital Monitor Machine

Pulse rate, SpO2, NIBP, temperature, etc. Equipped with a 3.7-inch screen for easy observation of patients’ vital signs, it is designed for advanced hospitals that want simple but high-performance equipment.

  • Product Description
  • Technical Parameters
  • Video

SPo2 NIBP Monitor Portable Patient Monitor Hospital Vital Monitor Machine Description:

The SPO2 NIBP Monitor provides direct action through a user configurable display, enabling clinicians to quickly access the desired results.

The Portable Patient Monitor has various parameters, including advanced features such as NIBP, SPo2, Temp, and so on. Designed for fast-paced work environments, Hospital Vital Monitor provides an extremely simple and adaptable user interface. The Vital Monitor machine can quickly modify patient information and vital sign Settings to meet patients’ needs as their conditions change. Hospital Monitor offers a high resolution 3.7-inch screen to optimize the speed of patient care.

SPo2 NIBP Monitor Portable Patient Monitor Hospital Vital Monitor Machine Features:

1. Built-in memory, which can store up to 100 hours of patient SpO 2 and 500 groups of patient NIBP

2. Perfusion index (PI) was measured as blood perfusion index

3. High brightness cold cathode fluorescent backlight LCD+LED display

4. Advanced simulation processing technology provides accurate measurements under low perfusion and motion conditions

5. Adjustable audible and visual alarms

6. Built-in large capacity rechargeable lithium battery

Display

LED + LCD

LCD Size: 85mm * 30mm

Battery

Type: Rechargeable lithium battery 3.7V/2200mAh

Charge Cycle: ≥500 times

Working time: 3 hours

Optional large battery for 8-9 hours work

Alarm

Level: Low, medium and high, message

Indication: Auditory and visual

Alarm volume adjustable

System Output

Ethernet Network: standard RJ45 socket (option)* 1

USB Port (option) * 1

Trend & Reviewing

Trend: 100 hours of patient SpO2

NIBP measurement reviewing: 500 groups

SpO2

Measurement Range: 0 ~ 100 %

Resolution: 1 %

Support Pitch tone and multi-level volume

Accuracy:   80% ~ 100%, ±2 % (adult)

70% ~ 80%, ±3% (adult)

0% ~ 69%, unspecified

PI range:0.075%-20%.

Pulse Rate

Measuring and Alarm Range: 25~250bpm

Accuracy: ±1% or ±1 bpm, whichever is greater

Resolution: 1bpm

NIBP

Method: Oscillometric

Measure mode: Manual, Auto, STAT

Measure Interval in AUTO Mode 1~480 min

STAT mode cycle time: Keep 5 minutes, at 5 seconds interval

Measure and Alarm Range:

Adult:          SYS:  30 ~ 270 mmHg

DIA:  10 ~ 220 mmHg

MEAN:  20 ~ 235 mmHg

Pediatric:   SYS:  40 ~ 235 mmHg

DIA:  10 ~ 220 mmHg

MEAN:  20 ~ 225 mmHg

Neonate:    SYS:  30 ~ 135 mmHg

DIA:  10 ~ 110 mmHg

MEAN:  20 ~ 125 mmHg

Static pressure accuracy: ±3mmHg

Resolution: 1mmHg

Accuracy:  Maximum Mean error ±5mmHg

Maximum Standard deviation ≤ 8mmHg

Over pressure Protection: Dual protection via software & hardware



Model F2 V1.4
Config. S: SpO2, Pulse Rate, Perfusion Index
Config. SN: SpO2, Pulse Rate, NIBP, Perfusion Index
Config. SNT: SpO2, Pulse Rate, NIBP, Perfusion Index, Temperature
Optional Config. : Nellcor SpO2, Masimo SpO2
Optional Accessories: Wall-mounting, Trolley, Neonatal /Pediatric Accessories, Large capacity battery
Dimension: 210mm*170mm*75mm
Weight(kg): 1kg(excluding accessories)
Power Supply: AC100~240V, 50/60HZ
Output: 5VDC, 4A
Standard Packing List
1. Main Unit * 1pc
2. Reusable adult SPO2 sensor with plug * 1pc
3. Rechargeable lithium battery * 1pc
4. Power adapter * 1pc
5. Grounding Cable * 1pc
6. User’s Manual * 1pc
7. NIBP hose (2M), with connector * 1pc(Config. SN)
8. Adult NIBP cuff with connector * 1pc (Config. SN):
9. Temperature probe with connector * 1pc (Config. SNT):
