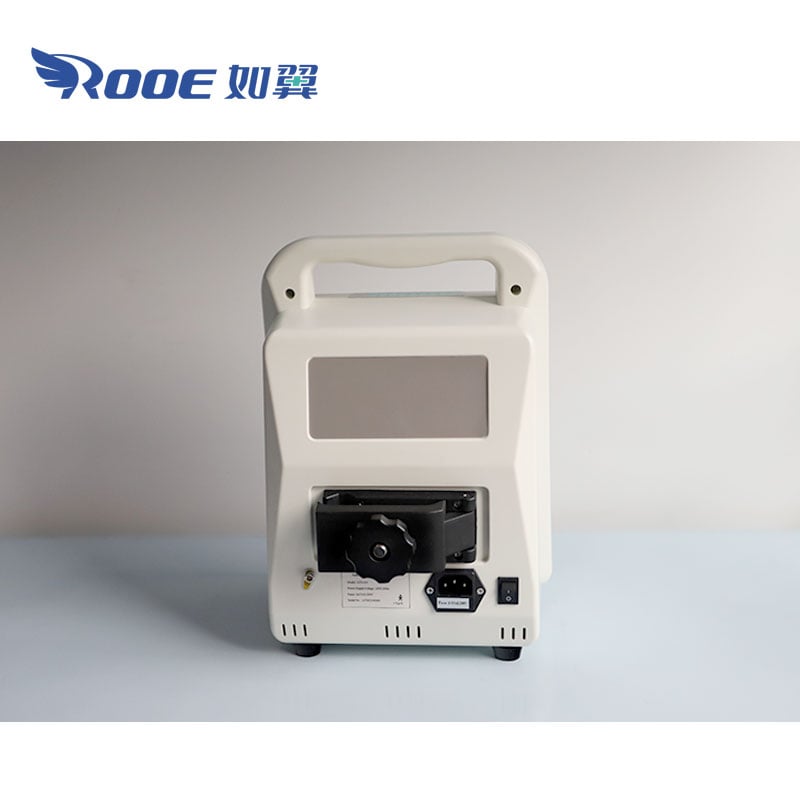

ATS-101 Single Channel Electric Automatic Tourniquet Machine Portable Tourniquet System

A tourniquet can be defined as a constricting or compressing device used to control arterial and venous blood flow to a portion of an extremity for a period of time. Pressure is applied circumferentially around a portion of a limb at a desired location; this pressure is transferred to the walls of blood vessels, causing them to become temporarily occluded or restricted. In surgical settings, a tourniquet is used to occlude arterial blood flow following exsanguination to produce a relatively bloodless operative field and to minimize blood loss. In emergency settings, a tourniquet is used stop traumatic bleeding such that medical care can be provided in time before the injured person bleeds out.

  • Product Description
  • Technical Parameters
  • Video

Single Channel Electric Automatic Tourniquet Machine Portable Tourniquet System Description:

The Automatic Tourniquet Machine is used in limb surgery to temporarily block blood circulation to the limb. Electronic Tourniquet Machine connection simple, reliable, international popular plugable interface mode. Medical Tourniquet can be equipped with vertical bracket, optional components, sound alarm. Alert the operator 1min before the completion of the operation. Today portable tourniquet system uses a dial indicator or microcomputer to control a digital display, with a clear working pressure and time, and is equipped with automatic compensation for leakage pressure, and can be set to a constant operating pressure value. With memory function, the parameters of the last operation can be retained, and the parameters can be used or adjusted in the next operation. Standard tourniquet cuffs are made of pure cotton, which does not damage the skin. The liner is made of high strength TPU material. The Buy Medical Tourniquet also has a silicone option.

Usage:

Electro tourniquets are widely used in emergency or limb surgery.

automatic tourniquet machine,electronic tourniquet machine,medical tourniquet,portable tourniquet system,buy medical tourniquet



automatic tourniquet machine,electronic tourniquet machine,medical tourniquet,portable tourniquet system,buy medical tourniquet

Single Channel Electric Automatic Tourniquet Machine Features:

1. Automatic tourniquet system includes body and cuff.

2. There are three standard sizes of sleeves, which are suitable for adult lower limbs, adult upper limbs and children’s limbs. In addition to the standard size, select other sizes as required.

3. The system adopts imported sensors, with pressure calculation and pressure sharing function, high quality motor with low noise and rapid pressure.

4. Imported large capacity CPU accurately controls pressure and displays clear data. The solenoid valve can be automatically deflated.

5. Automatic compensation and maintenance of working pressure.

6. Accurately detect tourniquet time.

7. Issue visual and auditory alarms when unsafe conditions are detected





Model ATS-101
Maximum pressure : 90Kpa (675mmHg)
Time set : 0-99min
Pressure control precision : ≤5kpa
Initial Inflate time : ≤20s (cuff in non-freedom state)
Noise : ≤55db
Power : ≤25W
Main Body 330*310*400mm
Gross weight: 5.28kgs
base: 650*650*180mm
Gross weight: 4.86kg
Basket: 280*280*350mm
Gross weight: 1.53kg
