The chair is designed to assist and facilitate the work of doctors and medical personnel. Trendrenburg (oblique) position; Trendrenburg can be used in emergency situations such as anemia. It is designed to be suitable for a variety of medical uses, dialysis, chemotherapy, blood donation, etc

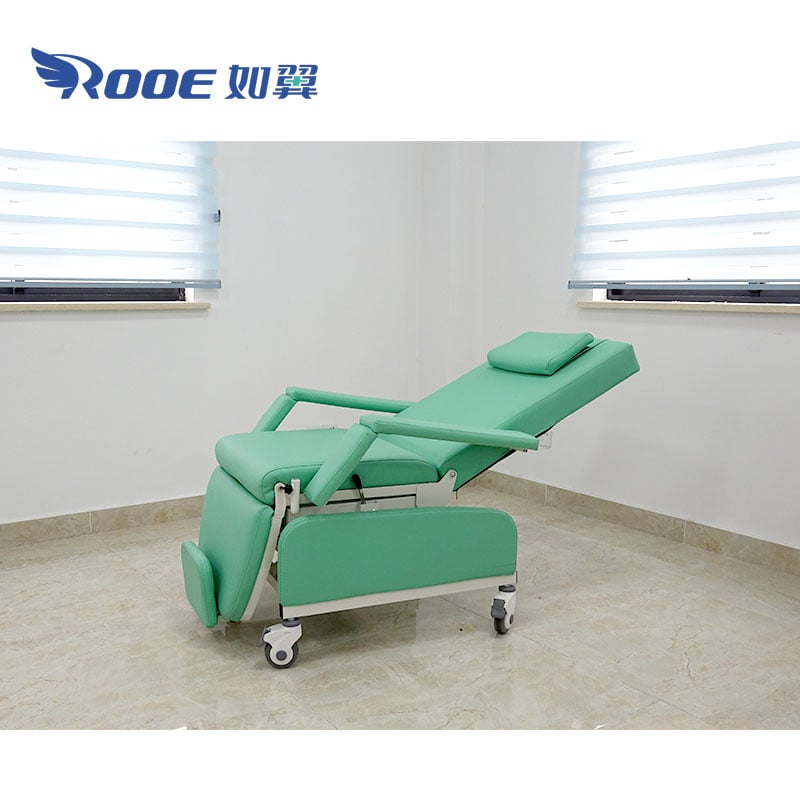

The Hospital Adjustable Blood Draw Chair highlights the high standards of the Comfort range with modern design, high-quality materials and detailed interiors, as well as mechanical and electrical components. Continuously adjust all sitting and lying positions. Reclining Blood Draw Chair uses the highest quality materials. It can be adjusted at the doctor’s request. Our Reclining Phlebotomy chair can be adjusted by a handle next to the seat for examination of the patient. Spring air adjustable foot and leg adjustable headrest provide comfort for your patients. Adjustable Phlebotomy Chair’s wheels move the chair from one place to another. The maximum safe bearing capacity of 200kg also provides high stability in the horizontal position. Phlebotomy draw chairs are widely used in blood donation centers and medical centers.
1. Low carbon steel solid structure, appearance of high strength fiber material and multi-layer baking paint, with artistic sense, modern sense, durability and easy to clean.
2. The mattress is made of high-quality medical polyurethane foam forming, which is easy to clean and maintain. Its antistatic and antifouling performance is superior to other similar products.
3. Back and leg combination exercises promote an easy lean/lie down position with an air spring assisted motion.
4. Release the handle to quickly adjust the seat position. The release handle can be operated from either side of the recliner.
5. The quick-release trigger mechanism of the release handle allows the chair to move quickly to the -12° Trendelenburg position, enabling the patient to obtain timely assistance.
6. Articulated headrest can be adjusted quickly to maximize comfort
7. Four pcs locking casters for easy movement.
8. Super wide upholstered handrails maximize comfort. Optional dining table board.
9. Standard IV pole
10.It is an ideal blood collection choice for blood stations, centers and blood donation rooms.
11. Human-oriented original products can give blood donors a sense of security and comfort, relieve psychological pressure, and make the whole process relaxed and happy.
Manual adjustable body position
seat position
semi-fowler position
horizontal position
Cpr Trendelenburg position
Main Parameter | Manual Control |
Model | BXD100Basic |
Chair open size | 1900*850*560mm |
Chair body size | 920*850*560mm |
Package size | 1620*820*600mm/72kg |
Seat width | 600mm |
Arm rest adjustment height | none |
Chair Adjustment Range | |
Height Adjustable | none |
Back adjustment Angle range: | -10° ~ 75°±5° |
Leg plate Adjustment Angle range: | -80° ~ 12°±5° |
Trendelenburg position: | -12° |
IV pole(from clamp to top) | 860~1500mm |
IV pole(from floor to top) | 1260~1900mm |
Paper holder and oxygen holder diameter: | none |
Material | |
Frame Material | Steel |
Matress Material | PVC |
Wheel | 4 Silent Wheels With Brakes |
Max loading | 200kg |
N.W/G.W. | 62kg/75kgs |
