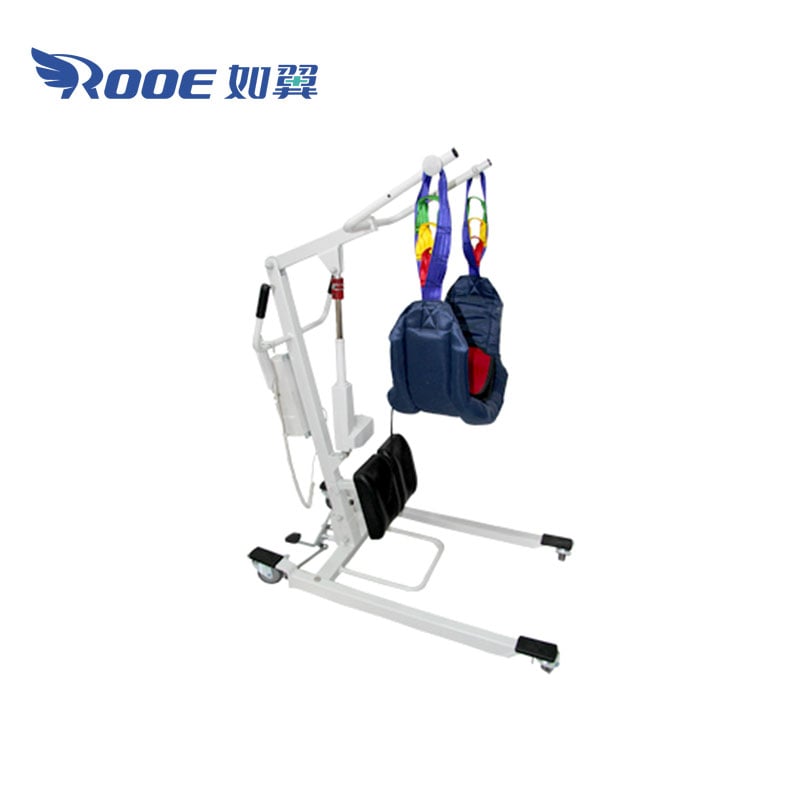

DG202 Battery Powered Stand Up Patient Lift Standing Aid Hoist

Designed to be a complete back protector! Patient lifts help reduce the risk of possible injury to patients, caregivers, and other medical staff, while improving patient satisfaction, comfort, and dignity. Standing lifts are the safest and most effective way to clean, dress and transport patients who require additional support

  • Product Description
  • Technical Parameters
  • Video

Battery Powered Stand Up Patient Lift Standing Aid Hoist Description:

The Battery Powered Standing Patient Lift is a standing aid designed for home and hospital settings that safely raises patients from a seated to a standing position. This lift is designed to reduce the risk of injury to caregivers while ensuring the safety and comfort of patients during transfers. Heavy-duty carbon steel construction with a powder-coated finish provides durable support. This lift is the safest and most effective choice for patients who need extra support, especially during cleaning, dressing and transfers.

This lift is battery-powered and has an electric base operating system for ease of use. The adjustable knee support design accommodates different body shapes and ensures the comfort and safety of patients during transfers. It is an ideal choice for daily patient care management, not only relieving the burden on caregivers, but also providing a smooth and reassuring experience for patients.

stand up patient lift,battery powered patient lift,patient standing hoist,patient hoist lift,stand aid hoist

Battery Powered Stand Up Patient Lift Standing Aid Hoist Features:

1. Compact design: Small footprint, lightweight steel structure, easy to operate and move.

2. Low base design: Low base height, enhanced stability, suitable for placement under most beds.

3. Large push handle design: Provides caregivers with better control and easy completion of daily transfer tasks.

4. Adjustable leg support: With soft padding, ensures that the legs remain comfortable at any height.

5. Removable footrest function: For patients who only need to assist in standing, the footrest can be easily removed, and the wide non-slip pedal provides stable transfer support.

6. 4-point lifting arm: Compatible with standing slings of various sizes and brands, enabling quick toileting, standing assistance and sitting transfer.

7. Emergency lowering device: In the event of power failure, the lifting arm can be manually lowered to prevent electric system failure.

8. Emergency stop button: In an emergency, press the button to stop the lifting immediately, and rotate the button to restore power.

9. Electric remote control: Ergonomic design, easy to control the operation of the lifting arm.

10. Flexible caster design: 3-inch front wheels provide a low-profile base design suitable for entering narrow spaces, and 4-inch rear wheels ensure better maneuverability.

11. Adjustable lifting width: The base width can be adjusted by pedals to adapt to different transportation needs.

12. Optional leg straps: Provide fixed support for patients who need additional leg support to ensure optimal positioning.

13. Removable battery box: Located on the mast for easy disassembly and assembly, it is equipped with an emergency shut-off button and a charging indicator light, and there is a sound prompt when charging is complete.

14. Single-person operation: The caregiver can operate this device alone without additional help, avoiding back injuries to the caregiver caused by improper force.

15. Suitable for patients who can stand: The maximum load of this lift is 150 kg, which is particularly suitable for patients who can stand independently.

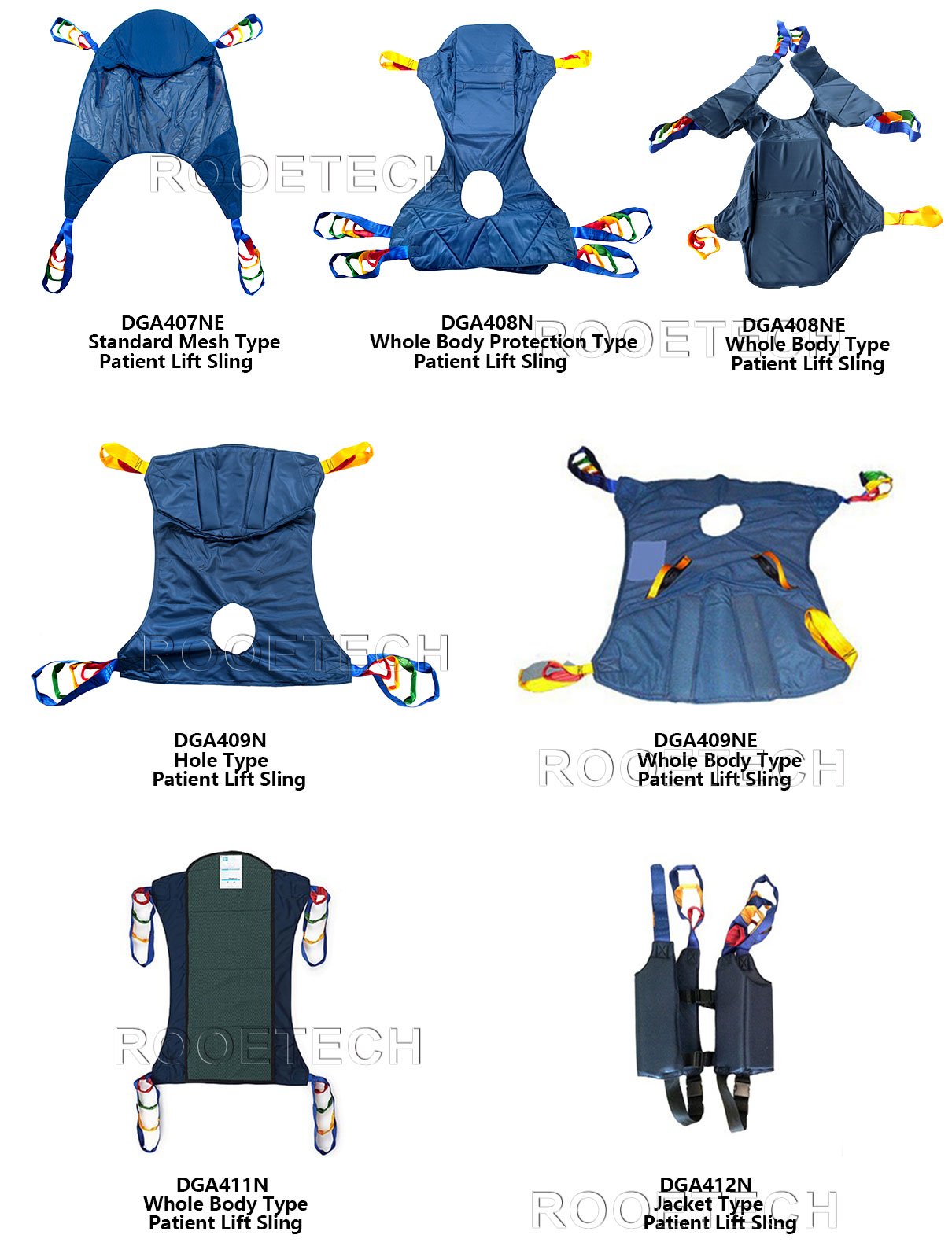

Optional Sling:

stand up patient lift,battery powered patient lift,patient standing hoist,patient hoist lift,stand aid hoist stand up patient lift,battery powered patient lift,patient standing hoist,patient hoist lift,stand aid hoist

Main Parameter
Model DG202
Arm Length 820mm
Leg Length 1190mm
Overall Width 590mm
Base Open Width 860mm
Hook Height 1200-1880mm
Push Handle Height 1140mm
Base Clearance 115mm
Weight Capacity 150kg(200kgs optional)
Frame material: Strong steel frame
Coating: Powder coating
Front twin casters 3″
Rear break casters 4″ with brakes
Input voltage 220V50HZ
Motor: 24V
