JX820D/JX820D-1 Portable Suction Units For Ambulance Emergency Negative Pressure Suction Machine

This model is the latest portable AC/DC suction unit. It is specially used for secretion, blood, vomitus and mucus removal of the patient who have undergone tracheostomy or had the trachea blocked, and for emergency treatment to a respiratory tract patient in hospital, first-aid teams, or social medical services, especially for a patient who is transported by vehicle or is in a place without AC/DC power supply.

  • Product Description
  • Technical Parameters
  • Video

Portable Suction Units For Ambulance Negative Pressure Suction Machine Description:

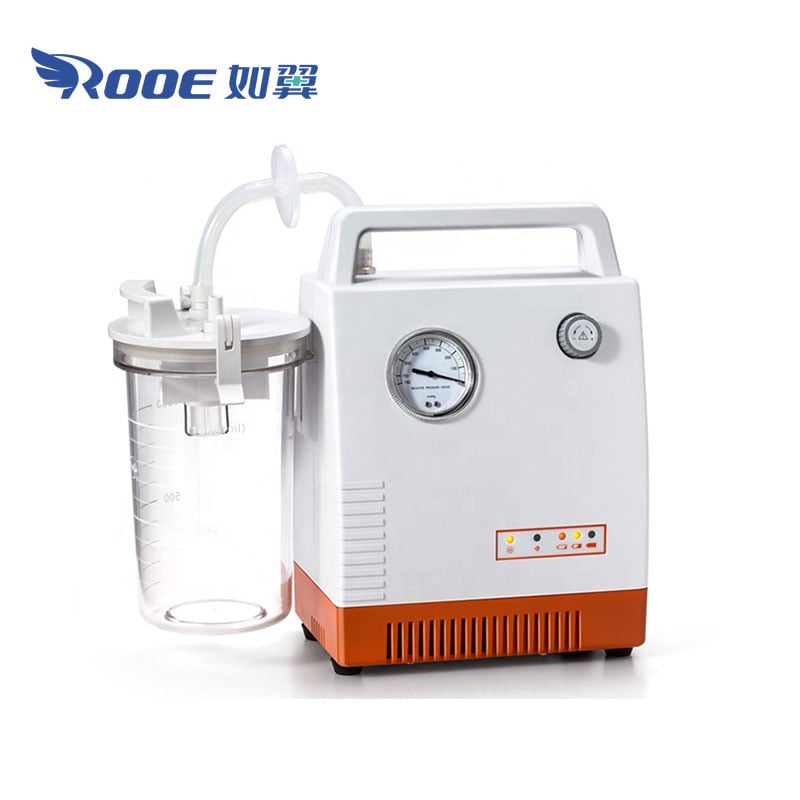

Portable Suction unit is a portable, AC/DC dual-use, high negative pressure and high flow first aid suction unit. Suction unit for ambulance consists of vacuum pump and vacuum regulator and vacuum indicator and collection container components. The above two types of AC and DC suction machine are suitable for ambulances or places without power supply outdoors. Ambulance unit is used for the rescue of respiratory patients, usually used for oropharyngeal suction or tracheal intubation of patients’ trachea suction, to remove secretions, blood, vomit and other substances causing respiratory obstruction, so as to keep the respiratory tract smooth. Emergency suction is an suction device with overflow protection device, which is easy to maintain. It is an ideal surgical device.

Portable Suction Units For Ambulance Negative Pressure Suction Machine Features:

1. long life piston cylinder, no lubrication or daily maintenance, no pollution to the environment.

2. provide AC100V~240V 50/60Hz, external DC12V, built-in battery three power supply, can be easily used in many places. When the rechargeable built-in battery is fully charged, the JX820D can be used continuously for more than 25 minutes and the JX820D-1 for more than 60 minutes. It can be directly connected to the cigarette lighter (DC12V) when used in vehicles such as ambulances.

3. when the machine is working or external AC100V~240V 50/60Hz or external DC 12V power supply, charge the internal battery with constant voltage and current limiting. The capacity of the battery is indicated by green, yellow and orange neon lights.

4. overflow protection device can safely and effectively prevent liquid into the pump. Plastic bottles are transparent, durable and easy to clean.

5. Plastic body, convenient and beautiful. Wall-mounted frames make them widely used indoors, on vehicles, and easily attached to the side of wheelchairs.

portable suction unit,suction units for ambulance,ambulance suction unit,emergency suction,negative pressure suction machine







Specification
Model JX820D JX820D-1
Max vacuum ≥0.08MPa (600mmHg)
Adjustable Vacumm Range 0.02MPa~Max.Vacuum
Noise ≤65 dB(A)
Flow Rate ≥20L/min
Power DC 12V ; AC 100V~240V 50/60Hz
Input power(VA) 110 VA
Reservoir capacity 1000 ML/PC, 1PCS
Battery: Emergency Aspirator(AC/DC) with Lead acid battery Emergency Aspirator(AC/DC) with lithium battery
Battery duration on full charge: ≥25min ≤60min
N.W.: 4.5kg 3.9kg
G.W.: 6.5kg 5.9kg
DIM 405mm×200mm×360mm 430mm×420mm×390mm
