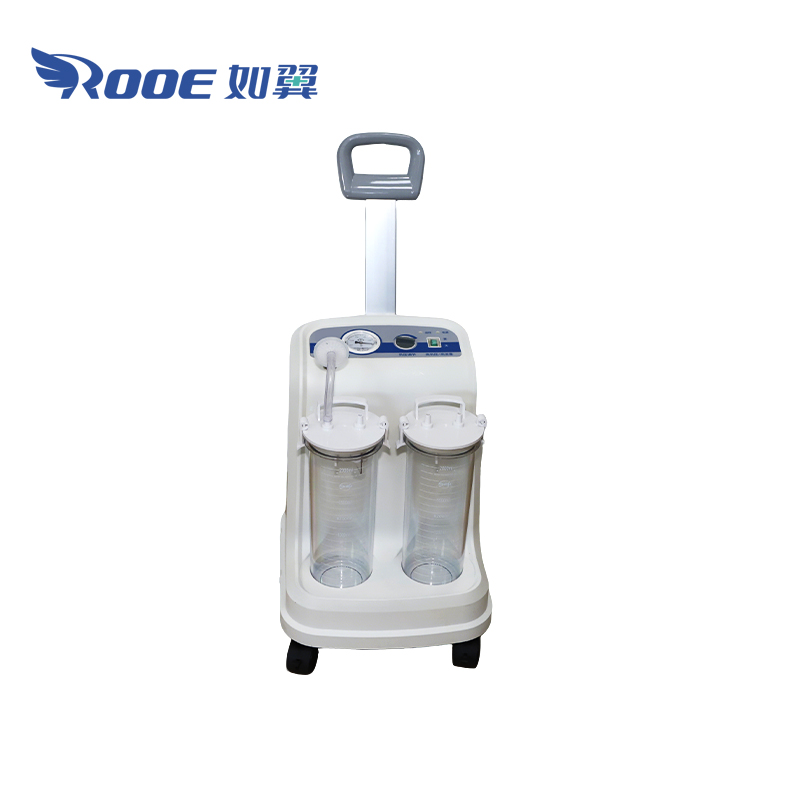

YX932D Plus Portable Suction Machine Unit Electric Suction Pump With Pneumatic Foot Switch

Most medical aspirators are portable and mobile (with moving parts) to deal with any emergency if needed. Therefore, its flexible use makes it play a vital role in the medical field.

  • Product Description
  • Technical Parameters
  • Video

Portable Suction Machine Unit Electric Suction Pump Description:

portable suction machine became one of the indispensable devices in medical facilities with its efficient clearance function, portability, safety, and advantages in multiple application areas. The  electric suction pump quickly and effectively removes secretions and foreign objects from the body cavity and airway, ensuring the patient’s airway is clear.

Portable Suction Machine Unit Electric Suction Pump Features:

Electric suction device is a mobile medical suction device with high negative pressure and high flow. The product is used in medical institutions for suction of secretions in the airway of patients and for exudation and flushing fluid of patients during operation. The product is not suitable for abortion attraction.

portable suction machine,suction unit,electric suction pump



1. Large flow oil-free vacuum pump as a negative pressure source, negative pressure rises quickly, will not produce positive pressure.

2. The operation and suction pressure of the machine can be adjusted through the pneumatic foot switch.

3. Large capacity PC liquid storage bottle easy to clean, optional glass bottle

4. Hydrophobic air filter and overflow protection device form double protection to prevent liquid from entering the intermediate pipe.

5. The negative pressure regulating valve can be adjusted according to the clinical stepless, and the vacuum gauge shows the negative pressure value.

6. Push and pull handles and casters to achieve flexible movement.

Specification
Model YX932D Plus
Max vacuum ≥0.09 MPa(680mmHG)
Adjustable Vacumm Range 0.02MPa(150mmHG)~Max.Vacuum
Noise ≤65dB(A)
Flow Rate ≥32L/min
Power AC 220V,50Hz
Input power(VA) 180 VA
Storage bottle PC Bottle:2000ml×2
(Optional Glass bottle)
N.W.: 12.5Kg
G.W.: 15Kg
Package Size 45cm×52cm×58cm
