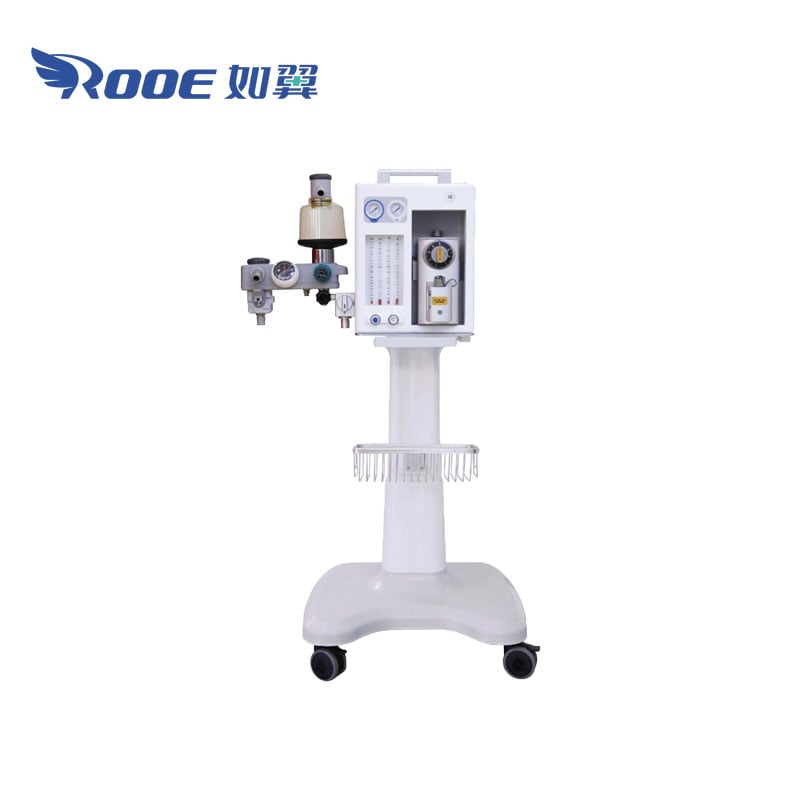

The ideal Portable Anesthesia System support an upgrading not only for clinical field, but also applicable for anesthesiology, gynaecology and obstetrics, stomatology and emergency department. It gives a safe, accurate and convenient support for application combination which will assit with fast response to life care.
1.Portable design, easy to operate.
2.Applied for Adult and Pediatric.
3.2 Gas souces (Oxygen and Nitrous oxide).
4.Applied 1 High-precision Vaporizer (Isoflurane/Enflurane/Sevoflurane/Halothane).
5.Available for connecting Anesthesia ventilator (AMJ-1010, AMJ-1020 ).
Physical Specifications | |
Dimensions | 50*46*32 |
Weight | 22kg |
Casters | Front wheels with lock |
Application | |
Patient range | Adult/Pediatric |
Lanauage | English |
Pipeline Supply | |
Gas configuration | 02, N2O |
Pipeline input range | 280-600Kpa |
Working Specifications | |
Power | AC 220V±10%, 50Hz±2% |
Current | 500mA max |
Modes of Ventilation | |
MANUAL | Manual |
Ventilator Parameter | |
Working type | Pneumatic driven |
System Standard | |
Hypoxic guard system | N2O cut-off valve, O2 concentration >25% |
APL valve | <6kPa |
O2 Flush | 25-75L/min |
Volumne of CO2 absorber | 0.8 L |
Flowmeter | 4 tubes, Cascade 0.1-10L/min O2, 0.1-10L/min N2O |
Vaporizer | 1 unit, (Isoflurane/Enflurane/Sevoflurane/Halothane) |
Optional | |
Anesthesia ventilator | Available for connecting Anesthesia ventilator ( CWH-1010,CWH-1020) |
Trolley | |
Environment | |
Reserve Condition | Temperature: -10-40 degree, Relative humidity < 90% |
Working Condition | Temperature: 5-40 degree, Relative humidity < 80% |
