F8(A10) Pet Veterinary Multiparameter Monitor Life Support Machine

Versatile animal monitor for dogs, cats, etc. 12.1-inch display screen. You can select different parameters according to different needs. Multiple measurement features provide impressive reliability and performance. Powerful data storage capabilities for trend data, alerts, NIBP measurements.

  • Product Description
  • Technical Parameters
  • Video

Pet Veterinary Multiparameter Monitor Life Support Machine Description:

Veterinary Multiparameter Monitor has a 12.1 module color TFT screen that displays all physical signs in different colors, making it the easiest to identify conditions and allowing you to monitor patients clearly even under difficult lighting conditions. Pet monitor to measure 3/5 Lead ECG, NIBP, SpO2, Pulse Rate, Temperature, ventilation of animals. The direct key connection of common functions of life Support Machine selects the computer, which is convenient for setting up and upgrading the connection software through the Internet

Fast, lightweight and intuitive touch screen Multiparameter Monitor. With vet-specific algorithms and proprietary blood pressure technology, Veterinary Patient Monitor is the latest innovation from the most trusted brand in veterinary vital sign monitoring.

veterinary multiparameter monitor,multiparameter monitor,veterinary patient monitor,pet monitor,life support machine

Pet Veterinary Multiparameter Monitor Life Support Machine Features:

The F8 Veterinary monitor is designed to match the pace and unique needs of small, medium, and large intensive care; anesthesia and peri-operative care; OR and cardiac care environments.
An optional USB Mouse/Keyboard control eases navigation and data entry.
An optional HDMI output eases observation from a long distance.

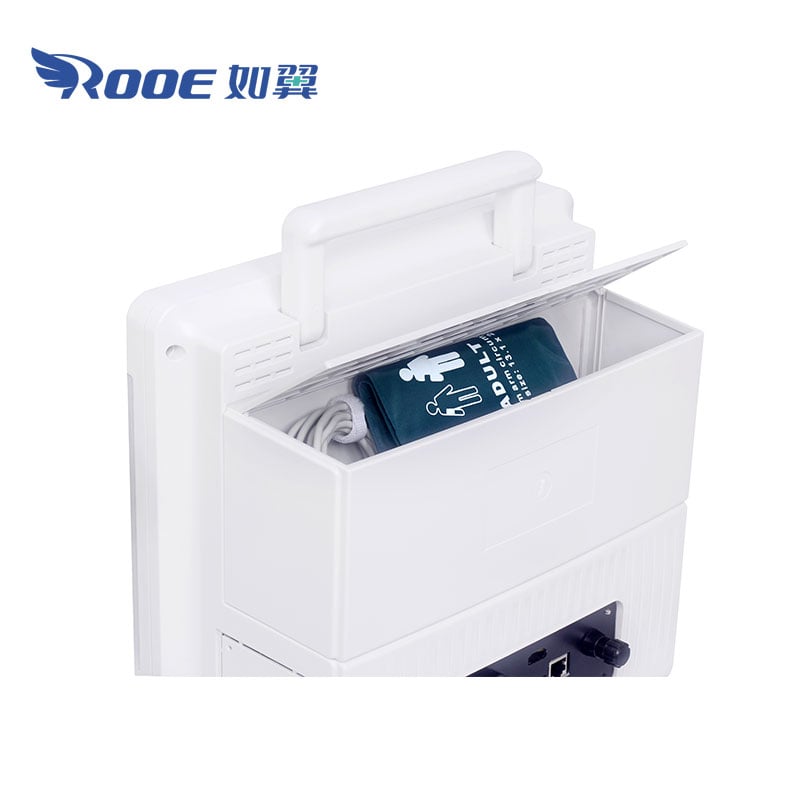

The unique Accessory Box design can keep the accessories in order at the backside of the monitor.

Core

1. Newly advanced A10 main board with Linux OS, calculating speed is 4 times faster than traditional products
2. Support storage of 2160 hours trend table and graph review, 2 hours waveform review, 2000 groups NIBP review and 2000 alarm events review

Body

1. 12.1 inch high-brightness TFT LED
2. Support display 9~13 waveforms
3. Support 7 channel ECG waveform display simultaneously
4. Optional HDMI output

Printer

1. Built-in high-speed 50mm thermal printer
(Brand: SEIKO, Japan)

Alarm

1. Three-level acousto-optic alarm
2. Sensor-off alarm
3. Paper out alarm
4. Support alarm review
5. Support alarm pause

Multi-display

1. Standard interface,
2. big font,
3. OxyCRG,
4. trend graph,
5. NIBP review and
6. full leads ECG interface.

Linux OS

1. Support operation with mouse and computer keyboard (option)
2. NIBP self-test mode: including overpressure test, static pressure test and air leakage test.
3. Generate ID automatically when register a new animal
4. Support medical history search by patient ID, name and mobile number
5. 18 types of Arrhythmia analysis and real-time S-T segment analysis and pacemaker detection
6. Drug calculation and titration table
7. Support multi-language display
8. Support online software upgrading by net/USB

Interface

1. Transducer socket
2. ECG
3. SPO2
4. NIBP
5. IBP 1 / IBP 2
6. TEMP 1 / TEMP 2
7. Mainstream EtCO2 / Side stream EtCO2
8. AG (multi-gas)

veterinary multiparameter monitor,multiparameter monitor,veterinary patient monitor,pet monitor,life support machine

Main Parameter
Standard Config. 12.1-inch LED, 3/5 Lead ECG, NIBP, SpO2, Pulse Rate, Temperature, Respiration
Optional Config. 1/2 IBP, 2-Temperature, Nellcor SpO2, Masimo SpO2

EtCO2 (Mainstream/Side stream /Micro stream),

Anesthesia Depth Monitoring (CSM module),

Multi-gas (AG) Monitoring

Optional Accessories: Printer, USB Mouse/Computer Keyboard Input Function,

HDMI Output, Wall-mounting, Trolley,

Remark: 1) User can NOT choose USB mouse function and WIFI at the same time.
