Gynaecology operating table are designed to provide accurate positioning with an easy electrical operation. These tables are ideal for use in all the major surgical process that requires precision. We offer Gynaecology operating table in different models based on the requirements of the clients.

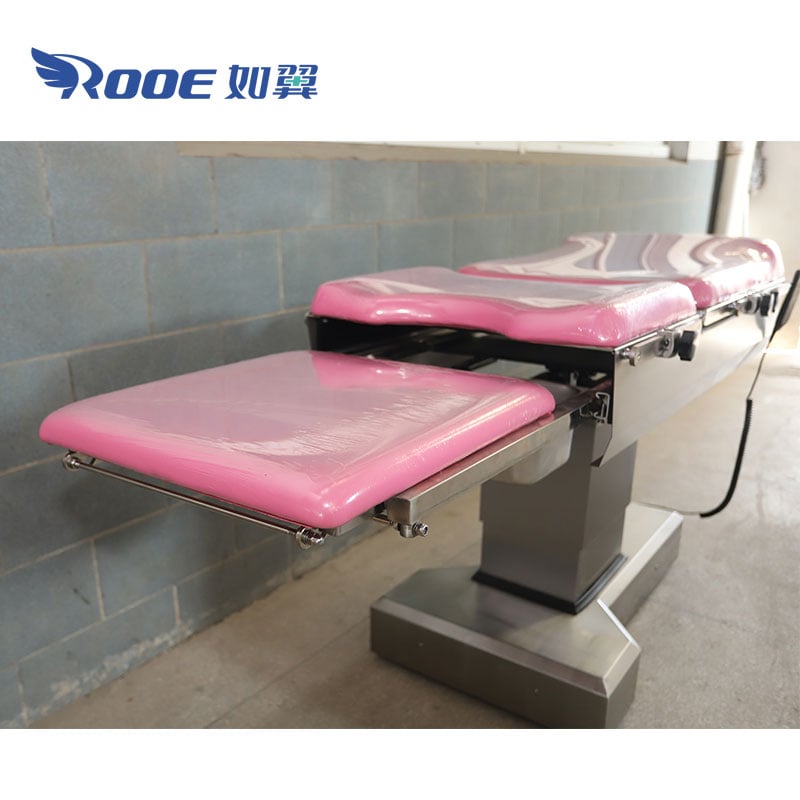

Obstetric delivery table (Price) is a complex and multifunctional electrically operated delivery bed that is primarily used for childbirth. Rather table body, column, base are made of 304 stainless steel material, corrosion resistance, easy to clean. Maternity Bed is also fitted with jig to mount the accessories and is secured to a sturdy tubular steel frame. The Gyno Table’s soft mattress is made of styrofoam with a smooth surface that is easy to clean, and the seat section can bend up and tilt down with the back section. This prevents the patient from slipping. The T-shaped base of Gynecological Table (Price) not only increases the contact area between the base and the ground, making it more stable, but also provides enough leg room for the work of medical staff, reducing fatigue.
1. The overall performance is very reliable and durable. The mattress mould of this series of products is integrated, seamless, antibacterial and easy to clean.
2. All shells and accessories are made of high quality 304 stainless steel, beautiful, easy to clean and preserve
3. Omnidirectional mobile embedded casters, made of ABS plastic material, noiseless and stable when moving. The pedal controls the braking function of the casters.
4. The power system adopts electric push rod design. The whole operation table of this series adopts motor up and down, front and back tilt, and up and down on the back.
5. Main lifting column, four times the safety factor bearing, square column lifting, ensure stable weighing.
6. Auxiliary table can be retractable under the bed, convenient to use.
7. The production bed is equipped with standard battery, which can support electric operation for 50-80 times, and can still maintain the operation of various functions required by the operator in special circumstances such as power failure.
8. The foot pedal can swing to both sides to adjust the height and extension rate of the patient’s legs, which is convenient for maternal to increase foot strength.
9. It is used by hospitals and clinics for various gynaecological examinations, diagnosis and surgical procedures. These include delivery, gynaecological surgery, diagnostic examination and emergency cesarean section. The patient’s position can be adjusted according to the actual situation.
Unique features: 1. Dirt basin. 2. the whole bed 304 stainless steel. 3. The leg frame is fixed very firmly. 4. Pink mattresses that are pretty and comfortable.
Main Specification | |
Main table length | 1300mm |
Width | 600mm |
Max. height of table top from floor | 1000mm |
Min. height of table top from floor | 750mm |
Auxiliary table size | 560×520mm |
Technical Parameters | |
Reversed tendelenburg | ≥15° |
Tendelenburg | ≥17° |
Back section raised from the horizontal | ≥76° |
Power supply | AC 220V±10%, 50Hz |
Standard Accessories: | |
Anesthetic Screen: | 1 Set |
Arm Support: | 2 Sets |
Knee Crutch: | 2 Sets |
Foot rest | 2 Sets |
Cushion: | 1 Set |
Grid hand: | 2 Sets |
