A-S106B Electric OB GYN Examination Table With Pneumatic Back For Clinic

The obstetrics and gynecology examination table is particularly suitable for the various requirements of the doctor, and the scope of operations includes obstetrics and gynecology, general examination and even osteopathic surgery. Electric lift height 390-460mm to remove all obstacles for your patients.

  • Product Description
  • Technical Parameters
  • Video

Electric OB GYN Examination Table With Pneumatic Back Description:

The OB GYN examination table with pneumatic back is the safest and most effective choice for patient consultation and examination.

Versatile design can sit most patients. Antibacterial seamless vinyl tabletop is easy to clean. Using a convenient hand-held remote control, the operator can reduce the height of the gynecology table to just 18 inches, thus providing more accessibility for patients with mobility difficulties.

The storage drawers can hold dresses, equipment, or anything else that needs to be kept nearby. Paper roll storage under backrest. The table features pull-out assist boards and retractable, adjustable stirrups, making it ideal for a variety of office-based check-ups.



gyn examination table,electric examination table,gynecology table

Electric OB GYN Examination Table Features:

1. Consist of tabletop(back plate,seat plate ,table body ,assistance plate, drawer and foot pedal),elevation column, base, linear actuator, drive parts, foot switch and accessories (waste basin).

2. Cushions are seamless and easy to clean. The detachable design makes it easy to change different colors of mats and also facilitates further cleaning.

3. The back section is adjusted by gas spring,there is paper roll rod equipped at the back side.The back section is adjustable from a full horizontal position to a chair position.

4. Hidden stirrups and retractable assist plates under the seat section. There’s also a front drawer for fetching and storing items during a pelvic exam.

5. Right and left stirrups which can be extended to different positions. The comfortable design of the stirrup helps to ease your patient into the lithotomy position.

6. Mute motor, convenient and flexible operation. Electronic height adjustment by manual remote control and foot pedal.

7. Easy to care for full laminate base with detrital edge.

8. Optional inspection lamp

gyn examination table,electric examination table,gynecology table



electric gynecology chair, medical exam table, clinic exam tables, electric gyn examination table

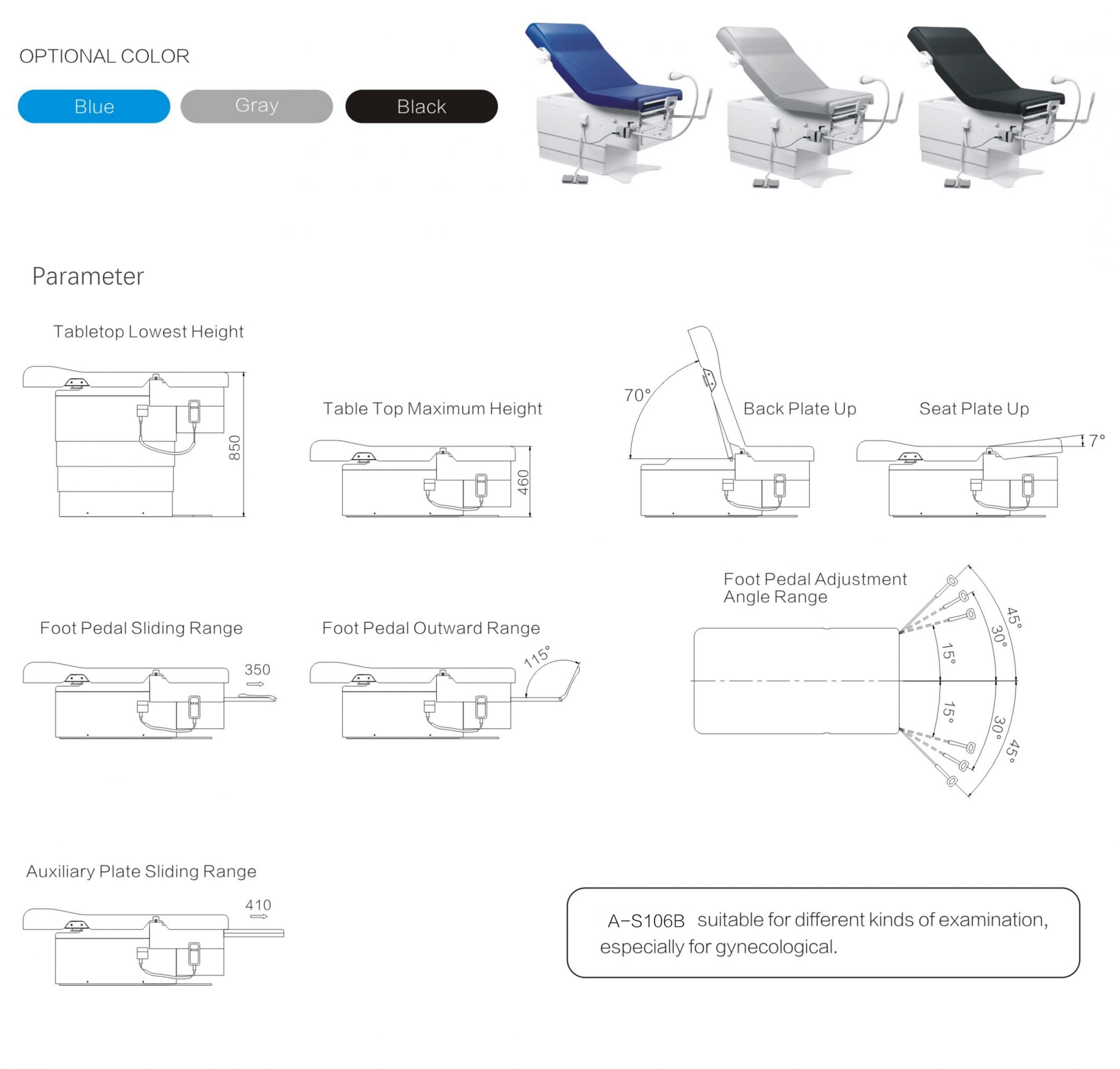

Model A-S106B
Length ≥1400±20mm
Width 720±20mm
Lowest height of tabletop 460±50mm
Distance of elevation 390±20mm
Seat plate up 7°±1°
Back plate up 70°±5°
Assistance plate 410±20mm
Foot pedal movement range 350±20mm
Foot pedal up 115°±5°
Foot pedal angle 45°±5°
Optional colour: gray, black, blue
