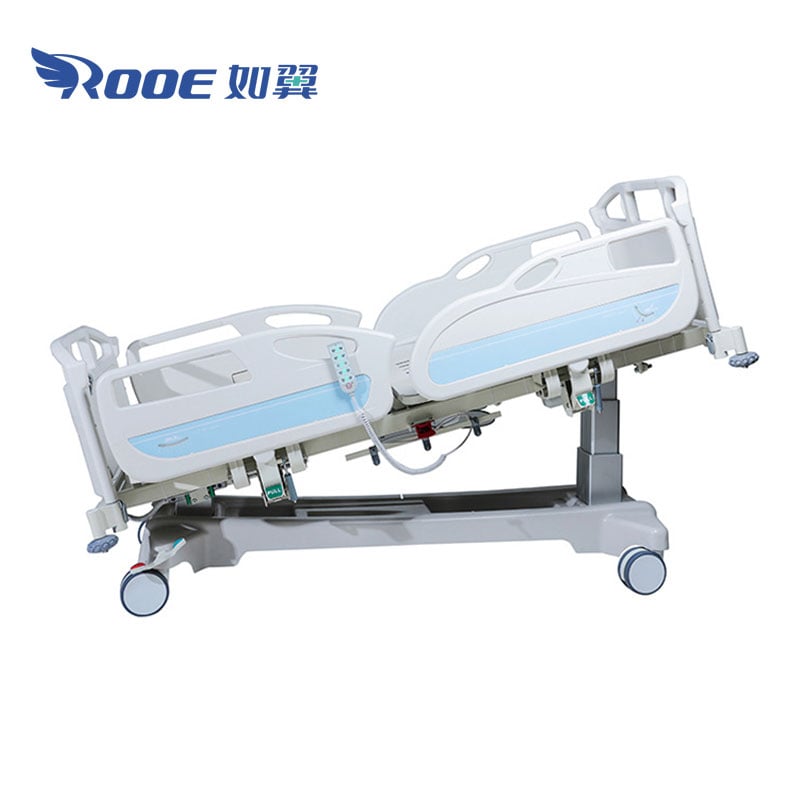

BIC801 Medical Tilt Bed Electric Adjustable Icu Hospital Bed With Foot Pedal Controls

Product Use:
A full electric hospital bed features electric motor controls that raise the head, foot and height of the bed frame with a push of a button. This type of adjustable electric bed is ideal for anyone who needs a hospital style bed for use at home, hospital or nursing home.

  • Product Description
  • Technical Parameters
  • Video
BIC801 Medical Tilt Bed Electric Adjustable Icu Hospital Bed With Controls Description:

The multi-purpose Medical Tilt Bed consists of a premium cold-rolled steel soft-jointed bed frame and 2 luxurious columns with adjustable beds. Icu Hospital Bed’s underbed pedal operating system is also a great way to simplify nurse operations. Adjustable Bed High quality ABS headboard can be used for emergency CPR. Adjustable Hospital Bed’s four-piece removable ABS handrail, adjustable by air spring, makes it easy for patients to get on and off the bed. Electric Hospital Bed Controls Quiet yet rugged manual remote controls provide reliable operation with a fully tested rugged construction and a maximum user weight of up to 250 kg.

BIC801 Medical Tilt Bed Electric Adjustable Icu Hospital Bed With Controls Features:

1.- The bed surface adopts cold rolled steel plate integral stamping process, stamping into a concave shape, four bed plate evenly perforated, and should be properly installed on the main frame, multi-ventilation design, breathable and convenient, with anti-slip function.
– The bed body is welded with square steel and the surface is sprayed with plastic, which is rust resistant and durable as a whole.
– The bed frame is solid and stable and can support at least 250 kg.
2. The head/end of the bed adopts ABS injection molding technology, which is anti-aging and antibacterial.
– Automatic locking device for head board and foot board. This feature is important in emergency situations, especially during cardiopulmonary resuscitation (CPR).
– The head and foot boards are equipped with ergonomic handles for easy implementation.
3. All adopt electric control, the controller has indicator light to show the working status. The use of easy to operate touch switch, to solve the mechanical keyboard service life is limited, keys due to continuous operation and failure. Manual controller of guardrail and nurse controller at the end of bed are set up to facilitate the operation of medical staff, and foot control system is added under the bed.
♦4. Medical ultra silent DC motor drive, stable and reliable performance, can achieve heart chair position, electric shock position, CPR position, examination position.
Column motor control system: Two column motor lifts allow for bed platform height adjustment, left and right tilting and trendlenburg and trendlenburg position, which also ensures bed stability.
♦5. The electric remote control provides the following functions:1.Backrest elevation 2. High and low elevation 4. Back and knee linkage 5. One-button CPR button for quick restoration 6. Night light 6. Heart chair position 7. Help to stand-uppostion
♦6. Central nurse control system: the nurse or supervisor can adjust all positions and find the patient’s comfortable and appropriate position.1Backrest elevation 2. Foot support elevation 3. High and low elevation 4. Trendelenburg position5. Reverse Trendelenburg position6. One-press CPR button for quick restoration 7. Left/right tilt 8. Night light 9. Heart chair position 10. Heart press position 11. Help to stand-up position
– Professional control panel system: LCD screen for viewing patient information. The advanced precise weighing sensor can monitor the patient’s weight in real time and give an alarm at the key point of the patient’s weight change, providing help for the treatment of medical staff. (optional)
♦7. Pedal control system: 1. Trendelenburg position 2. Anti-Trendelenburg position 3. The whole lift
8.- Four ABS guardrails on the side are equipped with Angle indicators, through which nursing staff can monitor the patient’s head Angle.
– Guardrail provides best fall protection. The guardrail can be folded with one key, convenient for patients to get on and off the bed. After being put down, it can be hidden under the bed plate to achieve zero clearance transfer. Guardrail safety switch is designed to be placed below the guardrail to avoid patient misoperation.
– Both sides of the bed are equipped with manual CPR with dampers that allow the backrest to slowly descend in the event of a power outage to ensure patient safety. The whole process can be performed with one hand.
9.Legs use rack adjustment structure, can manually adjust the height.
10. Four 6-inch 360° rotations with locking, free and directional three-stage seesaw central control locking device.
11. The four corners of the bed are equipped with anti-collision wheels made of plastic. The anti-collision wheels are protruding outside the bed body, which can effectively prevent the hospital bed from colliding directly with elevator, door frame and other planar obstacles during operation and use, ensuring a smooth transition.
12. Standard battery, which can provide power for body position adjustment in case of power failure. It can also be used with external power supply.
13. Four corners with infusion stand jacks and drainage hooks, infusion stand is optional
14. Assembly: The bed is fully assembled except for the side rails and headboard. No tools needed.

medical tilt bed,icu hospital bed,electric hospital bed controls,hospital electric adjustable bed,adjustable hospital bed


medical tilt bed,icu hospital bed,electric hospital bed controls,hospital electric adjustable bed,adjustable hospital bed
Related equipment:
Hospital Bed Air Mattress
Beside Cabinet
Over Bed Table
Attendant Chair
Patient Monitor

Specification
Model BIC801
Measure
Length: 2130mm
Width: 1050mm
Bed Base Height Range
Maximum Height 880mm
Minimum Height 480mm
Technical Features
Backrest max upward angle 0-75°±10°
Footrest max upward angle: 0-18°±10°
Lateral left tilt 0-17°
Lateral right tilt 0-17°
Trebdelenburg 0°~≥12°
Anti-Trebdelenburg 0°~≥12°
One button heart chair position 0-90°
Loading Capacity
Loading Capacity 250kg
Power supply 220VAC or 110VAC   Frequency: 50-60HZ
Power Plug:EU type standard if other type, confirm each order
Optional Matress
IV POLE
The Weighing Function
Extension bedplate
Over Bed table
beside locker
