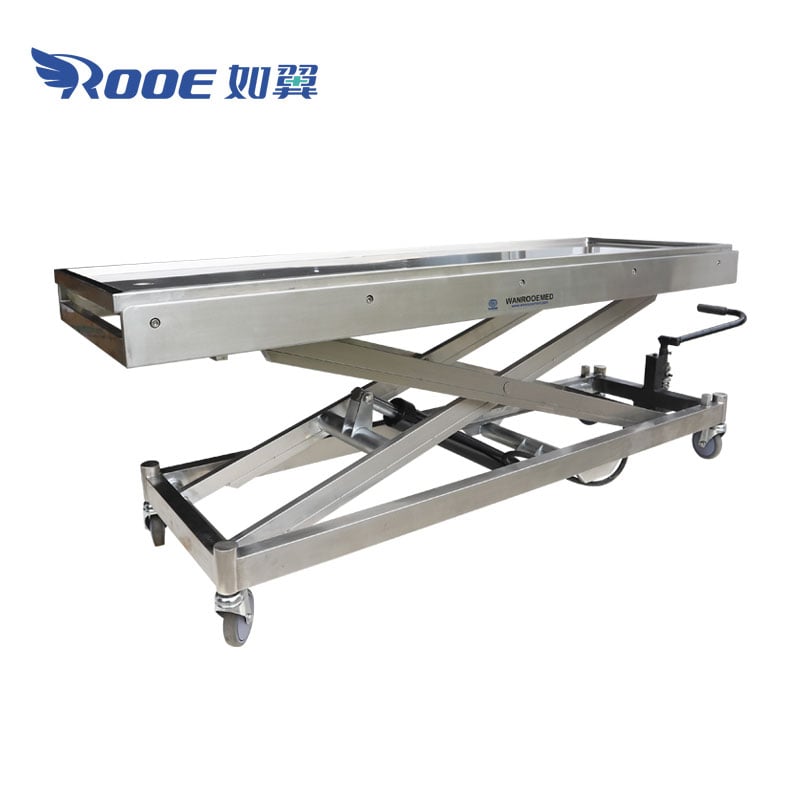

GA500A Manual Hydraulic Mortuary Scissor Lift Body Cadaver Trolley

The lift- and transport cart has a rugged, torsion resistant frame structure smoothly running, with integrated 12 Volt hydraulic unit for vertical adjustment enables easy handling. A holding device secures the body tray or coffin plate laying on it. The slide handle of the lift and transport truck can be removed.

  • Product Description
  • Technical Parameters
  • Video

Manual Hydraulic Mortuary Scissor Lift Description:

The mortuary scissor lift, precise lifting control, safe and reliable. This is a high quality hydraulic body lift. With a handle to adjust height, the trolley controls drop position and speed at will for greater flexibility and comfort. It’s used to move autopsies, put bodies into cadaver freezers and so on.

Manual Hydraulic Mortuary Scissor Lift Features:

1.The lifting cart is composed of chassis, lifting bracket moving tray, etc
2.Special mobile lift cart for autopsy table or cadaver cooler. Used for moving anatomy
3.It is equipped with a tray, a water outlet and a table with four corners concave design for convenient washing and disinfection
4.Movable tray with handle on both sides and automatic lock, movable hand-controlled tray (optional)
5.The lifting bracket is equipped with 5 stainless steel rollers for moving the tray
6.The side of the cart has a stainless steel push and pull arm-guard, easy formobile transport
7.Equipped with shear foot hydraulic push rod lifting, smooth, smooth, no noise.
8.Foot hydraulic lift pedal under the handle of the cart, easy to operate
9.When in use, if the lifting stop, need to fill hydraulic oil, filling hole in the inside side
10.No stage lifting, lifting height adjustment range is 420mm to 1500/2000mm, bearing 180KGS
11.When the foot steps on the lifting pedal, the table of the cart rises and falls, and when the foot steps on the pedal, the table of the cart falls
12.Equipped with 4 mute universal wheels, including 2 brake wheels, to prevent movement when standing


mortuary scissor lift,cadaver trolley,mortuary hydraulic body lift,manual hydraulic scissor lift,mortuary body lift



Model GA500A
Type Single scissors Double scissors
Size 2200*650mm
Material 304 Stainless Steel
Height 420-1500mm 420-2000mm
Loading 180kgs

Video

Single scissor:

Double scissors:
