Manual Hydraulic Operating Table With Electric Control Introduction:
This Hydraulic Operating Table is a high-performance surgical table combining electric hydraulic control with an independent pure mechanical foot pump system. Designed for modern operating rooms, it offers exceptional safety, reliability, and imaging compatibility. Even in the event of total power failure, the table remains fully operational, ensuring uninterrupted surgical procedures.
Manual Hydraulic Operating Table With Electric Control Features:
1.Electric & Mechanical Dual Control System

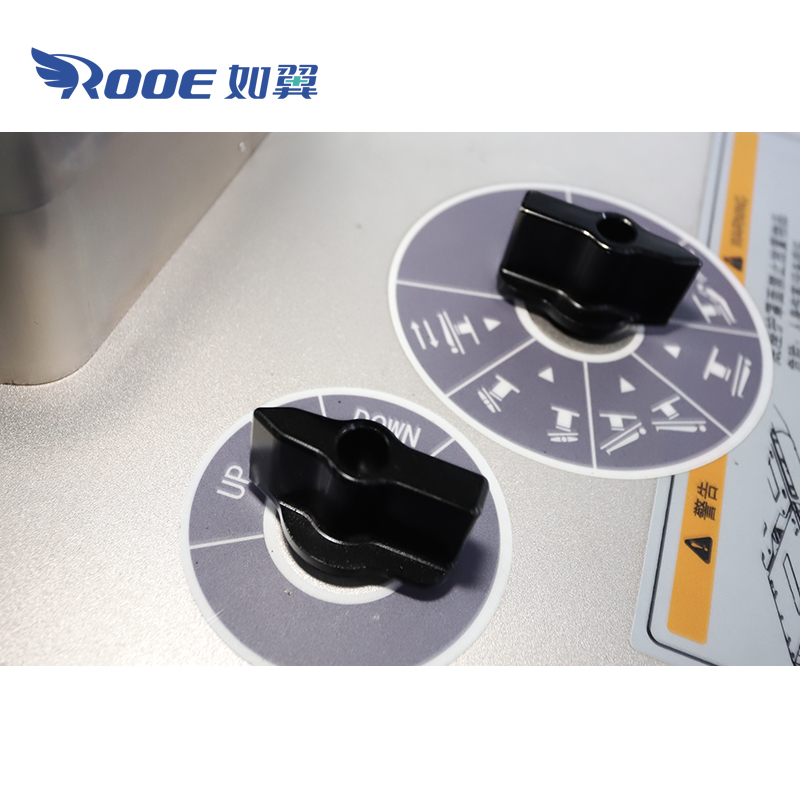

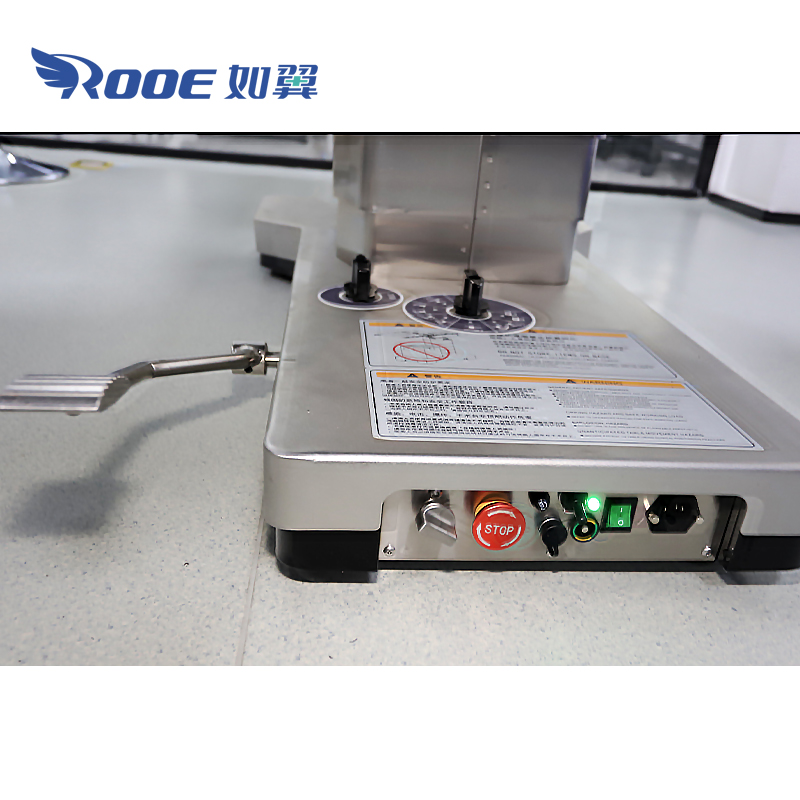

In addition to full electric hydraulic control, the base is equipped with a pure mechanical hydraulic foot pump. Through gear shifting and foot-operated pumping, height and position adjustments can still be performed when both external power and batteries are unavailable.
2.Full Electric Hydraulic Positioning

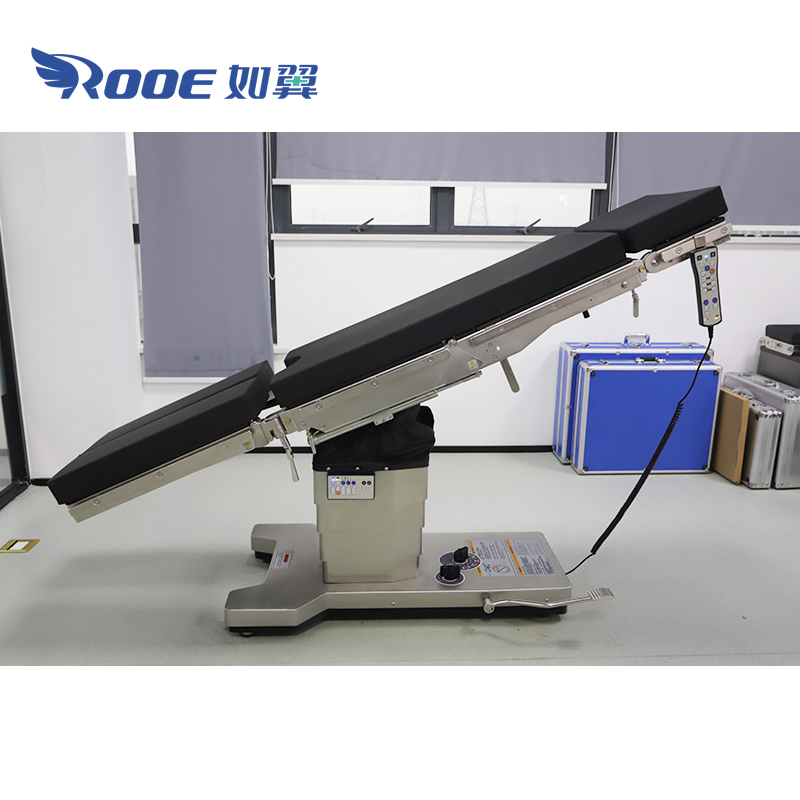

Key movements including height adjustment, Trendelenburg and reverse Trendelenburg, lateral tilt, back plate adjustment, tabletop sliding, and braking are all controlled by a stable electric hydraulic system for smooth and precise positioning.
3.Multi-Section Modular Tabletop
The table consists of six sections: head plate, upper back plate, lower back plate, seat plate, and left and right split leg plates. The modular design allows flexible configuration for various surgical disciplines.
4.Advanced Control & Position Memory
Equipped with wired and wireless LCD controllers and an auxiliary table control panel, the system supports real-time status display and position memory, enabling quick recall of commonly used surgical positions.
5.Carbon Fiber Radiolucent Tabletop
The tabletop is made of carbon fiber, providing excellent X-ray transparency. Combined with a 350 mm longitudinal sliding function, it is ideal for C-arm imaging, spinal, trauma, and interventional procedures.
6.Quick-Release Components
Head plate, back plates, and leg plates adopt a push-button quick-release design, allowing fast installation, removal, and easy cleaning without tools.
7.High Load Capacity & Stable Base
With a maximum safe working load of ≥520 kg, the reinforced base ensures outstanding stability. An automatic leveling system and large swivel casters maintain balance even on uneven floors.
8.Comfortable & Safe Mattress System
The operating table features an 8 cm dual-layer pressure-relieving memory foam mattress with anti-static properties. The material is non-toxic and biocompatible, helping reduce the risk of pressure ulcers during long procedures.
9.Built-in Battery Backup
A built-in rechargeable battery with intelligent charging and low-power alarm allows the Hydraulic Operating Table to operate for extended periods without external power.
