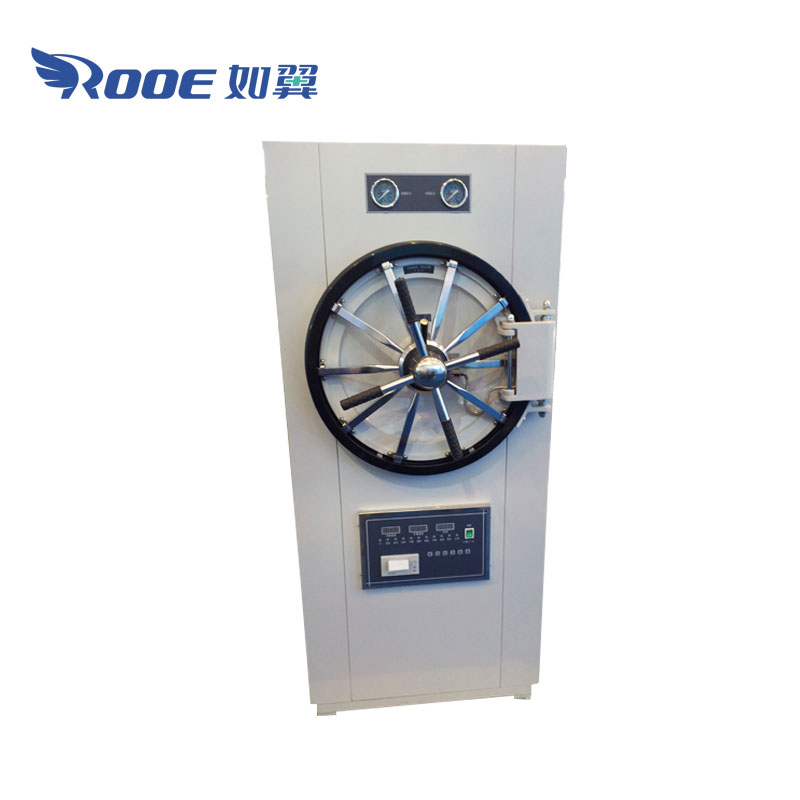

WS-YDB Large Capacity Rectangular Horizontal Cylindrical Autoclave For Surgical Instrument

Horizontal autoclave, which adopted the way of gravity exchange to releaseing the cold air from the chamber more completely to ensure the reliable sterilization. The control system automatically adjust the steam inlet and outlet according to chamber temperature during sterilzation. This unit ideal equipment for clinics, scientific research institutes and other organizations to sterlize surgical instruments,fabric glasss,culture medica etc.

  • Product Description
  • Technical Parameters
  • Video

Large Capacity Rectangular Horizontal Cylindrical Autoclave Features:

1.Sterilizing course automatic sterilization controlled,easy to operate.
2.With drying function,suitable dressing drying.
3.With over-temperature,over-pressure auto-protect device.
4.The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can’t be start on if the door doesn’t close well.
5.The safety value will be open automatically when the inner pressure over 0.24MPa,and the steam be exhausting to the water tank.
6.The power will be cut-off automatically,cut-off the water and alarm when the machine lacking water.
7.The chamber of the front loading autoclave is made of stainless steel.

horizontal cylindrical autoclave,horizontal rectangular autoclave,large capacity autoclave,surgical instrument sterilization,digital autoclave

Technical Data Model WS-150YDB WS-200YDB WS-280YDB
Sterilizing chamber volume 150L(φ440*1000mm) 200L(φ515*1000mm) 280L(φ600*1000mm)
working pressure 0.22 MPa
working temperature 134℃
Adjustment of temperature 40℃- 134℃
Time of sterilization 0-99 min
Time of drying 0-99 min
Heat average ≤±2℃
Power 9KW/380V 50Hz 9KW/380V 50Hz 12KW/380V 50Hz
Dimension 1400*650*1600 1400*750*1700 1520*910*1900
Transport dimension 1560*820*1820 1560*910*1880 1680*1080*2100
G.W/N.W 430/340 KG 436/350 KG 570/462 KG
