IV Fluid Infusion Workstation Multi Channel Infusion Pump Cart Description：

The infusion workstation is one of the most advanced and popular pump combinations recently, allowing each pump to be interconnected via a relay mode. Real intelligent infusion has been realized, making the whole process more accurate and efficient, which is in great demand in some high-end hospitals, especially ICU and NICUs.

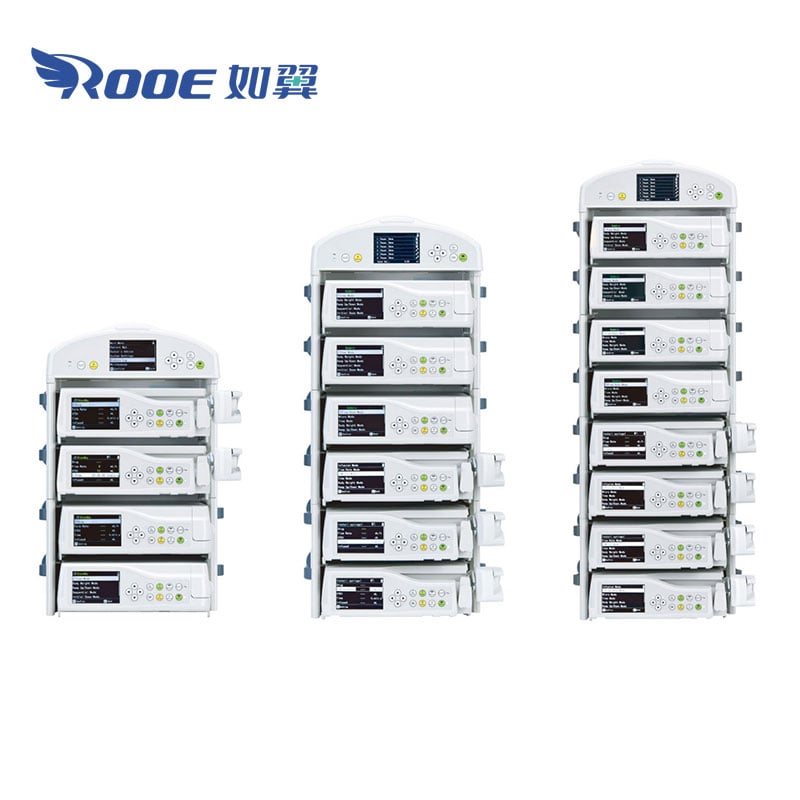

The multi channel infusion pump is characterized by its modular design. Up to 8 infusion pumps and injection pumps can be stacked in the rack as needed and assembled without tools. The iv fluid infusion workstation is convincing for its simple operation and amazing stackability, which provides hospital staff with great flexibility.

infusion workstation,multi channel infusion pump,iv fluid infusion

IV Fluid Infusion Workstation Multi Channel Infusion Pump Cart Features：

Workstation:

1. The new stacked design brings maximum combination flexibility for a variety of infusion scenarios

2. The syringe and infusion pump can be combined in the same workstation for the convenience of doctors and nurses.

3. 5ml, 10ml, 20ml, 30ml, 50ml, 60ml syringes can be used, compatible with any standard infusion pump.

4. Smart alarm systems provide more obvious indications.

5. 3.5-inch touch screen with real-time monitoring, data review, alarm recording and drug management functions.

6. Accurate infusion speed provides high precision and consistent performance for long-term infusion.

7. Multiple data ports, including USB ports, nurse call ports, and network cable ports

Injection Pump/Infusion Pump Main Features:

1. All medical pumps support cascade function and can be combined with bedside infusion workstation to form bedside infusion management system

2. 3.5 “large full-color LCD screen, easy to use

3. The bottom of each pump is designed with slots, which can be stacked with multiple pumps to save space and meet clinical needs

4. Equipped with intelligent large-capacity lithium battery, battery life up to 10 hours, and real-time detection of power

5. Support WiFi transmission, wireless networking to the central workstation and hospital electronic information system

6. Can be hung and lifted, flexible transfer, and transfer process can be transmitted through WIFI

7. Independent multi-CPU control: multi-channel independent sound and light alarm to ensure safe infusion

8. Support the function of drug library and DERS intelligent drug protection system to ensure the drug safety of patients

9. Built-in data storage, data storage ≥10000, more than 8 years of memory storage, review treatment history at any time

infusion workstation,multi channel infusion pump,iv fluid infusion

Infusion pump:

1. It has eight working modes, including speed, trace, time, weight, gradient, sequence, first dose and number of drops, which is closer to clinical application

2. It can be connected with external drop number sensor to realize closed-loop accurate infusion

Injection pump:

1. It has seven operating modes, including speed, trace, time, weight, gradient, sequence and first dose, which is closer to clinical application

Model	WRIP-9021N
Applicable Pump	Infusion Pump，Syringe Pump
Alarms	Same as syringe pump and infusion pump
Features	Self-checking, LCD display, automatic power switching, mute key,system memory, key locker, night mode
Data Interface	Wi-Fi, wired, USB, nurse call, drop sensor
Drug Library	Available
Occlusion Sensitivity	12 levels (20-130 kPa, in 10 kPa increments)
Occlusion Unit	kPa, mmHg, psi, bar
History Log	10,000 events
Alarm Volume	8 levels
Auto. multi-channel relay	Available
Power Supply, AC	AC100-220V 50/60Hz
Battery	DC7.2V, rechargeable
Battery Life	4 hours
Working Temperature	10-40°C
Relative Humidity	30-75%
Atmospheric Pressure	760-1060 hpa
Size	300200300mm
Weight	2.8 kg
Waterproof	IPX3
Safety Classification	Class II

Model	WRIP-6061N
Syringe Size	5, 10, 20, 30, 50/60 mL
Applicable Syringe	Compatible with syringe of any standard
VTBI	0.1-99999.99 mL (in 0.01 mL increments)
Infused Volume	0-99999.99 mL (in 0.01 mL increments)
Infused Volume	Syringe 5 ml: 0.1-100 ml/h Syringe 10 ml: 0.1-300 ml/h Syringe 20 ml: 0.1-600 ml/h Syringe 30 ml: 0.1-800 ml/h Syringe 50/60 ml: 0.1-1500 ml/h 0.1-99.99 mL/h in 0.01 m/h increments 100-999.9 mL/h in 0.1 m/h increments 1000-1500 mL/h in 1 ml/h increments
Bolus Rate(Manual, Auto)	50 m/h-1500 m/h (in 0.01, 0.1, 1 mL increments)
Bolus Volume	0.1-50 mL (in 0.1 mL increments)
Anti-Bolus	Automatic
Accuracy	±2% (mechanical accuracy≤1%)
Infusion Mode	Rate mode, micro mode, time mode, body weight, initial dose mode,sequential mode, ramp up/down mode, drop mode
KVO Rate	0.1-10 mL/h (in 0.1 mL/h increments)
Infusion Mode	Occlusion, near empty, end program, low battery, end battery,no battery, AC power off, motor malfunction, system malfunction,standby, syringe installation error, syringe drop off
Additional Features	Automatic power switching, automatic syringe identification,mute key, purge, bolus, anti-bolus, system memory, key locker,change flow rate without stopping the pump
Drug Library	Available
Occlusion Sensitivity	High, medium, low
Docking Station	Stackable up to 4-in-1 or 6-in-1 Docking Station with single power cord
Occlusion Sensitivity	12 levels (20-130 kPa, in 10 kPa increments)
Occlusion Unit	kPa, mmHg, psi, bar
History Log	100,000 events
Alarm Volume	8 levels
Auto. multi-channel relay	Available
Power Supply, AC	AC100-240V 50/60Hz
Battery	DC14.4V, rechargeable
Battery Life	10 hours at 5 ml/h
Working Temperature	5-40°C
Relative Humidity	15-80%
Atmospheric Pressure	860-1060 hpa
Size	860-1060 hpa
Weight	2.5 kg
Waterproof	IPX3
Safety Classification	Class II , type CF

Model	WRIP-8081N
Pumping Mechanism	Curvilinear peristaltic
IV Set	Compatible with IV sets of any standard
Flow Rate	0.1-2000 mL/h (in 0.01, 0.1, 1 mL /h increments)
Bolus Rate (Manual, Auto)	50-1500 mL/h (in 0.01, 0.1, 1 mL/h increments)
Bolus Volume	0.1-50 mL (in 0.01 mL increments)
Accuracy	±3%
VTBI	0.1-99999.99 mL (in 0.01 mL increments)
Infused Volume	0-99999.99 mL (in 0.01 mL increments)
Infusion Mode	Rate mode, micro mode, time mode, body weight, initial dose mode,sequential mode, ramp up/down mode, drop mode
KVO Rate	0.1-10 mL/h (in 0.1 mL/h increments)
Alarms	Occlusion, air-in-line, door open, near end, end program,low battery, end battery, AC power off, motor malfu unction,system malfunction, standby, drop error
Additional Features	Automatic power switching, mute key, purge, bolus, system memory,key locker, change flow rate without stopping the pump
Drug Library	Available
Occlusion Sensitivity	12 levels (20-130 kPa, in 10 kPa increments)
Occlusion Unit	kPa, mmHg, psi, bar
History Log	100,000 events
Air-in-line Detection	Ultrasonic detector 40-800 μL (in 20 μL increments)
Double Bubble Sensor	Available
Alarm Volume	8 levels
Auto. multi-channel relay	Available
Drop Sensor	Optional
Power Supply, AC	AC100-240V 50/60Hz
Battery	DC14.4V, rechargeable
Battery Life	10 hours at 25 ml/h
Working Temperature	5-40°C
Relative Humidity	15-80%
Atmospheric Pressure	860-1060 hpa
Size	24017687 mm
Weight	2.5 kg
Waterproof	IPX3
Safety Classification	Class II, type CF
