BIC800 ICU Hospital Bed Extension Electric 8 Function Cardiac Chair Position Hospital Bed

The BIC800 Electric Hospital Bed provided by WANROOEMED is an American style electric adjustable bed that is with good quality, excellent function and affordable price comparing with American made hospital bed. This new adjustable bed for overweight patients provides progressive mobility with flexible wound and pulmonary therapies.

  • Product Description
  • Technical Parameters
  • Video

ICU Hospital Bed Extension Electric 8 Function Cardiac Chair Position Hospital Bed Description:

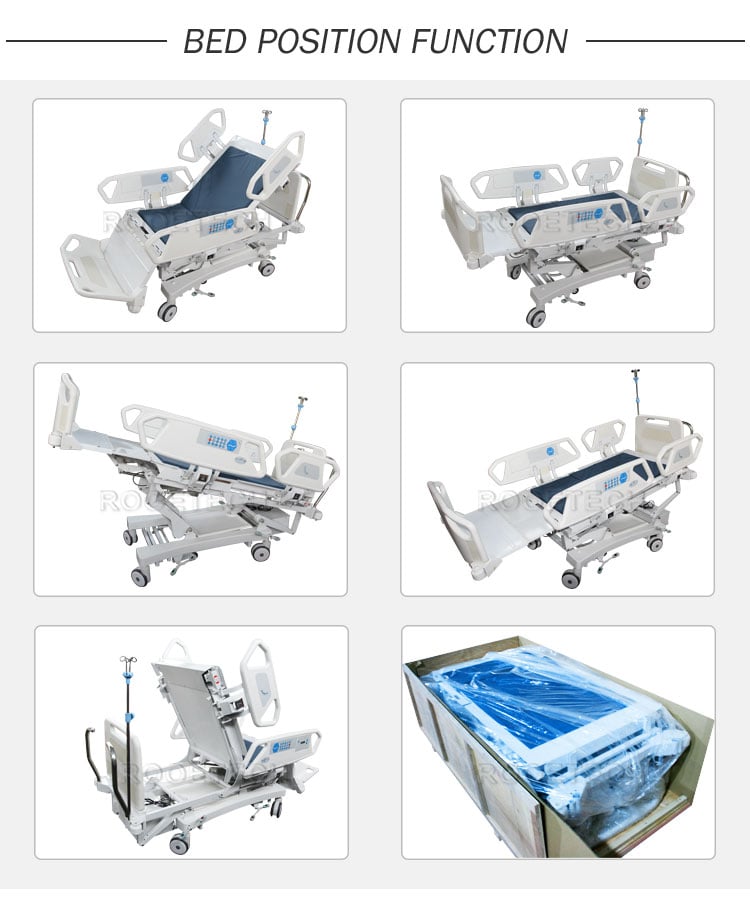

icu hospital bed has the functions of backrest, leg brace, height adjustment, Trendrember position and reverse Trendrember position adjustment. One of the features of the bed is its extended length, and the hospital bed extension helps minimize pressure on the patient’s heels. In the process of daily treatment and care, according to the needs of patients and nursing needs, appropriate adjustment of the position of the patient’s back and legs, help to relieve the pressure on the back and legs, promote blood circulation.

The electric bed adopts retractable side rail design, which is convenient for patients to get on and off the ICU bed. Using touch panels and remote controls, the cardiac chair position hospital bed is a great job for patients, caregivers and physicians to handle power hospital bed.

icu hospital bed,hospital bed extension,hospital bed electric,cardiac chair position hospital bed,power hospital bed

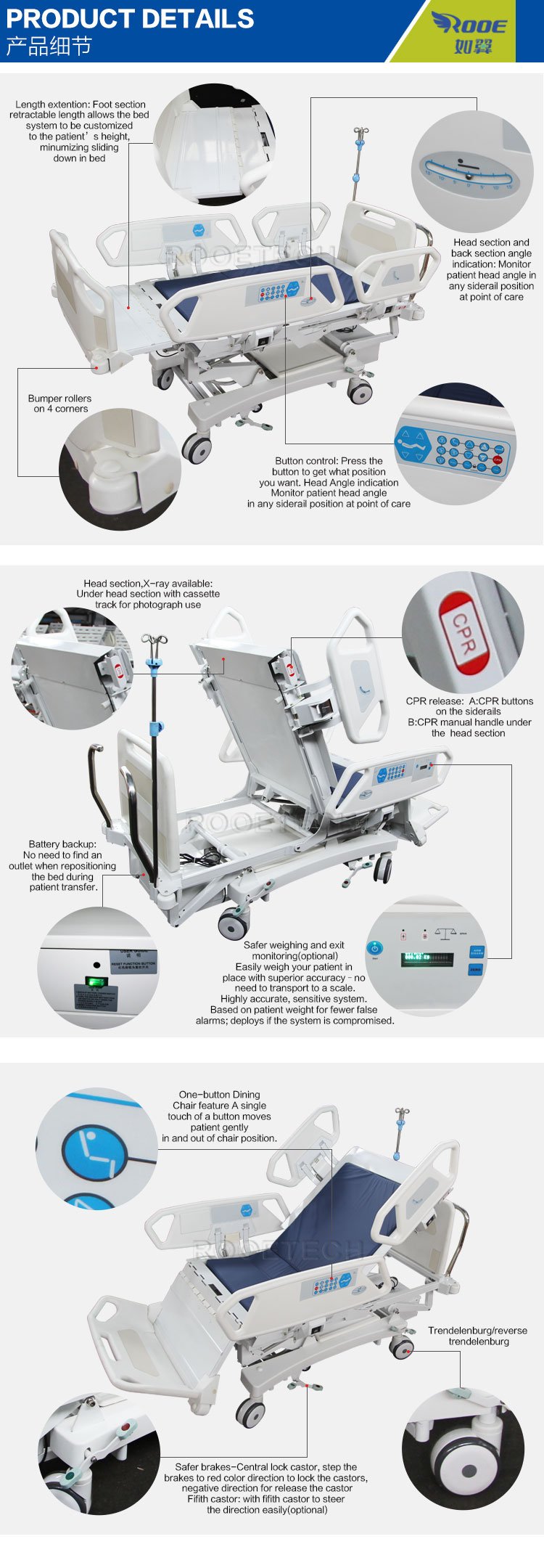

ICU Hospital Bed Cardiac Chair Position Hospital Bed Features:

1.Bed frame and leg are all made of cold-rolled steel plate and tube and coated by electrostatic spray after twice phospatization.

2. 4 Part steel bed plate, the back plate is electroplated plate, X-ray available.

3. It is equipped with LINAK motor imported from Denmark which is quiet and noiseless and able to support over 250kgs.

4. The bed has an extended length, which is more convenient to take care of patients.

5. The Head and foot board, side Rails are all made of imported PP materials. The Head and foot board are convenient to be disassembled, and can double as CPR first aid to meet clinical needs.

6. 12.5cm centralized control of high strength, high wear resistance silent casters, so that the bed movement is flexible, light and convenient.

7. Easy lifting ABS guardrail, two pieces on each side, anti-collision to ensure patient safety.

– The embedded controller is located on two guardrails at the feet and the headside guardrails have an Angle indicator for the backrest.

– External panels for nursing staff and inner panels for patients to prevent transmission of infection.

– The outer side can independently operate Hi-LO, back, knee, Trendlenberg position, CPR button, one button chair position, quickly restore the horizontal state of the bed board in emergency.

8. Electric/manual CPR: One-click operation of electric CPR is simple and convenient. Manual CPR can make the backrest return to the emergency position in the case of insufficient power to ensure patient safety. It is equipped with damping device to prevent the backrest from falling instantaneously and can be operated with one hand.

icu hospital bed,hospital bed extension,hospital bed electric,cardiac chair position hospital bed,power hospital bed



9. Built-in emergency backup battery can maintain all functions in case of power failure.

10. There are 4 holes at the end of the bed to assemble the liquid holder.

11. There are anti-collision wheels around the bed to reduce the risk of moving.

12. With night light system.

13. Weighting scale system(optional)



Specification
Model BIC800
Measure
Length: 2020-2230mm
Width: 1050mm
Bed Base Height Range
Maximum Height 1000mm
Minimum Height 500mm
Technical Features
Backrest max upward angle 0-75°
Footrest max upward angle: 0-45°
Trebdelenburg 0°~≥10°
Anti-Trebdelenburg 0°~≥10°
One button heart chair position 0-90°
Loading Capacity 250kg
Power supply 220VAC or 110VAC   Frequency: 50-60HZ
Power Plug:EU type standard if other type, confirm each order
Optional Matress
IV POLE
The Weighing Function
Over Bed table
beside locker
