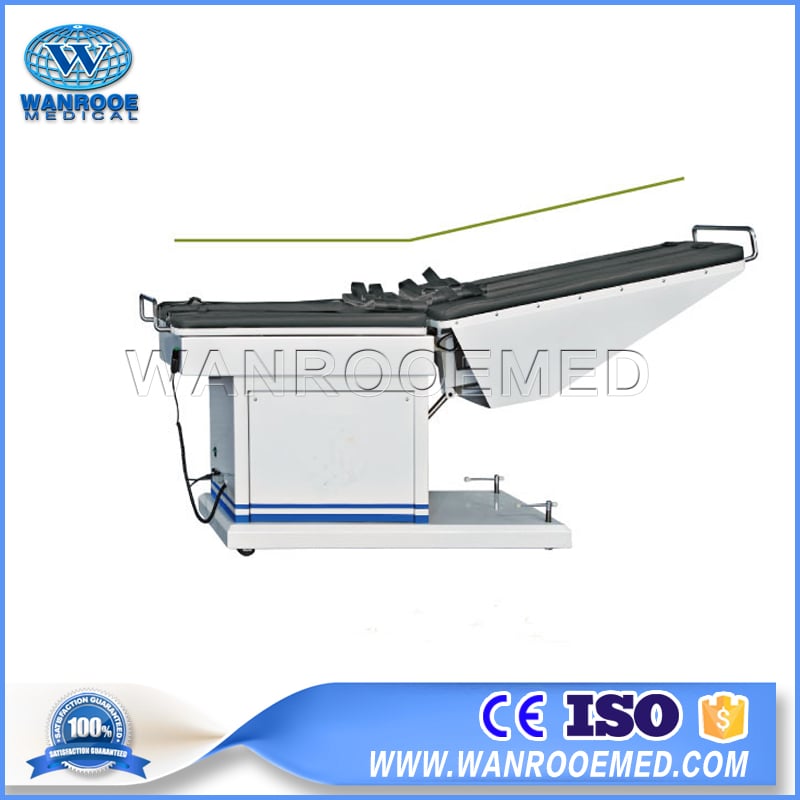

DA-100B/100B II Hospital Traction Beds Therapy Orthopedic 3D Lumber Traction Bed

Neck, shoulder, waist and leg pain is a common and frequent disease, which has attracted the attention of the national medical community. The device is a three-dimensional traction bed for the lumbar and cervical spine. The Chinese traction bed strictly controls the traction force and Angle, so that the treatment of spinal injuries can reach the most scientific level.



  • Product Description
  • Technical Parameters
  • Video

Hospital Traction Beds Therapy Orthopedic 3D Lumber Traction Bed Description:

Hospital traction Bed is controlled by microcomputer CPU software, high sense light touch key setting program, linear motor is used to achieve traction action, and advanced OEM electronic sensor is used to control traction force, with automatic compensation function, which further enhances the stability, reliability and accuracy of treatment, and reduces the noise of the whole machine under working condition.

Traction Beds Therapy is suitable for the treatment of cervical spondylosis, lumbar vertebrae disease, lumbar muscle strain, hyperosteoplasia, bone and joint displacement and other diseases.

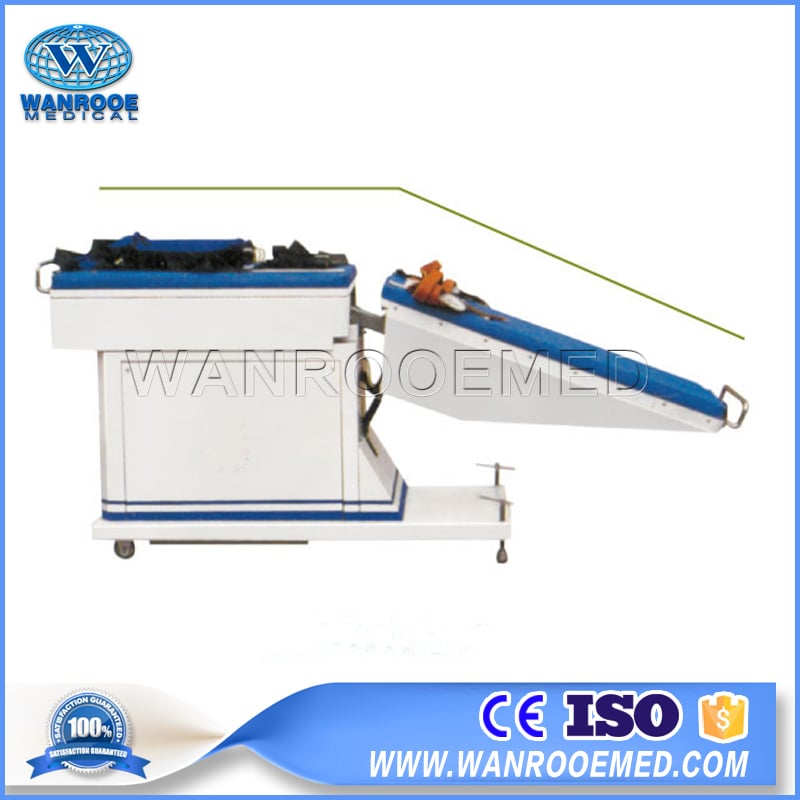

DA-100B II 3D lumber Traction Bed has added the function of anti-traction. The patient can pull both ways when using lumbar traction, which is complementary with longitudinal traction. It has a unique therapeutic effect on lumbar diseases.

Lumbar traction table absorbs the traditional method of “traditional Chinese medicine theory” and principle, and uses medical instruments to treat back and leg pain. It is controlled by microcomputer and replaces the old operation mode. Orthopedic traction bed helps the medical personnel reduce the labor intensity and overcome the defects caused by the operation mode. Thus, a good therapeutic effect was achieved.

hospital traction bed,traction beds therapy,3d lumber traction bed,lumbar traction table,orthopedic traction bed

Hospital Traction Beds Therapy Orthopedic 3D Lumber Traction Bed Features:

1. Cervical &lumbar traction controlled by integrated module and microcomputer software control.

2. All the operation: total traction time, traction force, intermittent time, traction mode etc is controlled by microcomputer, simple traction parameters key-in method

3. Direct-current motor (good stability and reliability, reducing the noise)

4. Used for cervical and lumbar traction can respectively or simultaneously implement the cervical or lumbar traction for two patients.

5. Three-dimensional traction: longitudinal traction, rotating traction, angle traction. Three-dimensional traction can be used individually, combinationally.

6. Traction force employs the  electric sensor. Automatic compensation of the traction force, when the actual traction force is no more than 10% of the setting value, the traction force will compensate to the setting value.

7. Eight traction modes for choosing.

8. 20 curing cases storage and read-out functions.

9. Multiple security designs: Patient Emergency Retreat Switch and Medical Staff Operation Emergency Retreat Key.

10. Lumbar vertebra illness: lumbar disc projection, denaturation confusion, strain, dislocation & in-complete paraplegia & hemiplegia complicated symptoms.

cervical vertebra illness: traumatic neck fracture, dislocation, dizziness, headache, unusual pressure, eyesight & language obstacle .(According to the disease status, it could take resupine or prostrate traction.)

11. Digital/LCD/Touch screen for you choosing.

Model DA-100B DA-100B II
Supply: 220V/50HZ
Power: 100VA 300VA
Product Size(L*W*H): 2450*600*720mm 2480*600*730mm
Packing Size(wooden case, 1pc/case): 2580*680*780mm 2580*690*800mm
N.W.: 125kg 115kg
G.W.: 145kg 140kg
Lumbar traction parameters:
Slow traction distance: 0~200mm
Swing angle: -40°~40°
Forming angle: -10°~20°
Total traction time: 0~60min 0~99min
Traction time: 0~9min
Intermittent time: 0~90s
Traction force: 0~99Kg
Cervical traction parameters:
Traction distance: 0~300mm
Total traction time: 0~60min 0~99min
Traction time: 0~9min
Intermittent time: 0~90s
Traction force: 0~30Kg
