The simple design of the transport stretcher provides safe and efficient transport with economic value.
1. The transfer device is used to transfer the patient automatically between the operation table (or medical bed) and the device without any move action by the operator. It can effectively avoid causing any further injury to the patient to protect the patient and reduce operator’s physical intervence during the transfer course.
2. The device height is adjustable to any types of medical bed or operation table.

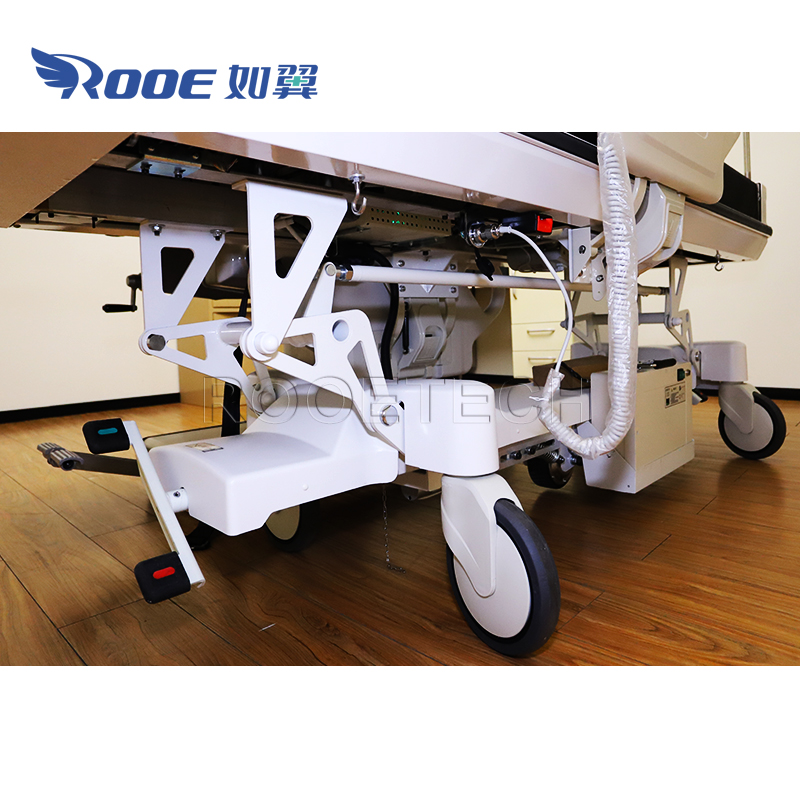

3. The foot brake is equipped to control 4 wheels which can be used to lock the device during the transfer procedure.
4. The device has retractable safety side rails on the both sides to protect the patient and it also has IV pole.

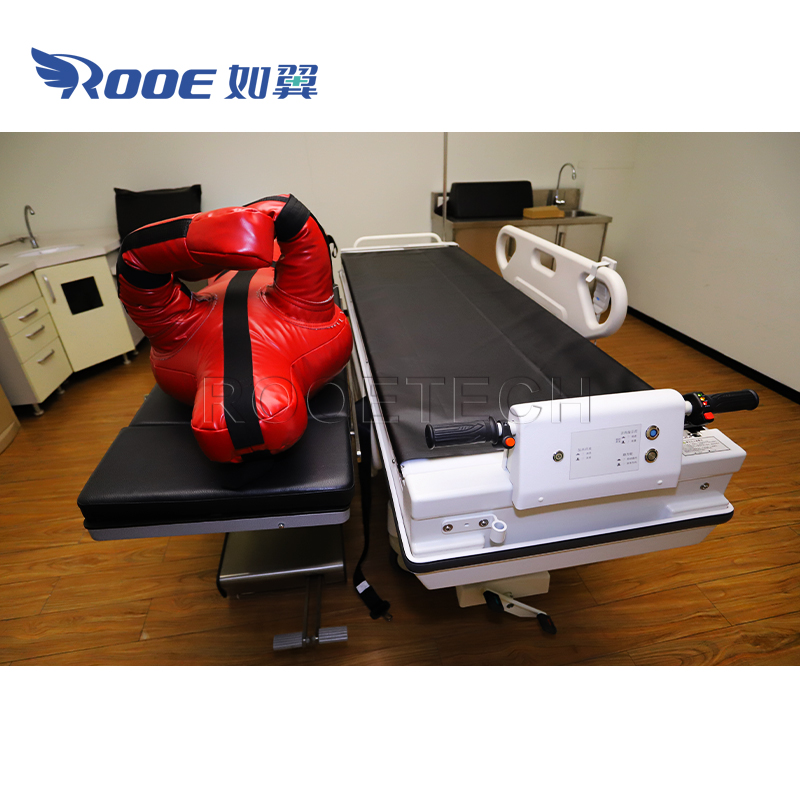

5. It is easy to use hand control panel to transfer the patient on the operation table or hospital bed.
6. Storage batteries make it safe and convenient to operate and use the transfer vehicle.
Model | BD26C1 |
Overall dimension: | 2020*680mm(L*W) |
Height adjustment(Bed board to ground): | 590mm-880mm |
Distance of movement board: | 510mm |
Speed of movement board: | 30mm/s |
Net Weight: | 242kg |
Load capacity: | 135kg |
Storage Battery: | (12V,13AH)*2PCS |
Input power: | AC220V,50Hz |
