These devices are employed in hospitals, clinics and rehabilitation facilities to move patients who cannot get around on their own. Some are mobile, while others are attached to a wall or ceiling. Pediatric, bariatric and other models are designed for a particular type of patient. Standers are another form of patient lift.

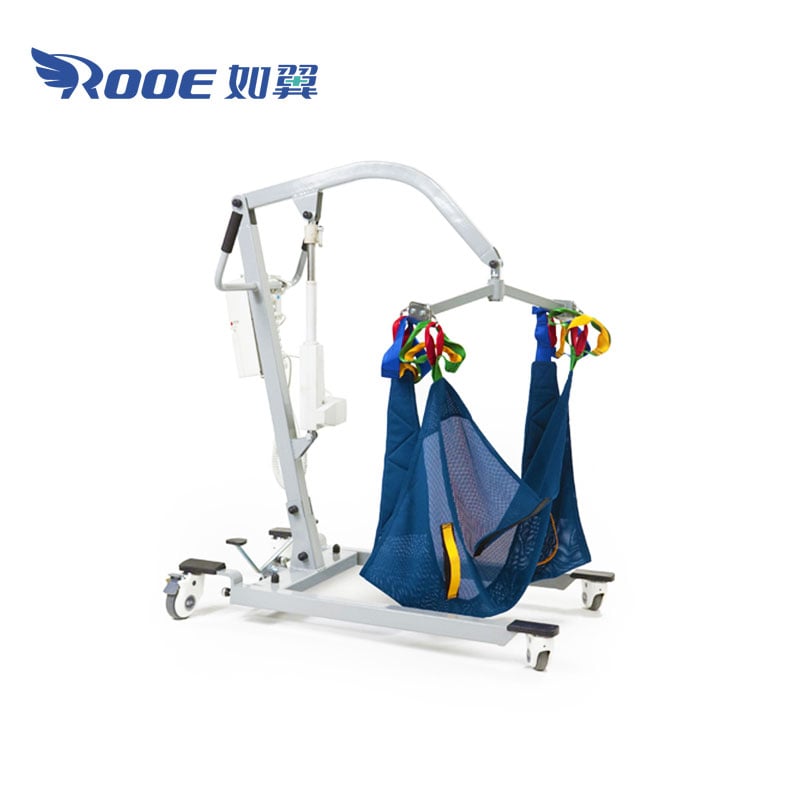

Not only can the Power Patient Lift be folded, but it can be divided into manageable parts for transport in a car or van. The Hoist Electric Patient Lift is a compact and versatile portable lift with a lightweight aluminum frame that can be lifted from the floor without tool folding, making it one of our best-selling patient lifts. The Electric Patient Lift can be lifted from the floor, painlessly transferred, and quickly transferred to the toilet or bathroom. Equipped with an emergency button for manual lowering. The Patient hoist lift is a good choice for anyone who needs a reliable and durable hoist to help with potentially extremely difficult transfers.
The Patient Lift for Home features a foldable mast and a wide, stable base for easy storage and transportation, perfect for home care and can be used with 4 and 2 point slings.
1. Aluminium frame with coated surface
2. Front 3″ wheels without brakes, rear 3″ wheels with brakes
3. Electric control remote control with one button lift command: left button up, right button down, easy to understand operation
4. Base can be adjusted to the width of the pedals to accommodate larger furniture
5. The battery operated lift can raise the floor, bed or any sitting surface from high or low and is controlled by remote control.
6. Extra wide swivel bar with 360 degree rotation and six point hook for added comfort and versatility
7. Large handle for enhanced control
8. Equipped with an emergency stop button, press the emergency stop device in case of emergency, the machine loses power and stops lifting, turn the red button clockwise to restore power
9. Emergency lowering device, during the use of the lift due to lack of power or failure of electric lowering type can use this device to make the push rod cantilever lower.
10. No need to remove the batteries, simply plug the unit in to recharge and an alarm will sound when the battery is low.
11. Foldable for easy storage and transfer
12. Allows the paramedic to safely lift the patient with minimal physical effort
13.Designed for home use and care home or facility applications

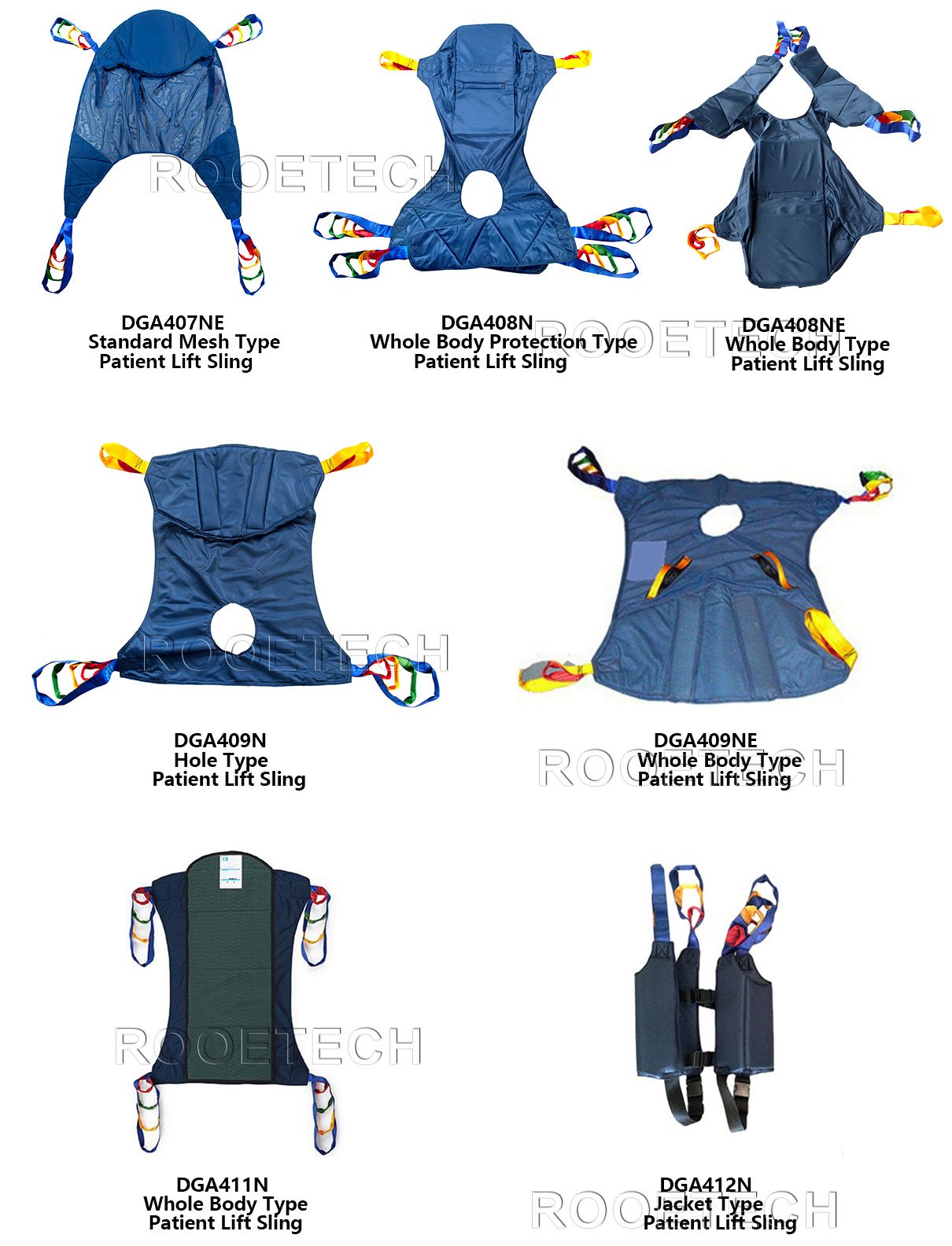

Optional Sling:
Main Parameter | |
Model | DG201N |
Overall Length: | 1180mm |
Overall Width: | 710mm |
Foldable size(L*W*H): | 1310*710*335mm |
Base Open Width: | 1070mm |
Boom Height: | 0-1610mm |
Push Handle Height: | 1160mm |
Base Clearance: | 100mm |
Base Length: | 1120mm |
Base inner width: | 600-960mm |
Highest: | 1825mm |
Weight Capacity: | 150kg |
Net Weight: | 34kgs |
Frame material: | Aluminum frame |
Front caster: | 3″ |
Rear caster | 3″ with brake |
Input voltage: | 220V50HZ |
Motor: | 24V |
