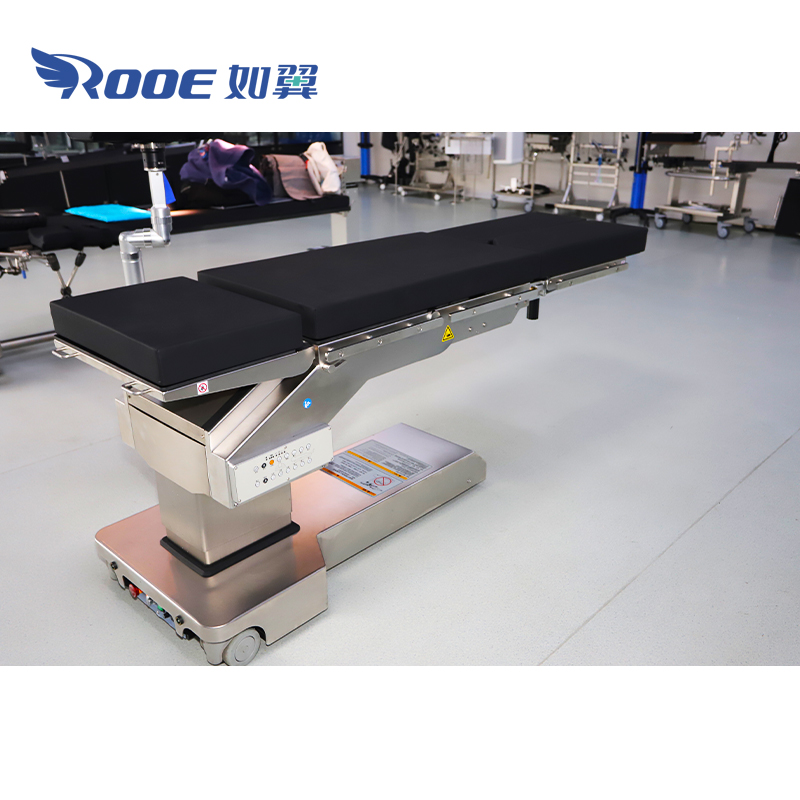

The unique posture design of the head side column surgical operating table enables it to have a full range of posture adjustment functions and a stable and reliable structural design. It provides an extra-large X-ray perspective range, can adapt to different surgical environments and needs, ensure the smooth progress of the surgical process, and provide doctors with ideal surgical conditions.

Head Side Column Electric Hydraulic Operating Table Surgical Operating Table Feature:

1. The operating table adopts a fully eccentric bed column design. The bed surface does not need to be translated to achieve an unobstructed X-ray transparent area ≥1450mm, which provides the most convenient conditions for the use of C-arms or intraoperative angiography during surgery.

2. The overall L-shaped head side column design is convenient for the use of C-arms during surgery. The base is designed to be T-shaped, which ensures that the operating table is stable and provides a larger bed board perspective space, which is also convenient for doctors to perform surgery.

3. The frame, bed support and base of the operating table are all made of 304 medical grade stainless steel, which is corrosion-resistant and waterproof with IP4X grade. The column has a bellows-free structure to meet the purification requirements of the 100-level laminar flow operating room.

Lumbar Bridge	Independently controlled leg plates	carbon fiber base plate

4. Different from the traditional wheel lock type fixation, this product uses 4 hydraulic cylinders to control the lifting of the operating table, electric locking, which is more stable, safe and firm. It is also equipped with unlocking and locking pedals to facilitate control during surgery. The double wheels of the mobile wheel also use hydraulic brakes, and the steering movement is flexible.

5. The hydraulic drive system consists of two sets of motors and two sets of hydraulic pumps. One set is used normally, and the other set is used as a backup device. It can be used immediately when there is a problem with the working parts at any time to ensure that the downtime rate of the operating table is 0, and the one-for-one backup function is truly realized.

6. Equipped with two independent control operating systems, the control operating system is equipped with a protective cover to ensure that there will be no unexpected changes in body position due to accidental touch during surgery. In addition, an optional LCD display window can be used to display fault codes, execution data display, and the body position status of the operating table.

7. The body positions required during surgery are all adjusted by electric hydraulics and have corresponding one-button adjustment function keys on the controller: Cover lifting, head and foot tilt, left and right tilt, backboard tilt, chest bridge, sitting posture, horizontal reset.
