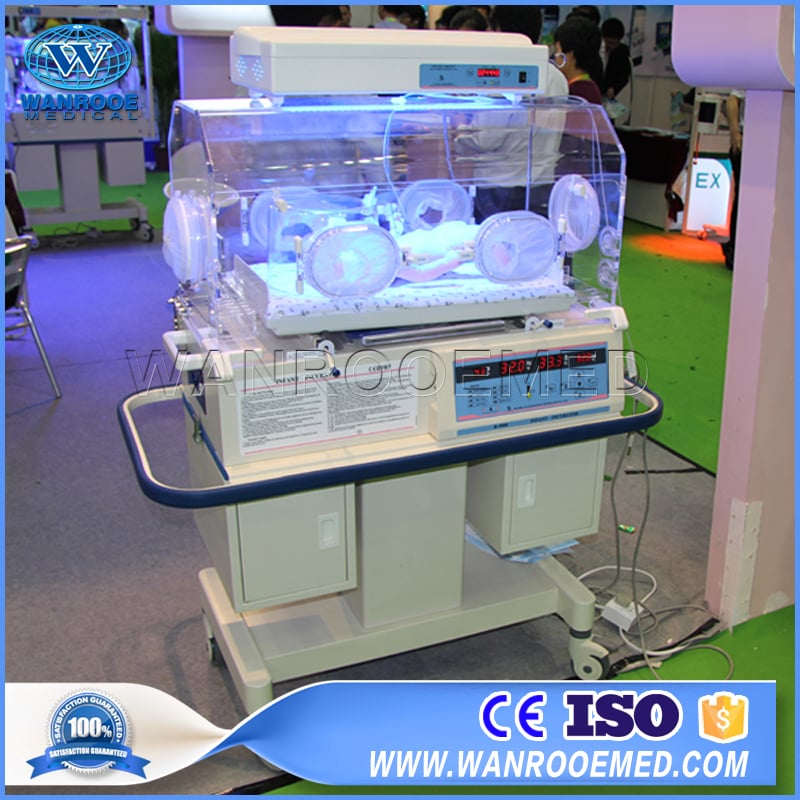

HB103 Medical Device Neonatal Baby Warmer Hospital Infant Incubator

Incubators and radiant warmers are used to maintain the body temperature of newborn infants. This is best done so that the energy expended for metabolic heat production is minimized. The heat output of these devices is usually regulated by servocontrol to keep the skin temperature constant at a site on the abdomen where a thermistor probe is attached.

  • Product Description
  • Technical Parameters
  • Video

HB103 Hospital Infant Incubator Features:
1.Servo Control Mode: air temperature, skin temperature;
2.Instant Parameter Displaying: set temp, air temp ,skin temp, internal humidity, heat power rate
3.Audible & Visual Alarms: power failure, sensor failure, higher & lower temp, air& skin temp override, fan failure, system failure;
4.>37℃ Preset Mode: power failure reset memory, alarm silence, keypad lock, self-test function;
5.Hood with dual slope: 6 hand-ports; left & right cabinets, top-shelf;
6.RS-232 Output Connector (Use for network system ).
7.Export model: install the guardrail instead of top shelf.
Neonatal Baby Warmer, Hospital Infant Incubator, Medical Infant Warmer, Baby Transport Incubator

HB103
Mattress to Hood 450mm
Observation side of hood Two incline
Operate port 6
Front access panel 826*310mm
Mattress tray size 630*360mm
Power supply ≤400VA
Temperature controlled by microcomputer Air and skin temp
Air temp
Air temp control range 20℃-37℃
37℃-39℃
Skin Temp control range 30℃-37℃
37℃-38℃
Skin Temp sensor accuracy ≤0.3℃
Humidity display range 5%-99%
Temperature fluctuation ≤0.5℃
Mattress temperature uniformity ≤0.8℃
Temperature rise time ≤30min
Noise level within hood environment ≤55dB
Alarms
Power failure alarm yes
Fan failure alarm yes
Sensor failure alarm yes
High air temp alarm +1.5℃
Low air tem alarm -2.5℃
High skin temp alarm +1.0℃
Low skin tem alarm -1.0℃
Over air tem alarm ≤38℃, ≤40℃
Over skin tem alarm ≤38℃, ≤39℃
System failure alarm yes
Alarm silence function yes
Operational condition
Environment temperature +20℃-+30℃
Environment relative humidity 5%-99%
Environment air velocity of flow <0.3m/s
Others
RS232 interface yes
Railing yes

Infant bed tilt adjustment

±10° step less

Max load of mattress tray

10kg

IV Pole Max load

2kg
