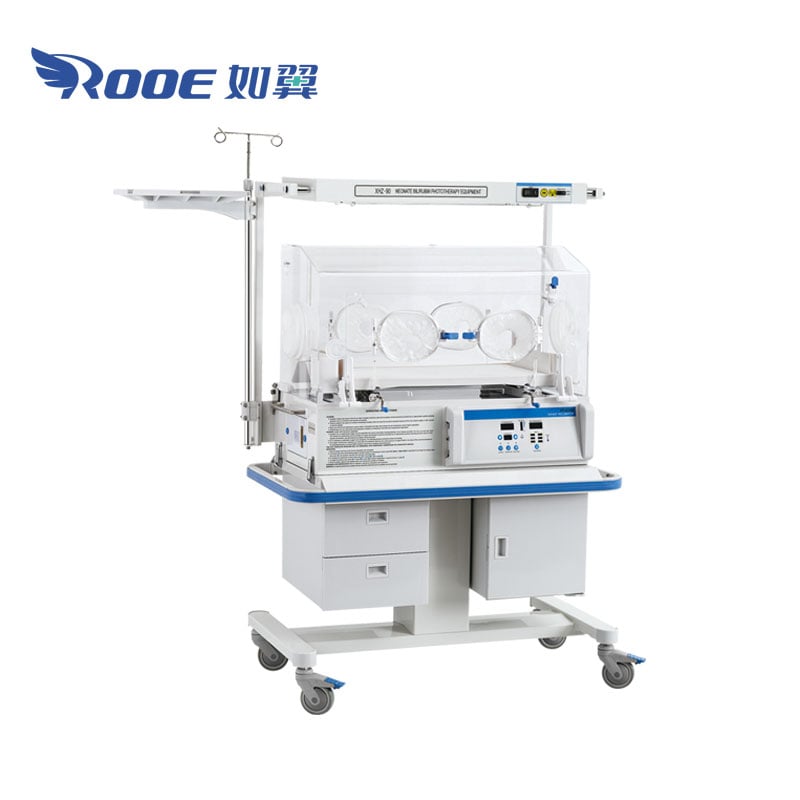

HB-YP90 Medical Infant Incubator Light Weight Transport Baby Incubator

Incubators and radiant warmers are used to maintain the body temperature of newborn infants. This is best done so that the energy expended for metabolic heat production is minimized. The heat output of these devices is usually regulated by servocontrol to keep the skin temperature constant at a site on the abdomen where a thermistor probe is attached.

  • Product Description
  • Technical Parameters
  • Video

Brief Introduction:
Air mode control, set temperature and air temperature are displayed separately;
Natural air flow humidity
Inclination of bassinet is adjustable
Failure alarm indication
RS-232 connector
Oxygen input interface
Standard  configuartion:
HB-YP90:the hood ,the base ,the controller ,I.V pole ,shelf.
Optional parts:
> 37°C temperature override mode function, vertical height adjustment stand(VHA stand),
Weighing system, Neonate bilirubin phototherapy equipment model: HBXHZ-90L (fixed model), Baby mode and SPO2.
Specification:
Power requirement: AC220V-230V/50Hz or AC110-120V/50-60Hz, 850VA
Mode of control: Air mode control
Air temperature control range: 25°C -37°C (override mode: 37-39°C is optional)
The temperature difference between incubator temperature and average incubator temperature(under steady temperature condition)≤0.5°C
Temperature uniformity: 0.8°C (mattress is on the horizontal position)
Inclination of the bassinet: ±12°
Noise inside hood: 45dB(A)
Failure alarm: over temperature alarm, deviation alarm, sensor failure alarm, fan motor alarm, power failure alarm, system alarm and so on.
The average value of total irradiance for bilirubin Ebi max of phototherapy equipment:
≥ 640pW/cm2 ( XHZ-90 ) • ≥1300pW//cm2 ( HBXHZ-90L )
Built-in timer range: 0-9999 hrs 59min
Accuracy of weight display: ±1% (equipped weighing system)
Environmental temperature:
Operating range: 20 °C -30°C (Set temperature should be higher 3°C than the environment temperature)
Ambient air movement rate: <0.3m/s
Product Packaging:
Package: each unit is packed into one carton
Dimension: 1085mm x 640mm x 1120mm
Gross Weight: 80Kg
