ALDR100C Hospital Delivery Bed Gynecology Bed With Trendelenburg

ALDR100C LDR Bed(ultra low position) is a ultra low height bed designed to meet the market demand. It is based on the model ALDR100A. The low height allows the lying-in women get on/from the bed much safer. The mechanical structure and electric system take advantage of its former models and also have been improved upon users’ suggestions.

  • Product Description
  • Technical Parameters
  • Video

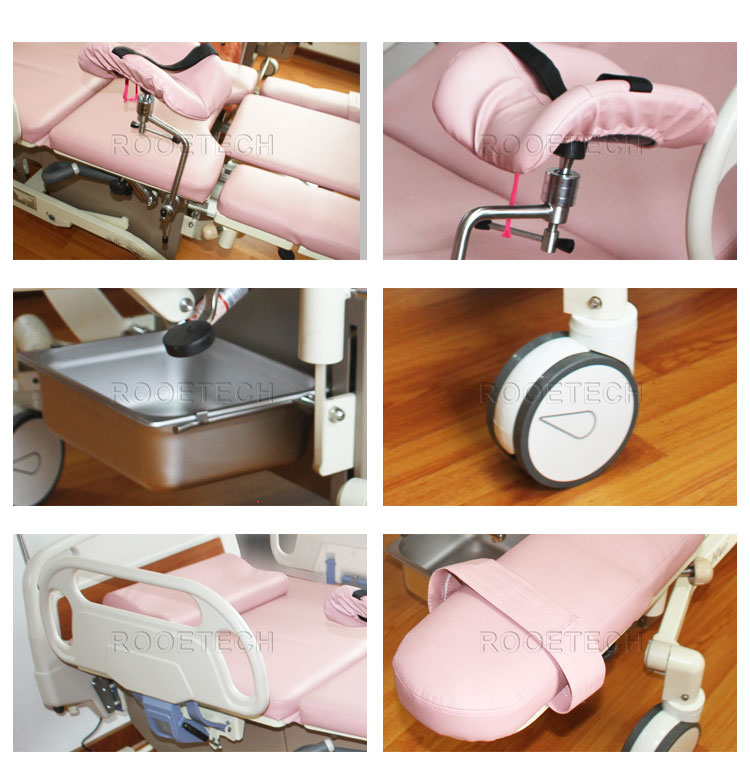

Hospital Delivery Bed Gynecology Bed Features:

1. Linak motor and electric control system.
2. Centre brake and swivel system make the bed stable.
3. Rotating side rails are easily operated.
4. Minimum height enables patient get on the bed easily.
5. Leg holder lockable, can turn forward & backward, left & right, height also adjustable.

hospital delivery bed,gynecology bed
6. I.V. stand, height adjustable.
7. Head board, led board moveable.
8. Cushion for newborn baby used during parturition.
9. Stainless steel basin and flume moveable for washing.
10. Grab handle for lying-in woman to exert her strength.
11. Cushion:Three different colors available, i.e. rose, pink and blue.
12. Foot switch and hand control are optional.

hospital delivery bed,gynecology bed


Model ALDR100C
Hospital bed Size
Length 2000mm
Width 940mm
Height Adjustable Range
Min. height of table top from floor 860mm
Max. height of table top from floor 580mm
Adjustable Range
Reversed tendelenburg 0°-12°(electric)
Tendelenburg 0°-5°(electric)
Back section raised from the horizontal 0°-60°(electric)
Footrest swing out: ≥90°
Footrest folding: ≥40°
Power Supply AC 220V±10%,50Hz
Basic Accessories
Leg support 2 sets
Cushion 1 set
Filth Basin 1 set
IV pole 1 set
Hand control 1 piece
Power cord 1 piece
Wooden package(1pc/case): 1970*1070*760mm
Net weight: 260kg
Gross weight: 320kg
