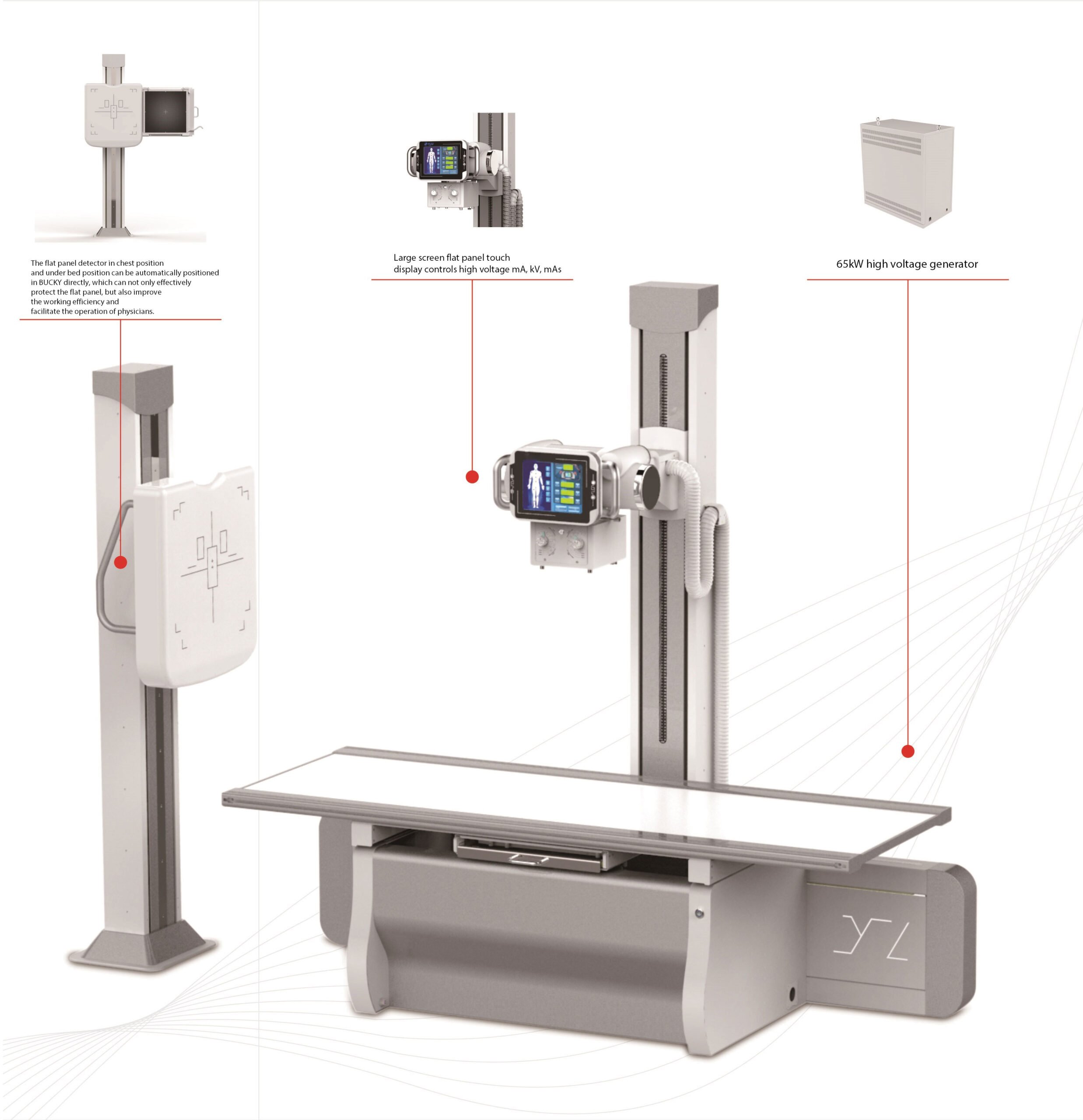

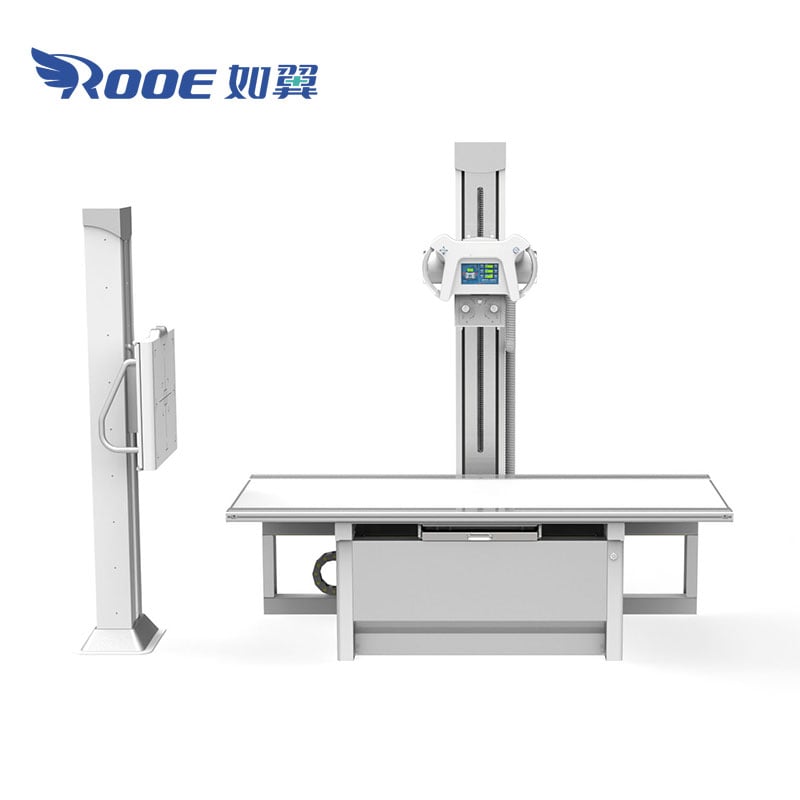

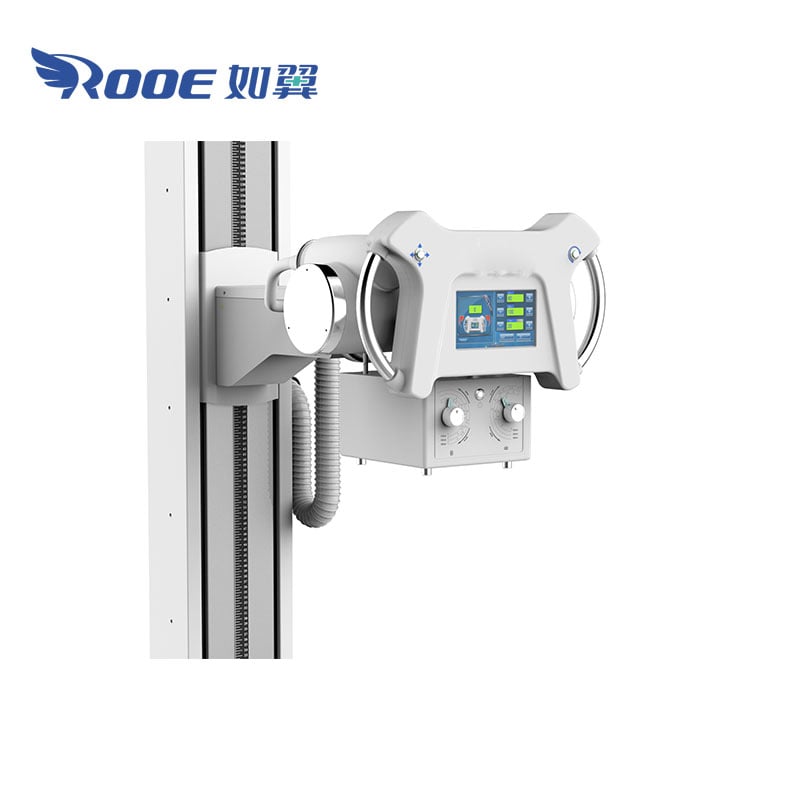

PLD7400-20/32/40/50DR-P Floor-mounted Fluoroscopy X Ray Machine With DR Detector

Innovative technology floor DR System. The portable tablet detector is designed to meet all your clinical needs. Floor-to-ceiling portable flat-panel detector solutions offer maximum research versatility and high throughput.

  • Product Description
  • Technical Parameters
  • Video

Floor-mounted Fluoroscopy X Ray Machine With DR Detector Description:

It is suitable for the digital photography of the head, limbs, chest, spine, lumbar vertebra and other parts of the whole body in orthopedics, wards, emergency rooms, operating rooms, etc. It can be used for the digital X-ray photography diagnosis in medical teaching, scientific research and medical units.

Floor-mounted Fluoroscopy X Ray Machine With DR Detector Features:

Case management: manual registration, WORKLIST automatic query;

Image acquisition: automatic window adjustment, automatic cropping, automatic sending;

Image processing: image correction, image flipping, organization balancing, sharpening, image filtering;

Image observation: window width and window level adjustment, image flipping, image rotation, image scaling and restoration;

Medical record report: automatic loading of patient information, expert template;

Film printing: Support DICOM3.0 standard laser camera printing;

DICOM Transfer: Images can be sent to any PACS and workstations that comply with the DicOM 3.0 standard.

fluoroscopy x ray machine,dr detector,dr machine

Scope of application

It is suitable for the digital photography of the head, limbs, chest, spine, lumbar vertebra and other parts of the whole body in orthopedics, wards, emergency rooms, operating rooms, etc. It can be used for the digital X-ray photography diagnosis in medical teaching, scientific research and medical units.

fluoroscopy x ray machine,dr detector,dr machine

Model PLD7400-20DR-P PLD7400-32DR-P PLD7400-40DR-P PLD7400-50DR-P
X-ray Generator(include console) Output Power 20KW 32KW 40KW 50KW
Power Voltage 220V±22V 380V±38V
kV range 40~125kV 40~150kV
mA range 10~320mA 32~400mA 32~500mA 10~630mA
mAs range 0.5 ~320mAs 0.32 ~400mAs 0.32 ~500mAs 0.1 ~630mAs
Exposure time 0.002~6.3S
X-ray Tube Small focus 1 1 1 0.6
Large focus 2 2 2 1.2
Anode speed 2800r/min /
Radiographic Table Top Table Size 2100X800X650mmm
Bucky Size 18X18inch
Table longitudinal movement ≥900mm
Cassette Movement Distance ≥500mm
Vertical Chest Stand Vertical moving range ≥1200mm
Bucky Size 18X18inch
