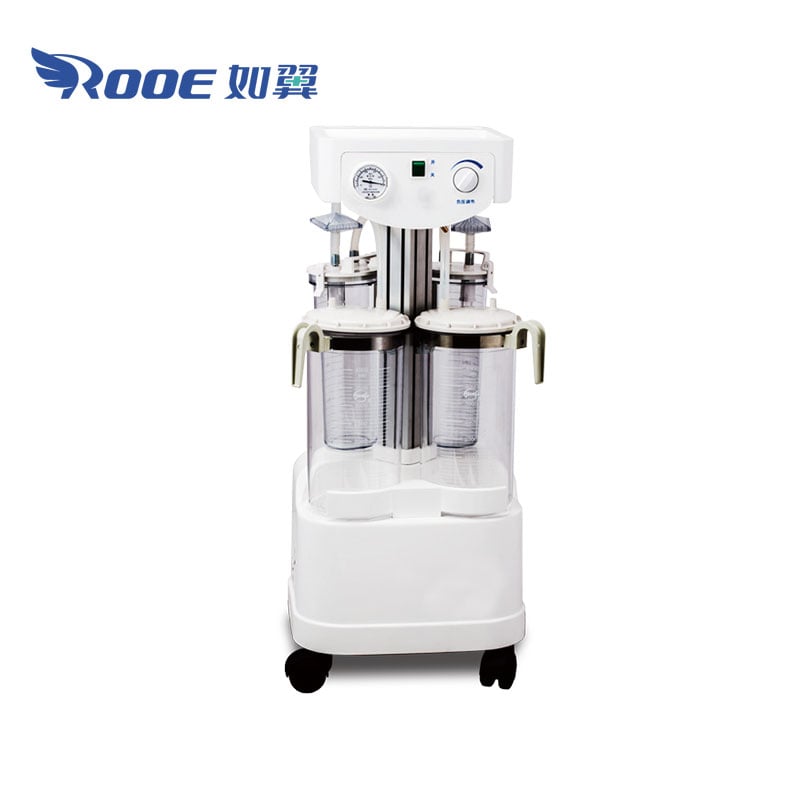

YX980D Operating Room High Flow Electric Suction Pump Machine Medical Device

Model YX980D Electric Suction Apparatus offers high vacuum and high flow with double piston cylinders. It rapidly builds up a powerful vacuum, and is especially used for surgical operations where large quantities of fluid must be suctioned out quickly. Advanced design idea as well as a perfect configuration performs satisfactory functions.

  • Product Description
  • Technical Parameters
  • Video

High Flow Electric Suction Pump Machine Medical Device Description:

Suction pump machine is a medical suction device with high negative pressure and large flow. Electric suction machine is suitable for medical institutions to suction patient’s airway secretions, can quickly and effectively absorb the patient’s body cavity pus, blood, sputum and other viscous liquid, and is more suitable for operating room. Does not apply to abortion attraction. These compact devices provide flexibility while reducing the risk of virus transmission. When used with a disposable collection system, medical suction can reduce the risk of workers coming into contact with dangerous liquids, and further reduce the risk of cross-infection and viral exposure for employees.

suction pump machine,electric suction machine,suction medical device,suction machine,medical suction

High Flow Electric Suction Pump Machine Medical Device Features:

1. Designed for use in large operating rooms, it combines high vacuum and high flow performance to provide fast and efficient pumping of even the most viscous fluids.
2 carefully designed full plastic shell, unique shape, plastic panel to make it has the ability to resist water erosion.
3. Equipped with 2 (4000+2000) ml clear, high-strength polycarbonate plastic wide-mouth bottles, the collection container has an easy-to-read scale to confirm the fluid “at a glance” during surgery.
4.2000ml liquid storage cap is equipped with overflow protection device. Overflow protection prevents fluid from entering intermediate pipes and pumps. Disposable bacterial filters remove pollution from the air.
5. Using large flow oil-free double cylinder piston pump as negative pressure source, high pumping rate, no oil mist pollution, can be removed from the daily maintenance and maintenance of the pump body. The pressure system does not generate positive pressure during operation.
6. Negative pressure control valve can be used to control the required negative pressure, can control the suction required pressure, negative pressure value by the vacuum gauge to express. The vacuum pressure can be arbitrarily controlled in the range of 0.02 ~ 0.09MPa (150 ~ 680mmHg). When the machine stops, there is no pressure backflow and no liquid backflow.
7. Container transfer valve can be used to quickly select empty containers during operation.
8. Transparent non-toxic PVC suction hose is used to observe the liquid in the tube.
9. Can start and keep running under maximum negative pressure. (above 0.09 MPa)
10. The top of the chassis is equipped with a surgical plate, which can place objects for convenient operation.
11. The integrated handle and four 360° casters make the machine more convenient to move.
12. Foot switch and power cord are stored in the rear storage tank for easy collection when the machine is out of service.
13. Two switching modes, hand switch and foot switch in parallel can be freely selected;

suction pump machine,electric suction machine,suction medical device,suction machine,medical suction

Specification
Model YX980D
Max vacuum ≥0.09 MPa(680mmHG)
Adjustable Vacumm Range 0.02MPa(150mmHG)~Max.Vacuum
Noise ≤60dB(A)
Flow Rate ≥80L/min
Power AC 220V,50Hz
Input power(VA) 280 VA
Storage bottle (4000+2000)ml×2
N.W.: 22Kg
G.W.: 27Kg
DIM 390×330×890mm
Package Size 440mm×500mm×995mm
