Autoclave is a medical device that uses steam to sterilize under high pressure and temperature. Autoclave is widely used by sterile medical device manufacturers and hospital sterilization plants as a basic measure to sterilize products.
Medical facilities such as hospitals, medical offices and blood banks generate millions of tons of waste each year. A subset of this waste comes from hazardous materials such as blood, body fluids and other infectious materials known as medical waste. Anything considered potentially contagious can be classified as medical waste. As a healthcare professional and manager who works closely with medical waste, you must comply with many different rules and regulations in order to safely store and dispose of these materials.
One of the many regulations involves treating waste before it reaches a landfill or waste-energy facility. The most common and reliable option is autoclave treatment.

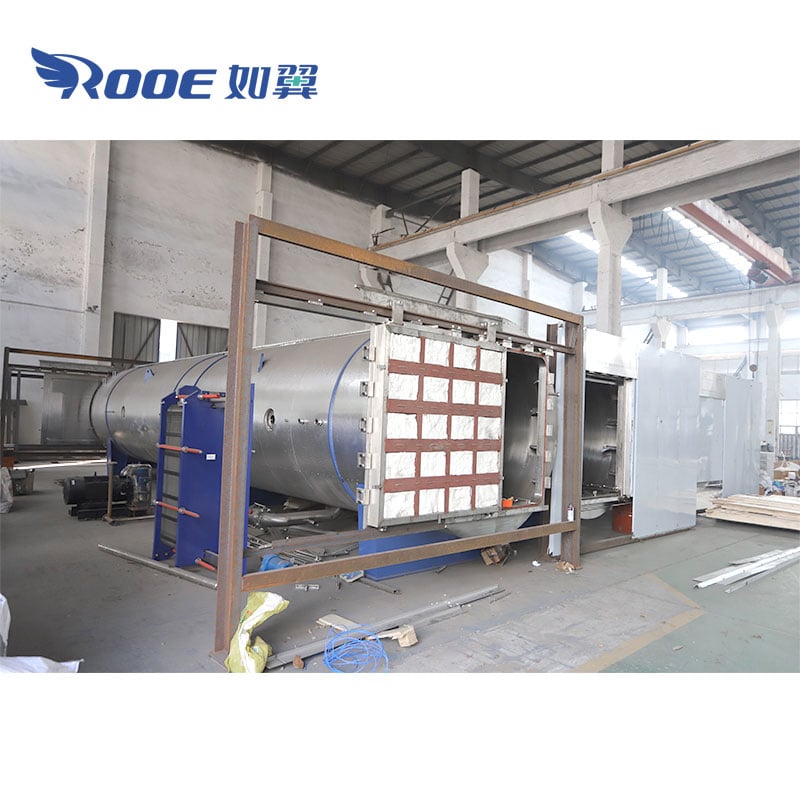

Double door Horizontal Autoclave is widely used in medical, pharmaceutical, education, research and development institutions. Industrial Autoclave works on a fairly simple principle: It is heated above boiling point to sterilize utensils, glassware, surgical instruments and more. Horizontal autoclaved steam sterilizer equipped with rectangular container is the best choice of surgical plate tray, anesthesia and respiratory instruments, to achieve the purpose of complete sterilization and complete elimination of microorganisms. Typically, the autoclave vacuum steam sterilizer is located in the central Asepsis Service CSSD.
Autoclave can successfully dispose of almost all contaminated medical waste that comes into contact or may come into contact with blood or body fluids. Medical waste disposals include sharp objects such as syringes and needles. However, these shall not be contaminated with hazardous wastes.
However, certain waste classifications should never be treated by autoclave processes. For example, any waste deemed hazardous or radioactive will always need to be treated separately from regulated medical waste. These types of waste have their own special treatment methods, such as incineration. All waste is not created equally; Special precautions must be taken for each individual to ensure the health and safety of each individual.
The Medical Waste Autoclave series is suitable for commercial medical waste treatment plants, providing the collection, treatment and disposal of medical waste collected from nearby hospitals and medical institutions. The capacity of a single unit ranges from 1 to 50 tons per day, with higher efficiency and lower operating costs.
We are a reputable supplier of high quality horizontal autoclave machines at low price. Our horizontal autoclave is equipped with a rectangular container and its full SUS 304 stainless steel construction reduces maintenance costs. The horizontal autoclave adopts Siemens imported vacuum pump to ensure thorough sterilization. In addition, its LED dynamic display and automatic control system maximizes efficiency and reduces interference. Choose horizontal autoclave, away from living microorganisms, lower cost.
Design pressure | 0.245Mpa | Vacunm | -0.095Mpa |
Working Pressure | 0.22Mpa | Steam Source Pressure | 0.4-0.6Mpa |
Design Temperature | 139℃ | Water Source Pressure | 0.1-0.3Mpa |
Working Temperature | 134℃ | Compressed Air Pressure | 0.5-0.7Mpa |
Specifications | Overall Dimensions | Chamber Size | Steam Consumption | Power | Water Consmption | Net Weight |
Model | L*M*H(mm) | L*W*H(mm) | (kg/cycle) | (KW) | (kg/cycle) | (kg) |
Single/Double Door | ||||||
YG-0.1 | 825*1080*1600 | 630*400*480 | 15 | 1 | 80 | 380 |
YG-0.25 | 895*1220*1720 | 760*600*600 | 20 | 1.5 | 150 | 650 |
YG-0.36 | 1195*1220*1720 | 1000*600*600 | 25 | 1.5 | 150 | 760 |
YG-0.6 | 1245*1300*1880 | 1050*680*850 | 30 | 2 | 200 | 1100 |
YG-0.8 | 1595*1300*1880 | 1400*680*850 | 35 | 3 | 250 | 1300 |
YG-1.2 | 1695*1370*1960 | 1500*750*1100 | 40 | 3 | 300 | 1900 |
YG-2.5 | 3195*1370*1960 | 3000*750*1100 | 75 | 4.5 | 450 | 2800 |
YG-5.0 | 3635*1800*2200 | 3400*1000*1500 | 150 | 7.5 | 600 | 4500 |
YG 5.0 Steam Autoclave:
Medical Waste Disposal:
Circular Chamber Construction:
Rectangular Chamber Construction:
