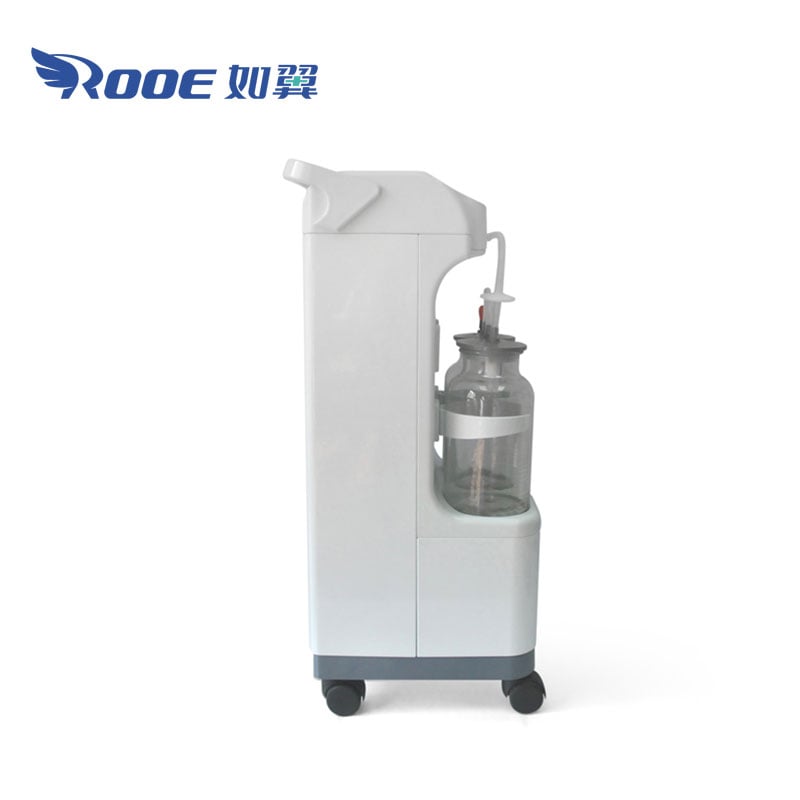

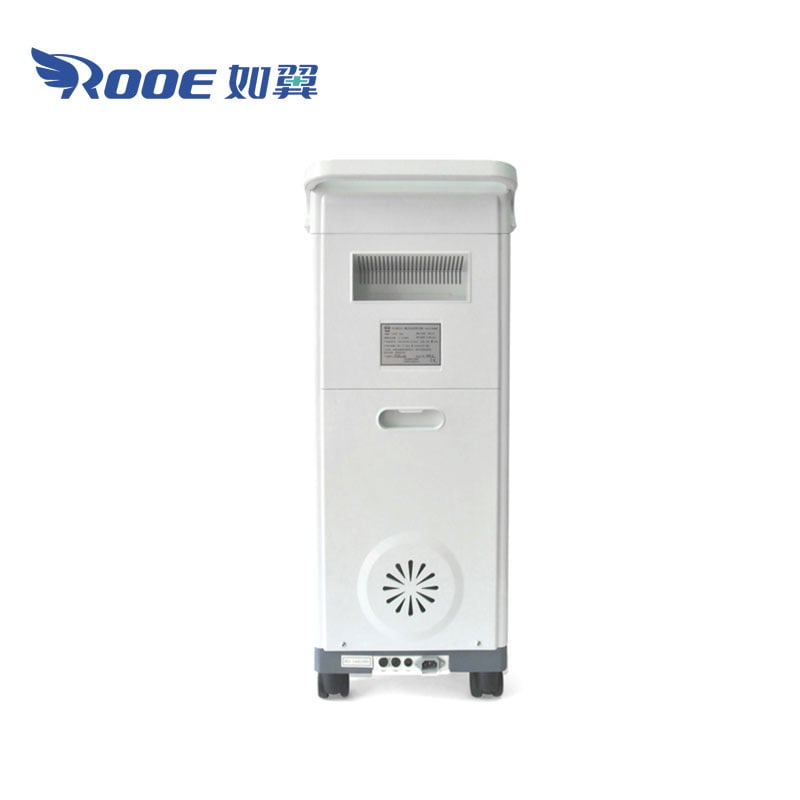

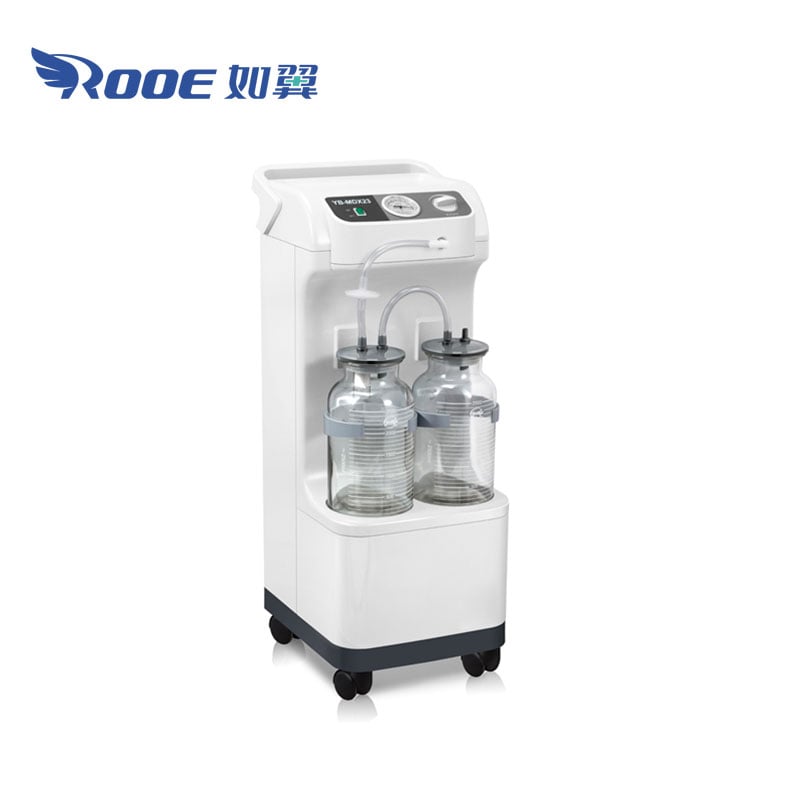

YX932M Medical Diaphragm Vacuum Electric Suction Unit Suction Aspirator

YX932M Electric Suction Apparatus (Diaphragm type) is novel designed medical suction equipment with high vacuum and large flow, intended for extracting secretion from patients’ airway or exudation and flushing fluid from body cavity during operation in medical institution.(Not apply to induced abortion operation.)

  • Product Description
  • Technical Parameters
  • Video

Medical Diaphragm Vacuum Electric Suction Unit Suction Aspirator Description:

YX932Melectric Suction Unit (membrane) is a medical suction device with high negative pressure and large flow.
Main components of vacuum suction unit include: frame, motor, Aspirator vacuum pump, safety valve, vacuum meter (with filter), foot switch,
Suction containers and other components.
Edical suction aspirator adopts oil-free diaphragm vacuum pump, free of maintenance and fast negative pressure rise.
Medical suction is applicable to suction the secretions in the patient’s airway and exudate and rinse fluid in the patient’s body during surgery. The product is not suitable for abortion attraction.

electric suction unit,vacuum suction unit,medical suction aspirator,aspirator vacuum pump,medical suction

mobile suction machine,electric suction machine,pedal suction machine,surgery suction machine,operating room suction

Medical Diaphragm Vacuum Electric Suction Unit Suction Aspirator Features:

1. Oil-free lubrication diaphragm vacuum pump, high pumping rate, no oil mist pollution, can be free from the pump body of daily maintenance and maintenance. No positive pressure is generated in the pressure system during operation, making it safe and reliable to use.
2. Oil-free lubrication negative pressure source, no need for daily maintenance.
3. An overflow protection device prevents liquid from entering the intermediate piping.
4. Well-designed anechoic system to keep the machine’s operating noise at a very low level.
5. All-plastic panel with good water resistance and corrosion resistance, novel shape, moderate height, convenient for the operator to observe and inspect from different positions.
6. Integral instrument tray on top to prevent surgical instrument wrapping or other items.
7. Two large diameter 2500ml reservoir bottles with sealing ring stoppers for easy opening and closing of the stoppers and easy removal of the dirty fluid from the bottles.
8. Can be started and kept running under maximum negative pressure. (0.09 MPa or more)
9. Accessory box on the back of the box to secure the foot switch and power cord when moving or storing.
10. Air filter fitted to protect the negative pressure pump from contamination.
11. Manual switch and foot switch connected in parallel, optional.
12. The negative degree adjustment system can be adjusted steplessly according to clinical needs and is indicated by the vacuum gauge.
13. Compact machine structure, 380VA high power, smooth working, low noise, long service life.

electric suction unit,vacuum suction unit,medical suction aspirator,aspirator vacuum pump,medical suction



Specification
Model YX932M
Max vacuum ≥0.093 MPa(680mmHG)
Adjustable Vacumm Range 0.02MPa(150mmHG)~Max.Vacuum
Flow Rate ≥32L/min
Power AC 220V,50Hz
Input power(VA) 380 VA
Reservoir capacity 2500 ML/PC, 2PCS
N.W.: 27.5kg
G.W.: 24.2kg
DIM 320×360×830mm
Package Size 465mm×425mm×935mm
