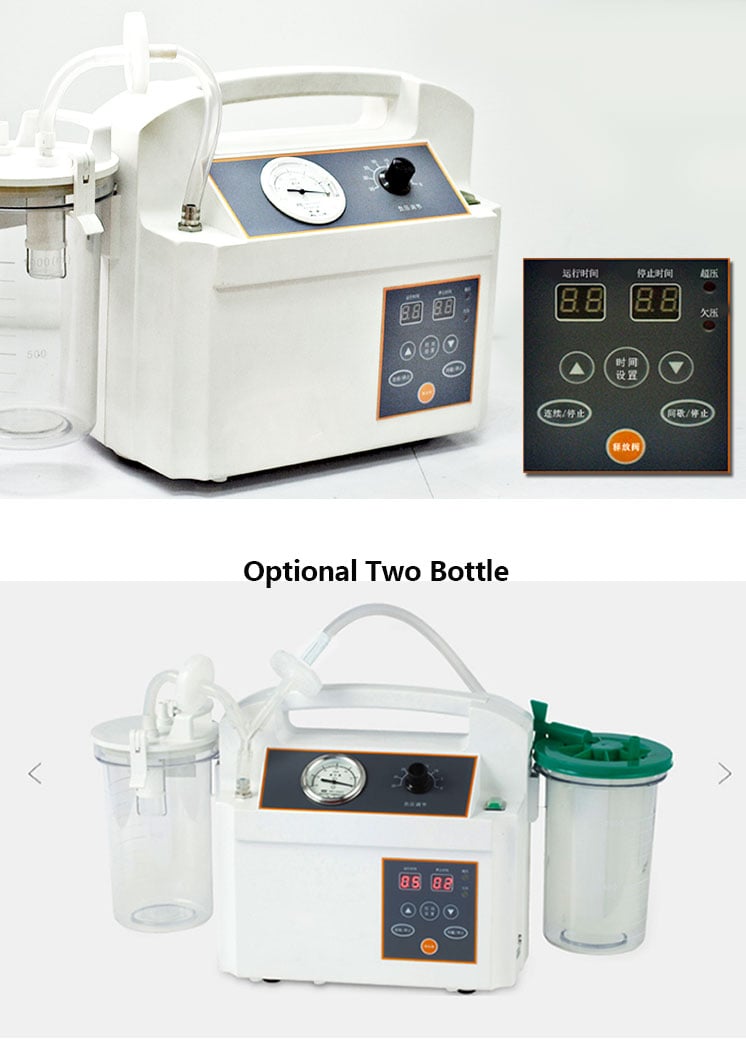

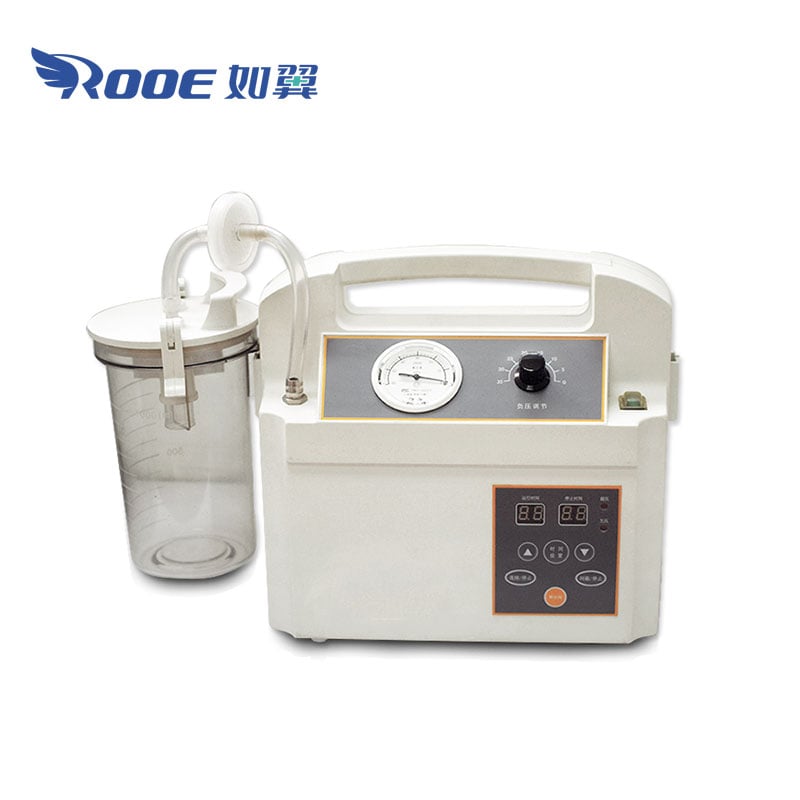

SXT-5A Plus Two Modes Continuous Suction Machine&Intermittent Suction Apparatus

The medium negative pressure and large flow suction device designed by integrated circuit and sensor control technology is suitable for the negative pressure drainage of patients’ body surface wounds and ulcer wounds treated by medical institutions after matching with special dressing, and also suitable for continuous postoperative drainage of patients.

  • Product Description
  • Technical Parameters
  • Video

Continuous Suction Machine&Intermittent Suction Apparatus Description:

The continuous suction machine has a powerful negative pressure suction function to quickly and efficiently remove secretions, blood and foreign bodies from the body cavity and airway. Its high attractiveness and adjustable negative pressure parameters enable physicians to perform precise controls on a case-by-case basis to ensure complete clearance and maintain the patient’s airway. The device is lightweight and compact, easy to carry and move, and suction apparatus can attract continuously to meet the conditions of traumatic drainage.

continuous suction machine,intermittent suction,suction apparatus

Continuous Suction Machine&Intermittent Suction Apparatus Features:

1. The use of oil-free lubricating electromagnetic pump as a negative pressure source, attracting large flow, very low noise, no oil fog pollution environment;

2. The negative pressure value can be set arbitrarily according to the need, and the high precision pressure sensing element makes the negative pressure value constant and reliable;

3. Continuous/intermittent two modes of work, intermittent attraction time can be controlled;

4. Long life, can be a long time low noise continuous work;

5. Overflow protection device can prevent the suction of liquid into the intermediate pipeline; Buffer bottles can be added according to clinical needs.

6. The release valve is used to release the sudden rise of negative pressure in the pipeline to ensure use;

7. With undervoltage light prompt and overpressure acousto-light prompt device.

Specification
Model SXT-5A Plus
Max vacuum ≥32KPa(240mmHg)
Adjustable Vacumm Range 2.5kPa(18.75mmHg)~Max.Vacuum
Noise ≤50dB(A)
Operation mode: continuous operation and intermittent operation
Intermittent running time: 5 minutes on /2 minutes off (default) or 1 to 15 minutes
Flow Rate ≥20L/min
Power AC 220V,50Hz
Input power(VA) 100 VA
Storage bottle 1000ml(PC)
N.W.: 6.6Kg
G.W.: 7.6Kg
DIM 45cm×20cm×32cm
Package Size 54.5cm×26cm×37.5cm
