Crucial equipment of the operating room and intensive care units, the ceiling pendant should allow easier access to medical gases as well as electrical energy (high and low current) during surgery or anesthesia. We have selected a range of ceiling pendants with multiple configurations to meet different space constraints of health facilities and their technical needs: ceiling pendant column holder ceiling pendant mobile column holder ceiling pendant anesthesia mobile column ceiling pendant surgery mobile holder ceiling pendant double column holder We can also offer tailored developments for specific configurations. The range of ceiling pendants is designed in compliance with the present standards and guidelines Their ergonomics is designed to facilitate their installation and maintenance and allows easy use and maintenance.

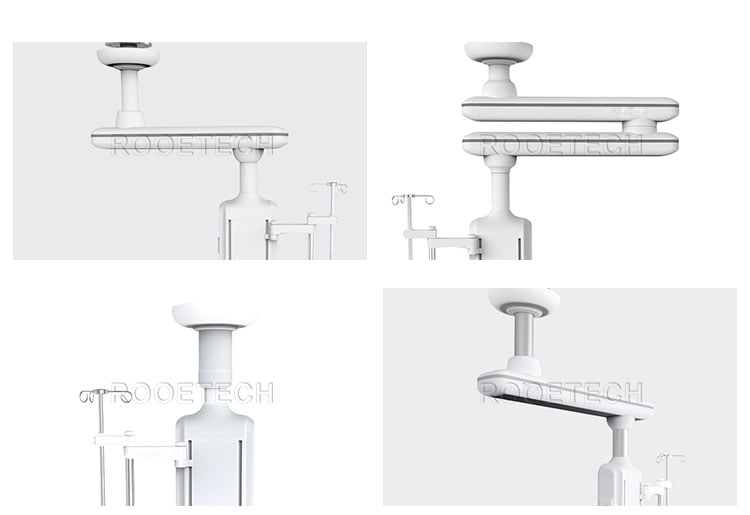

There are 6 types of cantilever configurations: fixed single arm, electric single arm, fixed double arm, electric double arm, electric lifting single arm, electric lifting double arm.
1. Using smallpox hanging mode, high bearing capacity
2. Applicable to hospitals with small area restrictions that do not need to be moved
3. Drawers and partitions can hold medical devices.
4. Pneumatic brake, flexible rotation, accurate positioning.
5. Flexible rotating device makes it possible to realize functional conversion of medical/nursing area
6. Modular structure, which can be combined into different working platforms according to different operating room categories
1. All features of the mechanical pendantare included
2. The electric design saves the effective time of adjustment and proofreading, and realizes the possibility of one-button operation
3. Vertical lifting and horizontal rotation, stable and reliable performance, medical staff can easily move and lock the position of the pendantbody according to needs.
4. The max loading capacity of medical pendant is very strong, and it will not be easily deformed even if it is used for a long time under the condition of full load.
Suitable for class ten thousand, class one hundred thousand and ordinary operating room
Applicable to the operating room area, hundred, thousand, ten thousand level operating room in about 35-45 square meters

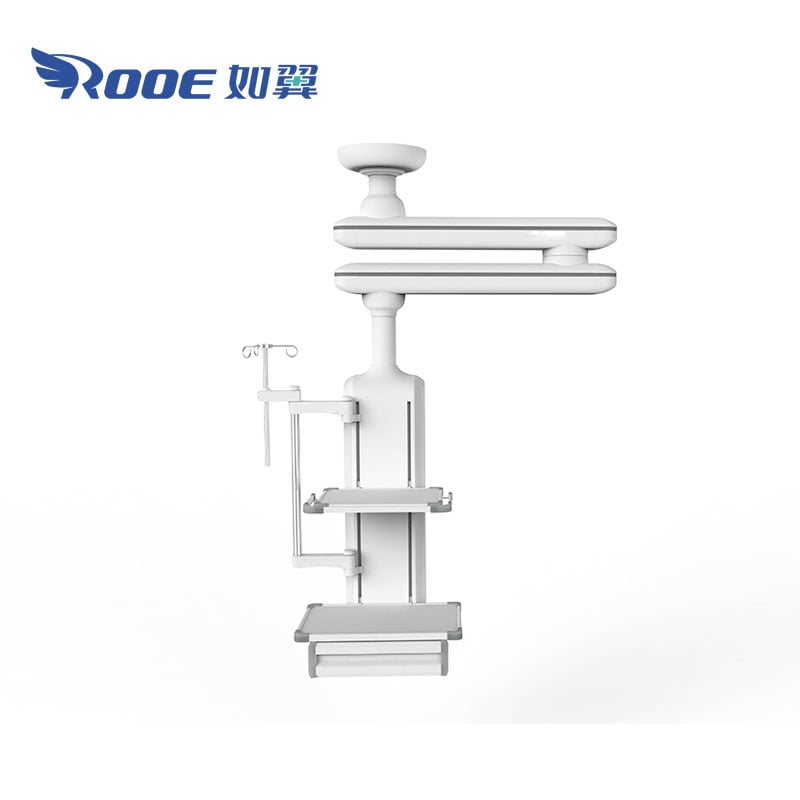

AOT-DT-360 | |
Working power | AC220V 50Hz |
Moving radius | 1000mm for single arm
800+800mm for double arm |
Lifting range | 300mm |
Material | High-strength aluminum alloy |
Surface treatment | Electrophoresis and powder coating |
Level Rotation Angle | 340° |
Standard Gas Outlets | O2*2, VAC*2, AIR*1 |
Tray | 3 pcs |
Sockets | 8 pcs (220V/10A) |
Grounding Terminal | 2pcs |
Network interface | RJ45 1 pc |
Drawer | 1 pcs |
Stainless steel infusion pump rack | 1 sets |
Net load | Single arm:350KG
Double arm:250KG upright column:150KG |
Single tray net load | 80kg |
