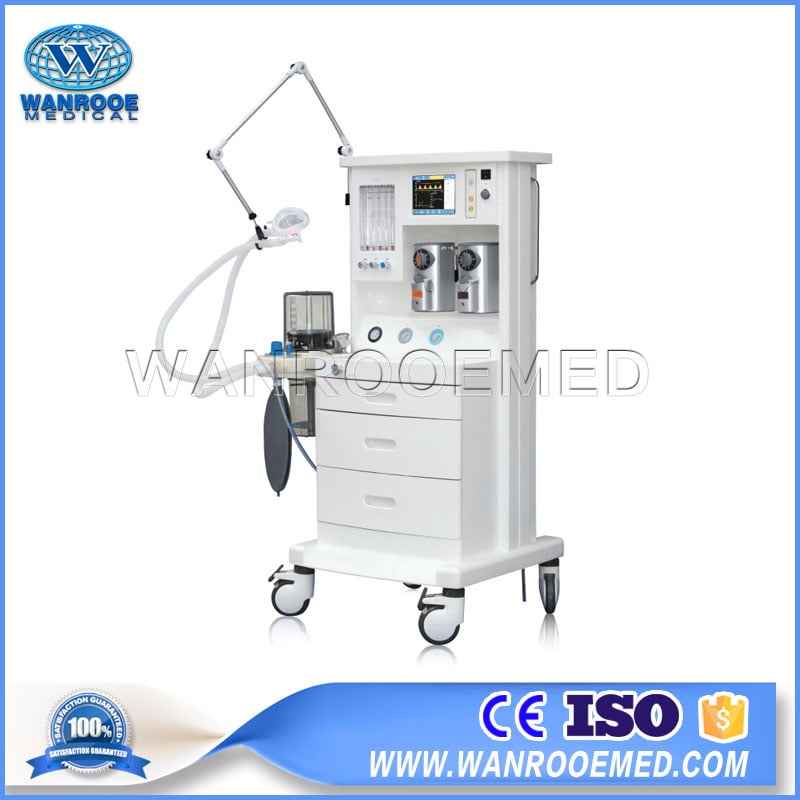

AMJ-560B5 Medical Mobile Energy Recovery ICU Anesthesia Ventilator

  • Product Description
  • Technical Parameters
  • Video

 ICU Anesthesia Ventilator, Energy Recovery Anesthesia, Medical Anesthesia Machine

AMJ-560B5 Anesthesia Machine, with its ergonomic design, integrates a concise and smooth structure and high mobility. The microcomputer-controlled Ventilator adopts exported sensors and other components. Its scientific and proper design as well as rigorous production process are what demonstrate the inner quality of Aokai products: mechanical ventilation is made secure and visible by the folded respiratory bellows, and the security of air supply is guaranteed by pneumatic transmission and measurement system. With multiple modern technologies applied, the Anesthesia Machine is both outstanding in performance and versatile in functions.

The Ventilator adopts microcomputer control with high-definition 10.4” TFT color LCD display, integrating the functions of respiratory control and displaying the monitoring parameters. It is versatile in function and excellent in performance.

The high-precision Vaporizer is designed with a stable concentration output, automatic compensation for pressure, temperature and flow rate. And it is available to choose two kinds of gas from Halothane, Enflurane, Isoflurane, and Sevoflurane, ensuring a successful anesthesia operation.

High-definition five-tube flowmeter (oxygen, nitrous oxide, and air), designed with stoppers for oxygen and nitrous oxide to control the output oxygen concentration.

Reliable pneumatic transmission system.

Economic and proper configuration of technologies, optional as required by the Customer.

Modularized design and upgrading. Upgrading is available as required by the Customer.

Main body High-strength engineering plastic rack, light,

beautiful and corrosion resistant

Scope of application adult, child
Gas source O2: 0.27~0.55MPa

N2O: 0.27~0.55MPa

Flow meter O2 : 0.1~1.0L/min   1.1~10L/min

N20: 0.1~1.0L/min   1.1~10L/min

Air : 0.1~10L/min

O2, N2O linkage and N2O Stopper When using nitrous oxide, oxygen concentration>25%;

When the oxygen pressure<0.2Kpa, the flow of nitrous oxide would be cut off.

Flow rate of rapid oxygen supply 25~75L/min
Low oxygen pressure alarm There will be sound alarm when the oxygen pressure < 0.2MPa
Vaporizer it has the function of automatic compensation based on pressure, temperature, and flow rate. The regulation range of evaporator concentration is 0~5 vol%. Among Halothane,Enflurane, Isoflurane and Sevoflurane, two can be chosen for application as required by the customer. And vaporizers that are imported with original packaging are also available.
Respiratory circuit  working mode: all-close, semi-close, semi-open

APL: 0.5~7 kPa

Respiratory Bellows bellows for adults, tidal volume range:0~1500 ml

bellows for children, tidal volume range:0~300 ml

anyone can be chosen for application as

required by the customer

Display mode High-definition 8.4” TFT color LCD screen display
Ventilation  mode IPPV, SIPPV, SIMV, PEEP, MANUAL,

SIGH, IMV, VCV, PCV

Ventilation parameters Tidal volume : 20~1500 ml

Rate :        1~99 bpm

SIMV rate :    2~20 bpm

I:E:           4:1~1:8

Inspiratory trigger pressure:-1.0~2.0 kPa

PEEP :        0~2.0 kPa

Pressure range: 1.0~6.0 kPa

SIGH :1.5 times the inspiratory time

(70-150 adjustable)

Inspiratory platform : 0~50%

Parameters for ventilation monitoring tidal volume, ventilation volume, IPPV rate, SIMV rate, total respiratory rate, I/E, peak pressure of airway, average pressure, pressure – time waveform, flow rate – time waveform,PEEP,inspiratory trigger pressure, Inspiratory platform, autonomous inspiratory rate, lung compliance, airway resistance, flow-volume loop, pressure-volume loop
Monitoring of oxygen concentration 21%~100%



Oxygen Concentration alarm upper limit setting range  21%~100%

low limit setting range    10%~80%

Airway pressure alarm upper limit setting range  0.3~6.0 kPa

low limit setting range     0.2~5.0 kPa

Per-minute ventilation volume alarm upper limit setting range   3.0~30L/min

low limit setting range   1.0~10L/min

Sustained high-pressure alarm it will give alarm when stress have consistently

been higher than 2.5 kPa

Suffocation alarm it will give sound and light alarm if there

is no tidal volume input for 15 seconds

Power alarm
Power  AC 220V±10%     50Hz±1Hz                             (UPS, Storage battery)
