• Obstetric Delivery Bed, Gynecology Bed, Examination Bed

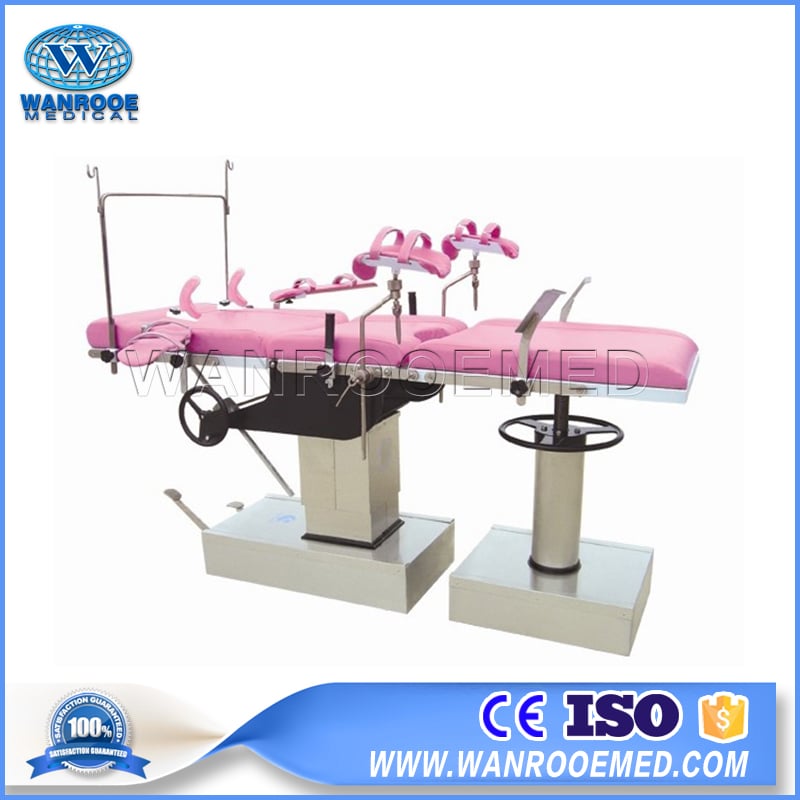

A-2002A Hospital Hydraulic Obstetric Surgical Gynecology Examination Delivery Bed

The hydraulic integrated obstetric bed is suitable for conducting parturient delivery, gynecological surgery, operative abortion, diagnosis and examinations etc.by medical unit.

  • Product Description
  • Technical Parameters
  • Video

A-2002A Gynecology Examination Delivery Bed Features:
1.The bed is designed for parturition and gynaecologyoperation.
2.It includes two parts: the bed and the legs.
3.The bed can be raised or lowered hydraulically by means of an oil pump.
4.The ascending and descending movements of the legs are controlled by the leading screw and operated by the handwheel.
Length: 1900mm
Width: 600mm
Height: 800-1050mm
Back Section Up ≥45°
Back Section Down ≥10°
Leg Section Up ≥90°
Basic Accessories:
Anaesthetic Screen: 1 set
Knee Crutch: 2 sets
Shoulder Rest: 2 sets
Step Foot: 2 sets
Arm Support: 2 sets
Cushion: 1 set
Grid hand: 2 sets
Packing: 166*87*105cm, G.W.: 220kg, N.W.: 180kg.
Note: For Model A-2002A, the cover and base are made of stainless steel.
