F3 7 Inch Touch Screen Patient Monitoring System Patient Monitor For Ambulance

Patient monitors measure, record, distribute and display combinations of biometric values such as heart rate, SPO2, blood pressure, temperature and more. High-capability, multi-function monitors are typically used in hospitals and clinics to ensure a high-level of quality patient care. Portable patient monitors are designed to be compact and power-efficient. This allows them to be used in remote areas or by paramedics to aid diagnosis in the field, enable monitoring and transmitting data to health care providers in other locations.

  • Product Description
  • Technical Parameters
  • Video

Touch Screen Patient Monitoring System Patient Monitor For Ambulance Description:

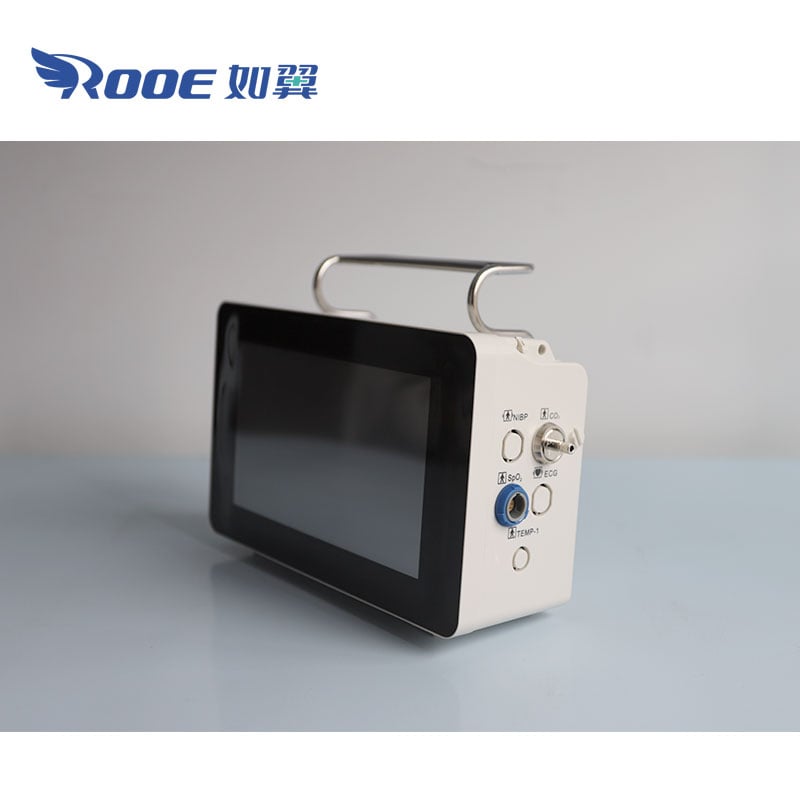

The Touch Screen Patient Monitor comes with a 7-inch high brightness color LED display and a replaceable battery for easy patient mobility. Patient Monitoring System built-in memory 720 hours patient data sheet and 1000 sets of NIBP outcome review. Advanced digital processing technology provides accurate measurements in low perfusion and exercise situations. The Ambulance Monitor comes with an audible and visual alarm. Infrared thermometers allow clinicians to use non-invasive infrared technology to obtain the patient’s temperature and thus detect heat on the skin surface. Patient Monitor Wall Mount Optional HDMI output for easy viewing from a distance.

Touch Screen Patient Monitoring System Patient Monitor For Ambulance Features:

Technical Parameters:
Display :– 7Inch LED TFT,
Battery Backup:– 2-3 Hours
Alarm
– Level: Low, medium and high
– Indication: Auditory and visual
– Alarm volume adjustable
– Alarm pause time: 1min, 2min
– Parameter alarm type: Latch/ Unlatch
Input Device
– Touch screen (standard)
– Touch pen (standard)
Heart Rate – Measure range:
Adult: 0bpm; 10 ~ 300 bpm
Neo/Ped: 0bpm; 10 ~ 350 bpm
ECG
– Lead mode: 3/5 Leads, I, II, III or I, II, III, AVR, AVL,AVF, V
Trend & Reviewing
– Trend: 2160 hours
– ARR events: 128 groups of ARR events and associated waveform
– NIBP measurement reviewing: 2000 groups
– Waveform review: 2 hours
– Alarm event: 2000 groups of parameter alarms events and associated parameter
NIBP
– Method: Oscillometric
– Measure mode: Manual, Auto, STAT

touch screen patient monitor,patient monitoring system,patient monitor for ambulance,patient monitor wall mount,ambulance monitor

Configuration
Standard Config.
Config. A SpO2, Pulse Rate
Config. B NIBP
Config. C SpO2, Pulse Rate, NIBP
Config. D NIBP, Temperature
Config. E SpO2, Pulse Rate, Temperature
Config. F SpO2, Pulse Rate, NIBP, Temperature
Config. G SpO2, Pulse Rate, NIBP, ECG
Config. H SpO2, Pulse Rate, Respiration, Mainstream EtCO2
Config. I SpO2, Pulse Rate, NIBP, Respiration, Mainstream EtCO2
Config. J SpO2, Pulse Rate, NIBP, ECG, Temperature, Respiration
Optional Config. Nellcor SpO2, Masimo SpO2, SunTech NIBP, Infrared Thermometry
Optional Accessories Printer, HDMI Output, Wall-mouting, Trolley, Bed Hanger,
Neo /Ped Accessories,  Central Monitoring Station
