BAH502 5 Function Two Crank Hospital Bed Equipment With Hydraulic Lift

With prosperous industry practice, our entity has gained huge appreciation in the market by presenting Hydraulic Hospital Bed to our respected patrons. Hydraulic medical bed is powered by hydraulic pressure.

  • Product Description
  • Technical Parameters
  • Video

5 Function Two Crank Hospital Bed Equipment With Hydraulic Lift Description:

The two crank hospital bed is designed for the convenience of patients, and the height of the bed can be adjusted for different conditions. It is designed with all the needs and comfort of the patient in mind. These 5 function hospital bed equipment help to provide comfort to patients in long-term hospital stays.

Patients can lower and raise the height of the bed on different occasions according to their needs. It ensures flexibility for patients who are troubled by sitting at the same height and position all day. These beds can reduce costs and be patient-centered, which is a great benefit for them. Our manual adjustable bed is affordable, so it won’t be too expensive for you. These hydraulic lift hospital beds meet the requirements of the hospital environment.

two crank hospital bed,5 function hospital bed,manual adjustable bed,hospital bed equipment,hydraulic lift hospital bed

5 Function Two Crank Hospital Bed Equipment With Hydraulic Lift Features:

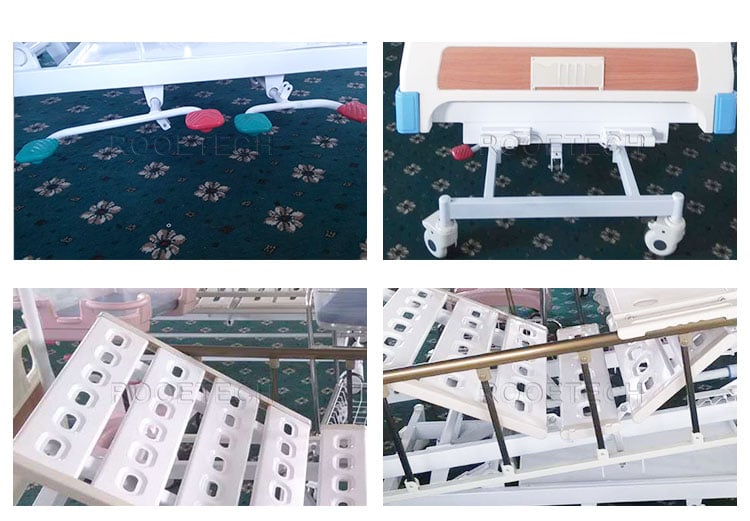

1. Bed frame made of perforated steel, epoxy powder coating and baking paint, made of low carbon steel ERW rectangular pipe.

2. Removable ABS headboard/footboard with plastic patient business card.

3. The 6-bar folding guardrail is made of aluminum alloy material.

4. With the super smooth crank mechanism mechanical operation to adjust the back lift, knee lift.

5. Side hydraulic pedals control the overall bed lift and Trendlenbo and anti-Trendlenbo positions.

6. Four φ125mm silence casters with independent locks.





Specification
Model BAH502
Measure
Length: 2150mm
Width: 950mm
Bed Base Height Range
Maximum Height 750mm
Minimum Height 450mm
Technical Features
Backrest max upward angle 0-70°
Knee section up: 0-40°
Trebdelenburg 0°~≥12°
Anti-Trebdelenburg 0°~≥12°
Loading Capacity 250kg
Optional Extended bed frame
Matress
IV Pole
Weighing system
X-ray bed board
Oxygen cylinder holder
