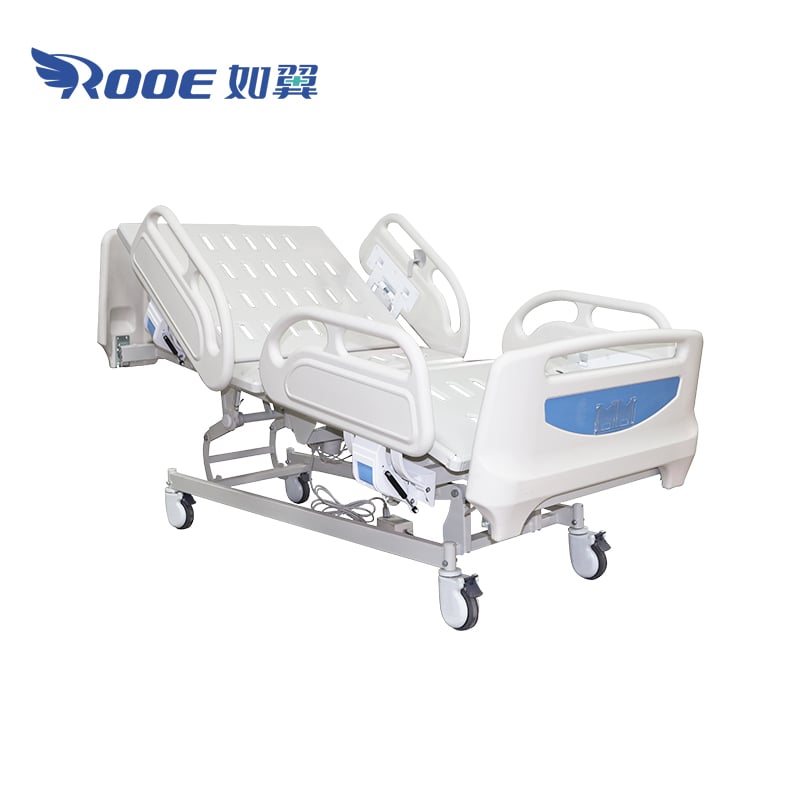

Three Function Electric care bed have functions as follow: whole bed body lift up and down with balance, backside lifts up and down, leg bends and extends, legs lift up and down, etc. By adjusting the bed body’s lifting, users enables the bed to meet different nursing requirements; by adjusting the backside and leg, user makes himself, herself sitting or lying comfortably to feel relax and ease.
This is an electric, manual integrated icu electric bed, providing back and knee, overall up and down functions. Due to the adjustable height of its hospital electric bed, it can dock with different diagnostic instruments, making patient transport more convenient and efficient.
3 function hospital bed is more expensive, suitable for advanced care wards or patients who need frequent examinations. Of course, many nursing homes buy these types of beds. In addition, the 3 crank electric hospital bed is a self-contained caster-locking system. Once the nurse presses the caster brake pedal, the entire medical 3 crank hospital bed will not move. It is suitable for the elderly or those with limited mobility.
1. 4 sections of bed surface, made of steel punching
2. Bed board with soft connection; make the bending of the bed board more smooth to let the patient feel more comfortable when lying in the bed.
2. When energized, use the manual remote control to control the position of the bed. Use manual crank to adjust the whole bed when power is off.
3. Bed tail with three cranks, the main function is backrest adjustment, leg adjustment and height adjustment.
4. With three high quality motor control bed.
5. Four five-inch durable casters for improved maneuverability and secure locking
6. 6-bars aluminum alloy side rails metal is strong and impact resistant.
7. PP head/foot board, removable.
Specification | |
Model | BAE303MA |
Measure | |
Length: | 1960-2150mm |
Width: | 830-980mm |
Bed Base Height Range | |
Maximum Height | 700mm |
Minimum Height | 450mm |
Technical Features | |
Backrest max upward angle | 0-75° |
Footrest max upward angle: | 0-40° |
Loading Capacity | 250kg |
Power supply | 220VAC or 110VAC Frequency: 50-60HZ |
Power Plug:EU type standard if other type, confirm each order | |
Optional | Extended bed frame |
Matress | |
IV Pole | |
Weighing system | |
X-ray bed board | |
Oxygen cylinder holder |
