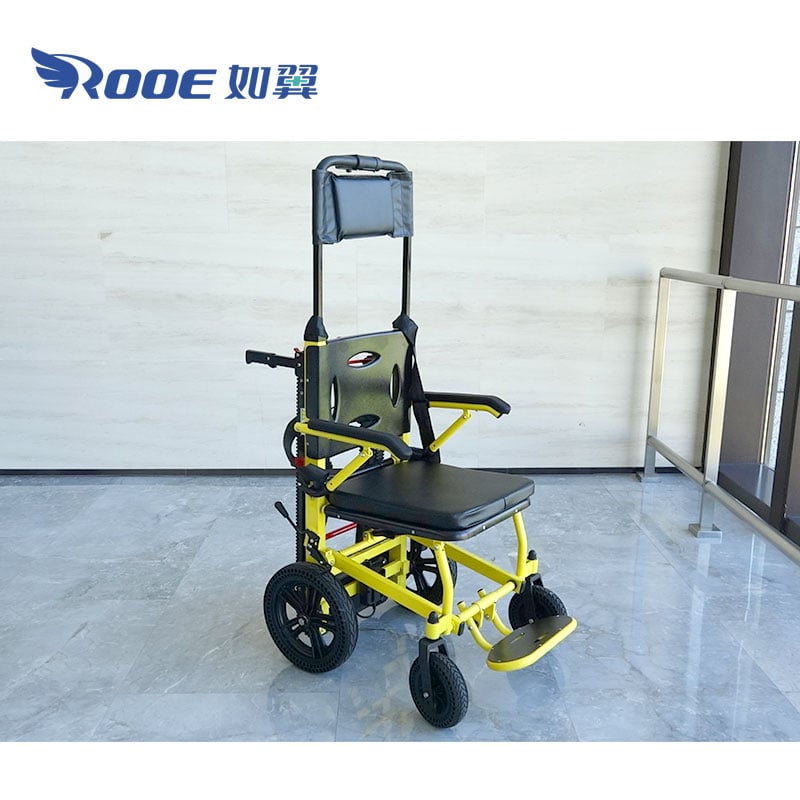

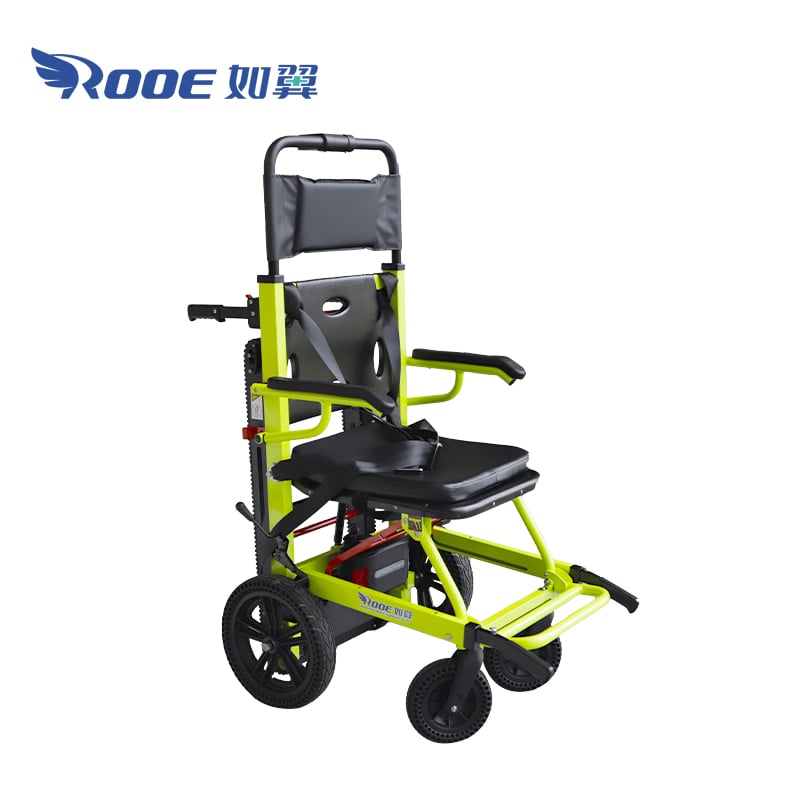

EA-6FPN Plus Electric Stair Chair Lift Elderly Big Wheel Motorized Climbing Wheelchair

Electric staircase stretcher is an ideal home and emergency evacuation equipment; with rechargeable lithium battery and electronic control motor; it can transport patients up and down stairs; feature effort and safe and rapid. The electric stairs are widely used in hospitals, airports, shopping malls, emergency centers, ordinary old high-rise residential buildings.

  • Product Description
  • Technical Parameters
  • Video

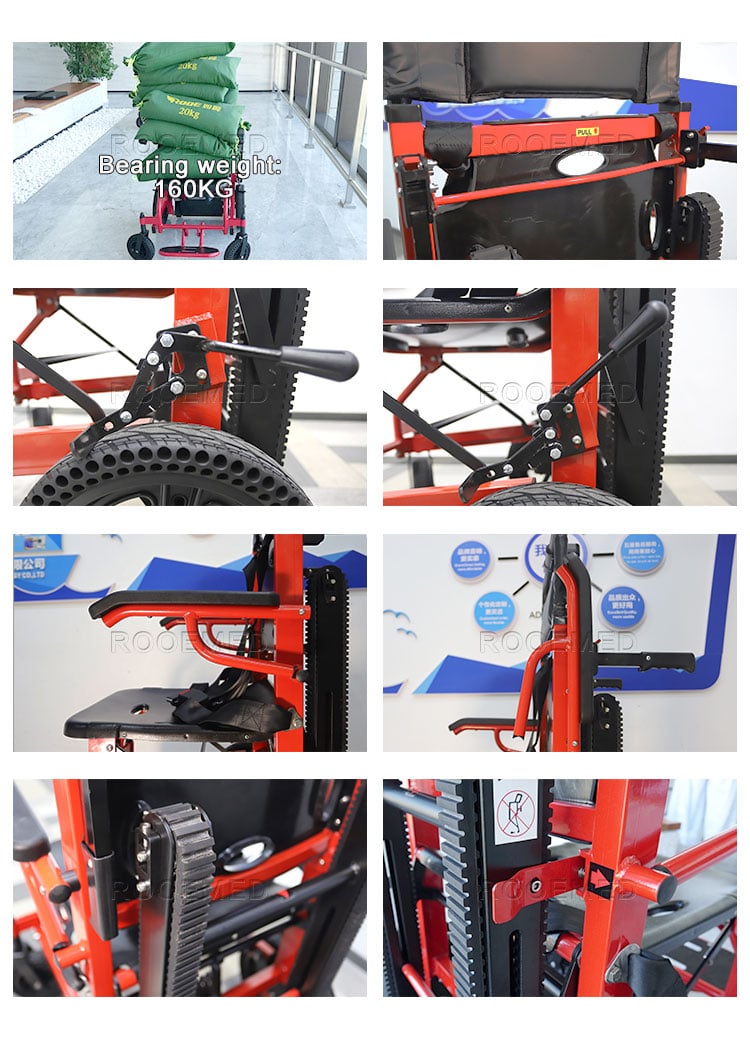

Electric Stair Chair Lift Elderly Big Wheel Motorized Climbing Wheelchair Features:

1.Aluminum alloy material, foldable, compact structure, light weight.
2. Advanced electric climbing medical evacuation staircase chair parked on the stairs without sliding, not falling, very safe and reliable.
3. Easy to operate, it can be smoothly up and down along the track.

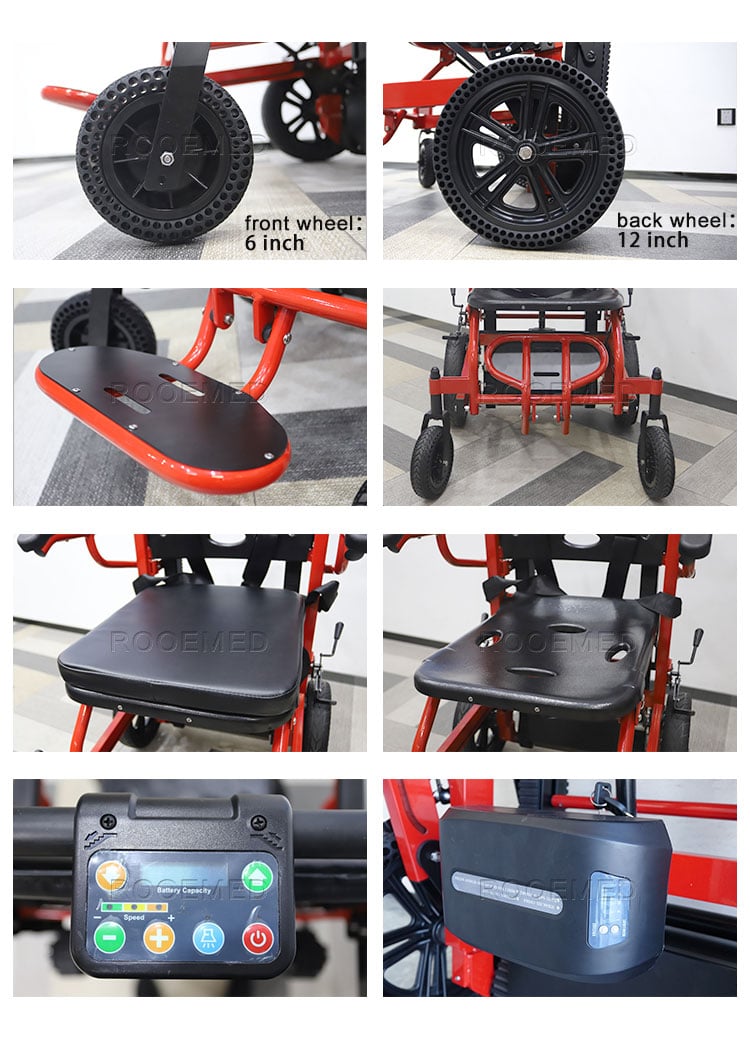

4. Wheelchair has 4 wear-resistant honeycomb wheel, front wheel 6 inch, rear wheel 12 inch, shock absorption, stable, and can be used as a wheelchair on the ground.
5. Double-side brake design, the parking brakes are stable.
6. Horizontal stripes crawler, natural rubber material, grip, not slippery, strong wear.
7. Truck lock, one pulls. The track is turned on and folded by the gas spring, holding the handle, single foot step, folding the track.
8.The wheelchair can be lifted and folded manually by using the receiving bar.

electric stair chair lift elderly,electric wheelchair,motorized stair chair,big wheel wheelchair,motorized climbing wheelchair
9. Highly adjustable curved armrest design, convenient for occupants to catch the arm. Rear folding handle, push more favorable.
10. The three-stop can be adjusted, and the back and lower height is 110 to 170 cm.
11. Thickened cushion and leather back, wear-resistant, easy to remove, easy to clean.
12. Cross-type seat belt, metal buckle belt, more guarantees to the occupant.
13. Foldable foot pedal, convenient and safe, effectively prevent users from accidentally fall.
14. The internal circuits of the pipeline, waterproof, long life, no noise of motor operation.
15. Maximum load: 160 kg
16. Intelligent button screen, power switch, three-speed speed control, power display, lighting button
17. Electric staircase chairs are widely used in emergency evacuation places such as nursing homes, school security, hospitals, and hotels.
18. Endurance Lithium 24V battery, convenient charging, lock. The battery installation location is in line with international standards, not close to the body, so that users feel more comfortable. Removable battery.

electric stair chair lift elderly,electric wheelchair,motorized stair chair,big wheel wheelchair,motorized climbing wheelchair
The difference between EA-6FPN Plus and EA-6FPN Pro
1.Both models have 24V motor, only Pro has 36V motor option
2. EA-6FPN Plus is manual closing and EA-6FPN Pro is one-click closing
Optional:
Pillow, dust cover, wall bracket
Accessories:
Vest belt, lithium battery, wrench set, sponge pad
There are different frames of frames and seat colors to adapt to different environments.



MODEL EA-6FPN Plus
UN-FOLD SIZE(L*W*H) 110~160*62*60cm
FOLDED SIZE(L*W*H) 114*62*60cm
N.W 40kg
LOAD-BEARING 160kg
Using Time of Full Charge: 2 hours

(up and down five layer building stairs 15 times)

Repeated Charging Times: 500 times
Battery Life 3~5 YEARS
Motor 24V,200W,High Quality, no noise
Track: High wear-resistant materials, life time 3~5 years
Speed About 45 steps per minute
PACKING 1PC/CTN
